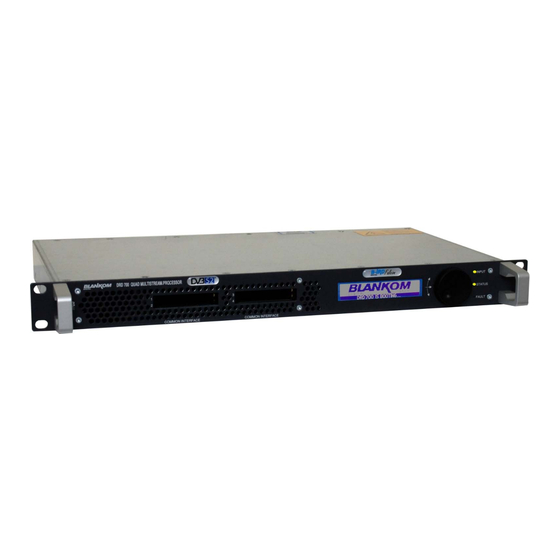

Blankom DRD 700 B-IRD Falcon Instruction Manual

Quad multistream processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Quad Multistream Processor
Instruction Manual
Blankom Digital GmbH
TecCenter
31162 Bad Salzdetfurth
Germany
Phone +49 (0) 5063 / 2711 - 0
Fax
+49 (0) 5063 / 2711 - 60
E-Mail
info@blankom-digital.de
Web
www.blankom-digital.de
BLANKOM Digital GmbH
TecCenter
DRD 700 Quad Multistream Processor
31162 Bad Salzdetfurth
Germany
(548D13500002-Rev-D 08/11)
DRD 700
Tel. +49 (0) 5063 / 2711-0
Fax +49 (0) 5063 / 2711-60
www.blankom-digital.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRD 700 B-IRD Falcon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blankom DRD 700 B-IRD Falcon

Summary of Contents for Blankom DRD 700 B-IRD Falcon

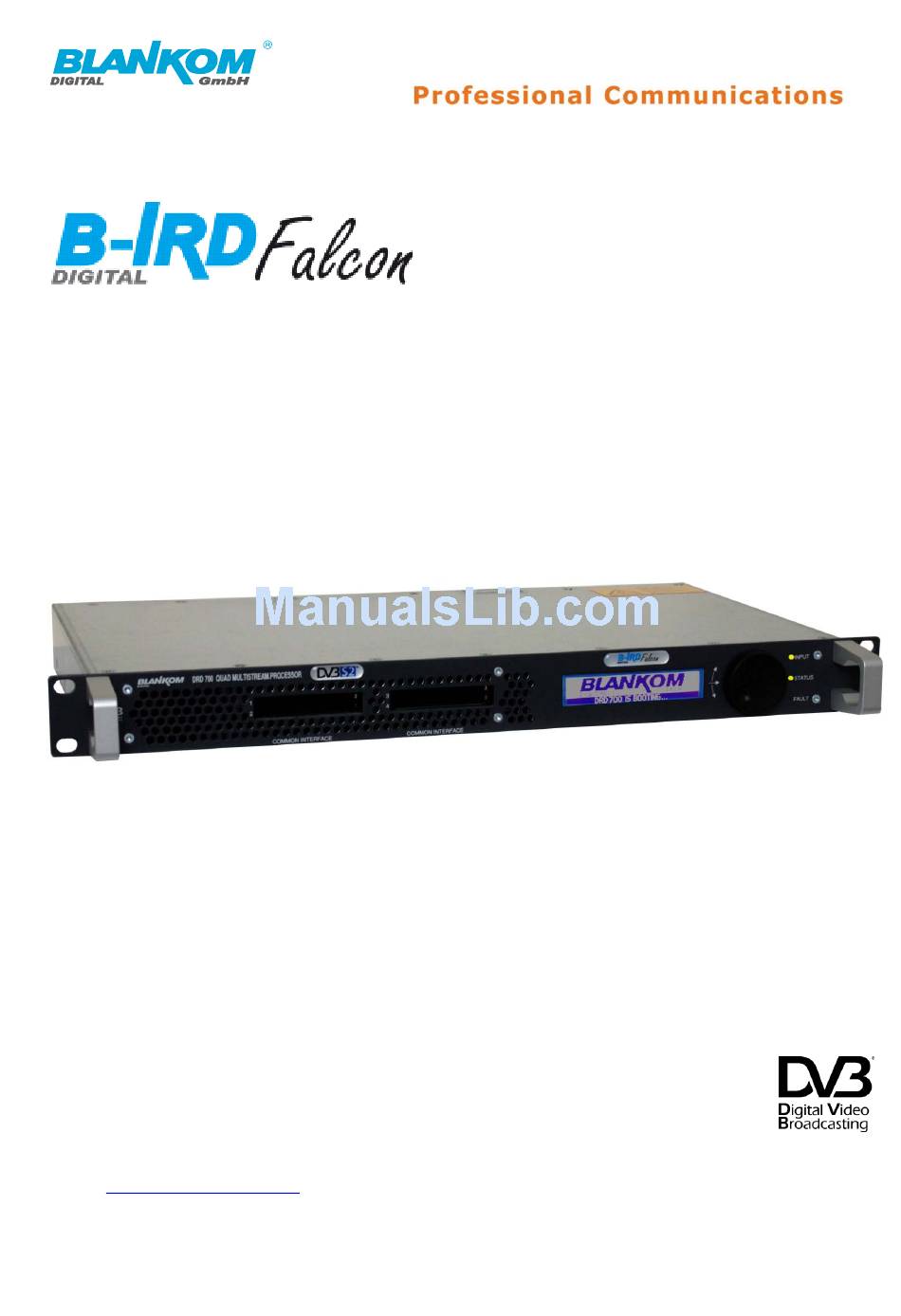

  • Page 1 DRD 700 Quad Multistream Processor Instruction Manual Blankom Digital GmbH TecCenter 31162 Bad Salzdetfurth Germany Phone +49 (0) 5063 / 2711 - 0 +49 (0) 5063 / 2711 - 60 E-Mail info@blankom-digital.de www.blankom-digital.de BLANKOM Digital GmbH TecCenter 31162 Bad Salzdetfurth Germany Tel.

  • Page 2: Important Notes

    (such as translation, transformation or adaptation) without the written permission from BLANKOM Digital GmbH. BLANKOM Digital GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it shall not be obligatory for BLANKOM Digital GmbH to provide notification of such revision or change.

  • Page 3: Table Of Contents

      ..................................  1 9 SER  CCOUNTS    ....................................  2 0 PDATE    ....................................  2 1 ERSION     ....................................  2 1 ICENSE   CONNECTIONS  ................................ 22   TECHNICAL DATA  ................................ 23   HISTORY .................................. 25   Rev. D www.blankom-digital.de Page 3 (26)

  • Page 4: General Description

    DVB-S/DVB-S2 Frontends (with LNB supply and 22kHz switch signal) design, SCPC filter  DVB-S/DVB-S2 Twin-16APSK-/32APSK-Frontends, SCPC filter  DVB-T/C Frontend  DVB-T/T2 Frontend  IP Frontend (Gigabit-Ethernet) with electric / optical SFP module  Service filter, PID filter  NDS CA Decryption Page 4 (26) www.blankom-digital.de Rev. D...

  • Page 5: Input

    Redundancy for GbE-SFP Interface (swichting criteria link-loss, sync-loss) OPD135-60 Processing Service- and PID-Filtering and multiplexing of max. 4 new transport streams according DVB APA135-59 NDS CA Decryption Due to the NDS Certification procedure NDS decryption is an option APA135-56 Rev. D www.blankom-digital.de Page 5 (26)

  • Page 6: Ordering Codes

    (top / bottom) Colour Function Marking Green Input signal available INPUT Input signal missing Orange Invalid input signal Green Green flashing during SW update/download STATUS Other state indications depending from frontend Orange FAULT Internal hardware fault Page 6 (26) www.blankom-digital.de Rev. D...

  • Page 7: Control With Display And Navigation Wheel

    Attention: Preset resets the IP addresses to Reset/Preset default Display of the device type, SW versions and serial no. Version Configuration contrast of display LCD Contrast IP address (192.168.0.200) Subnet mask (255.255.255.000) Control Gateway address (192.168.0.001) MAC address Display Rev. D www.blankom-digital.de Page 7 (26)

  • Page 8: Control With Web Server

    All the configuration entries are password-protected. Thus, the following login window appears after you click a configuration menu item: The default login settings are: Name: admin Password: Blankom Page 8 (26) www.blankom-digital.de Rev. D...

  • Page 9: Input

    IP address and the port channel of the source must match. Multicast is possible by selecting the corresponding IP addresses. Addresses in the range 225.x.x.x to 232.x.x.x and 234.x.x.x to 238.x.x.x are reserved for Multicast transfer (one source, multiple recipients). Rev. D www.blankom-digital.de Page 9 (26)

  • Page 10: Input-Dvb-S/S2 (Option)

    By entering the transport stream ID (SCPC TSID) it is ensured that the DRD 700 tunes on the selected transport stream. The TSID must be entered in hexa-decimal format. Page 10 (26) www.blankom-digital.de Rev. D...

  • Page 11: Common Interface

    Set. The Reset button allows a targeted resetting of one CAM. A click on CAM MMI gives the access to more information about CAM and Smart Card via an additional menu. Rev. D www.blankom-digital.de Page 11 (26)

  • Page 12: Biss Decryption

    BISS Decryption with DRD700 is realized with Alphacrypt Classic Pro. Select the appropriate slot > “CAM MMI” > “5” for Module Options > “5” for BISS Settings: “3” and ENTER for BISS decryption ON, and “1” to edit the service IDs. Page 12 (26) www.blankom-digital.de Rev. D...
  • Page 13 Enter the service-ID in decimal format and the 6 SW bytes (decimal). After successful entering the settings, go back to the service list (Common Interface Slot x) and set the CA Decryption of the appropriate service to ON. Rev. D www.blankom-digital.de Page 13 (26)

  • Page 14: Mpts Output

    Multicast is possible by selecting the adequate multicast destination IP address. IP addresses in the range of 225.x.x.x to 232.x.x.x and 234.x.x.x to 238.x.x.x are multicast addresses. The receiver must be set to the corresponding multicast address. The current software version allows up to 28 SPTS streams. Page 14 (26) www.blankom-digital.de Rev. D...

  • Page 15: Lan

    Ethernet Ports (SFP, data port) are made under LAN. Data device 1 is configured as standard. Data device 2 is an option for redundancy and only configurable if the port has a licence. If a SFP module is inserted additional information about vendor and status of the SFP are shown. Rev. D www.blankom-digital.de Page 15 (26)

  • Page 16: Lan-Snmp

    Alarm Severity enables the user to activate SNMP traps for different types of events. Under SNMP-MIBs the MIBs of the DRD 700 can be downloaded out of the device. Page 16 (26) www.blankom-digital.de Rev. D...

  • Page 17: Lan-Telnet (Option)

    While Factory setting via the web browser or SNMP the IP address is not reset to the factory setting! While Factory setting via the front panel, the IP address is reset to the factory setting (192.168.0.200 and 192.168.1.200/192.168.1.201). Rev. D www.blankom-digital.de Page 17 (26)
  • Page 18 NTP-Server ½: IP addresses of NTP-Server 1 and 2 NTP Sync Intervall: time interval to synchronise the internal clock with time of the NTP-server Daylight Saving Time: summer-/wintertime (18urope only) Sync Threshold: maximum allowed deviation to synchronize the internal clock Page 18 (26) www.blankom-digital.de Rev. D...

  • Page 19: User Accounts

    Access level allows to define four different user rights for selected WEB sites. Admin is able to choose between four different classes of user rights for different accounts. The user rights and accounts can be assigned by the Admin only. Rev. D www.blankom-digital.de Page 19 (26)

  • Page 20: Update

     Click Get Configuration  Save the configuration file „DRD700_xxxxxxx.dat“ and  send it via email to Blankom Digital (service@blankom-digital.de). After receiving a written Order Blankom Digital will  Create a Key file „DRD700-Option-Key-SerNr_xxxxxxx.dat“ and  send it back via email to the customer ...
  • Page 21 For activating another software option, select “Get configuration” under the menu item “Update”. The file that is read out must be sent to Blankom Digital along with the purchase order for the option. A file that is delivered by Blankom Digital having the corresponding options is then loaded in DRD 700 via “Download”.

  • Page 22: Connections

    Coaxial connector, 75 Ohm 2 x ASI In, ½ Coaxial connector, 75 Ohm RF-Input ½, ¾ Depending on the frontend SFP slot 1 GbE (SFP) SFP module SFP slot 2 GbE (SFP) SFP module (Option) Page 22 (26) www.blankom-digital.de Rev. D...

  • Page 23: Technical Data

    16-, 32-, 64-, 128-, 256-QAM Input frequency 47 MHz to 862 MHz Input level -60 dBm to -10 dBm Symbol rate 2 Msym/s … 7 Msym/s Bandwidth 2 MHz, 4 MHz, 7 MHz, 8 MHz Rev. D www.blankom-digital.de Page 23 (26)
  • Page 24 Potential-free relay contact General Power consumption 25 Watt (without LNB powering) Power supply 100V to 240 V Dimensions 482 x 44 x 260 mm (19” 1RU) Weight 4.7 kg EN 50083-2 Safety EN 60950-1 Page 24 (26) www.blankom-digital.de Rev. D...

  • Page 25: History

    DRD 700 Quad Multistream Processor History Revision Modifications Name Date First Release Haars 21.03.2011 Editorial changes, SPTS streaming Höper 22.07.2011 BISS Decryption described. Haars 12.08.2011 Editorial changes Haars 23.08.2011 Rev. D www.blankom-digital.de Page 25 (26)
  • Page 26 DRD 700 Quad Multistream Processor Blankom Digital GmbH TecCenter 31162 Bad Salzdetfurth Germany Phone +49 (0) 5063 / 2711 - 0 +49 (0) 5063 / 2711 - 60 E-Mail info@blankom-digital.de www.blankom-digital.de Page 26 (26) www.blankom-digital.de Rev. D...
