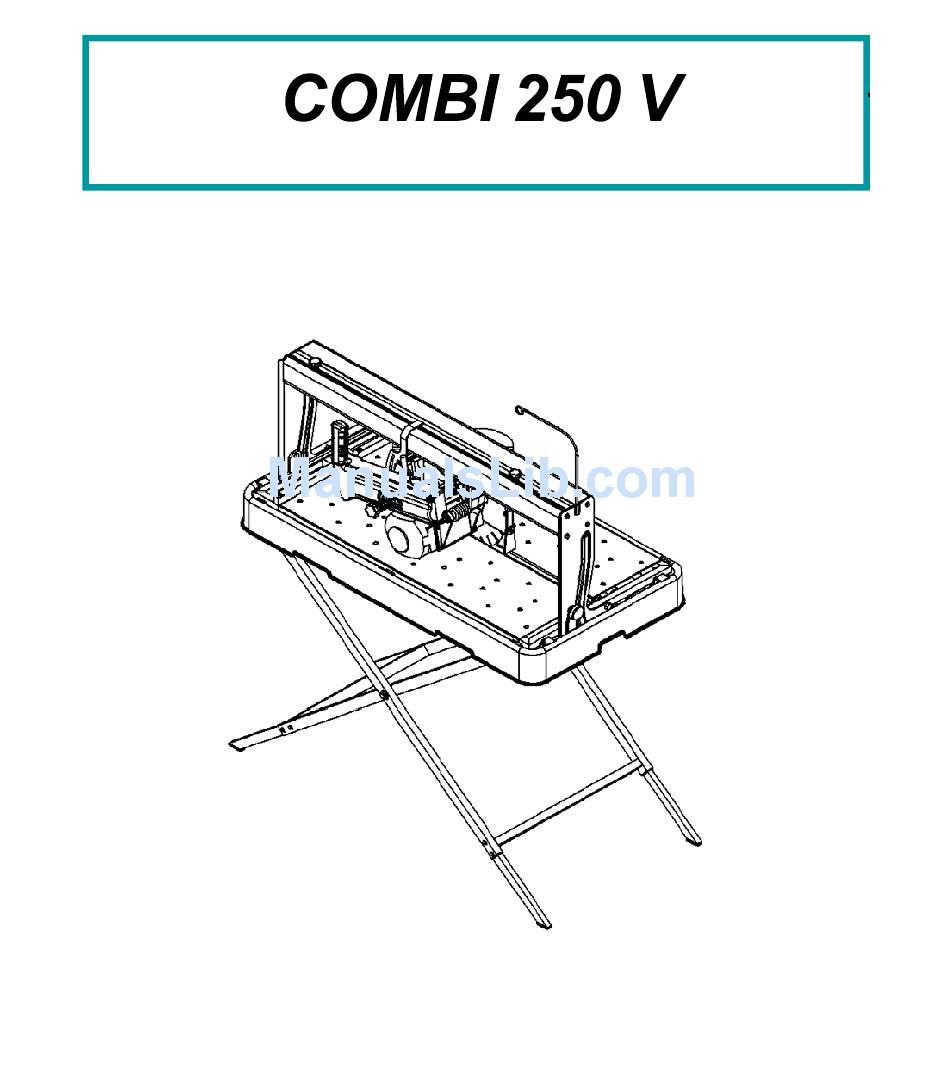

IMER COMBI 250 V Operating, Maintenance, Spare Parts Manual

Sawing machine

Hide thumbs Also See for COMBI 250 V:

Download this manual

SAWING MACHINE

OPERATING, MAINTENANCE, SPARE PARTS

MANUAL

Need help?

Do you have a question about the COMBI 250 V and is the answer not in the manual?

Page 1 SAWING MACHINE OPERATING, MAINTENANCE, SPARE PARTS MANUAL...
Page 2: Spare Parts
IMER U.S.A. Inc. COMBI 250 V 18. SPARE PARTS :All orders for spare parts must indicate the following: 1 - Type of machine.2 - Part number and position number of each part.3 - Serial number and year of manufacture reported on the machine's identification plate.
Page 3 IMER U.S.A. Inc. COMBI 250 V...
Page 4 IMER U.S.A. Inc. COMBI 250 V TAV. 2 ASSEMBLY OF MOTOR - Ref. Code Description Notes 3210042 COVER 3210043 SPACER BRACKET 3201339 SCREW 5933 M8x25 3210238 INNER FLANGE 3210046 OUTER FLANGE 3210053 M12 SX 3210218 MOTOR 115V-6OHz 3210038 ENGINE SUPPORT...
Page 5 IMER U.S.A. Inc. COMBI 250 V COD.3210216 TAV. 4 - ELECTRIC PANEL Ref. Code Description Notes 3210230 JUNCTION BOX 3210096 SCREW 5732 M8X60 3210112 CABLE CLAMP 3210120 SCREW 3210233 SWITCH 115V 3209340 LEAKAGE PROTECTION 3210089 TUBE 2284866 HANDWHEEL 2222460 SCREW...
Page 6 IMER U.S.A. Inc. COMBI 250 V COD .3210025 TAV. 5 - C AR R IAGE Ref. Code Description N otes 3210028 C ARRIAGE BLOCK 3210105 SCREW 3210627 RING 3207397 WHEEL ASSEMBLY 2222114 SCREW 3204945 BEARING 608 2RS1 3210029 BLAD E GUARD...
Page 7 IMER U.S.A. Inc. COMBI 250 V COD.3210080 TAV 6 - TRESTLE ELEMENT Ref. Code Description Notes 3210645 INTERNAL TRESTLE ELEMENT 3206205 TERMINAL 3207193 RIGHT RABBET 3207194 LEFT RABBET 2223924 AUTOBL. M8 2224204 WASHER 6593 8x24 3210641 EXTERNAL TRESTLE ELEMENT 1222030...
