KidKraft 17850A Assembly Instructions Manual

© 2010 KidKraft, LP
Please retain this information for future reference

HARDWARE

PARTS LIST

A. Cross Dowel
Bolt x 20 pcs
2 1/4 inches / 57 mm
B. Cross Dowel
Nut x 20 pcs
Allen Wrench
x 1 pc
The following tool
(not included) is required
for assembly:
®
Phillips screwdriver
A
A
1
A
A
B
B
CAUTION:
ADULT ASSEMBLY REQUIRED. Hardware contains
small screws with sharp points. Keep unassembled
parts out of the reach of small children.

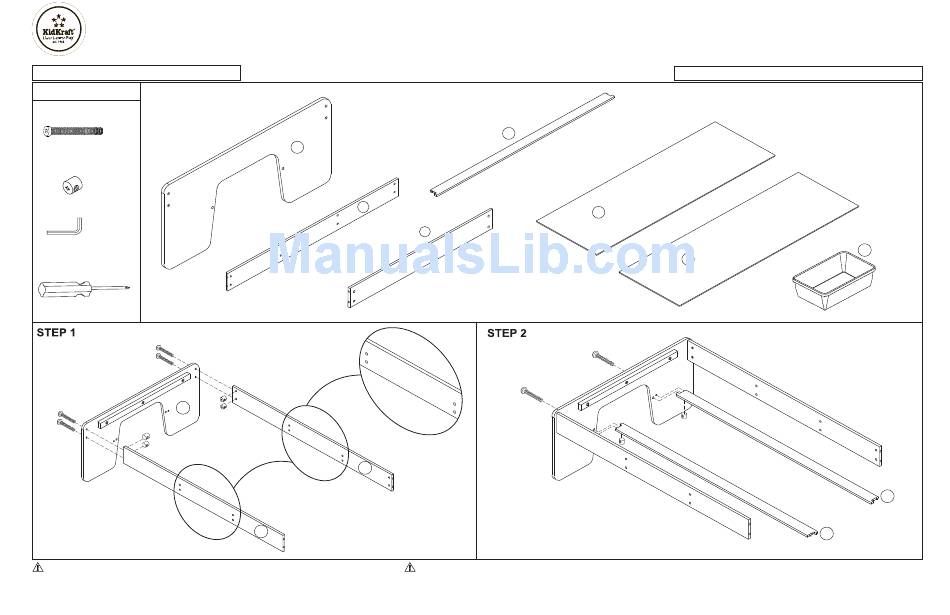

Waterfall Mountain Train Table and Set
Train Table Assembly Instructions
x 2
1
2
x 2
B
B
2
Be sure part 2 is positioned with the
2
center support holes closer to the
bottom of the table.
USE AND MAINTENANCE:
-Use on level surfaces only
-Please check assembly at regular intervals, and
frequently tighten hardware if necessary. If
maintenance is not carried out, the product could
cease to function properly.
3
x 2
4
x 2
A
WARNING:
CHOKING HAZARD. Small parts and sharp points, not suitable
for children under 3 years.
To order replacement parts, please visit www.kidkraft.com
5
6
A
B
B
Item # 17850A
7
x 3
3
3
Customer Service
1-800-933-0771
www.kidkraft.com
