Honeywell TP973 Installation Instructions Manual

Pneumatic thermostats
Hide thumbs


Advertisement

Quick Links

INSTALLATION
These instructions cover mounting the thermostat to a wall
without additional hardware. For replacement of existing
competitive and older Honeywell thermostats, use the
appropriate adapter kit and follow instructions packed
with kit.
Installation Tools
The following tools will be useful during calibration check
and cover installation:
Part No.
305965
Gage, 0 to 30 psi (0 to 207 kPa)
CCT729A
Gage Adapter for thermostats with
gage tap fitting
CCT735A
Thermostat Tool
305965

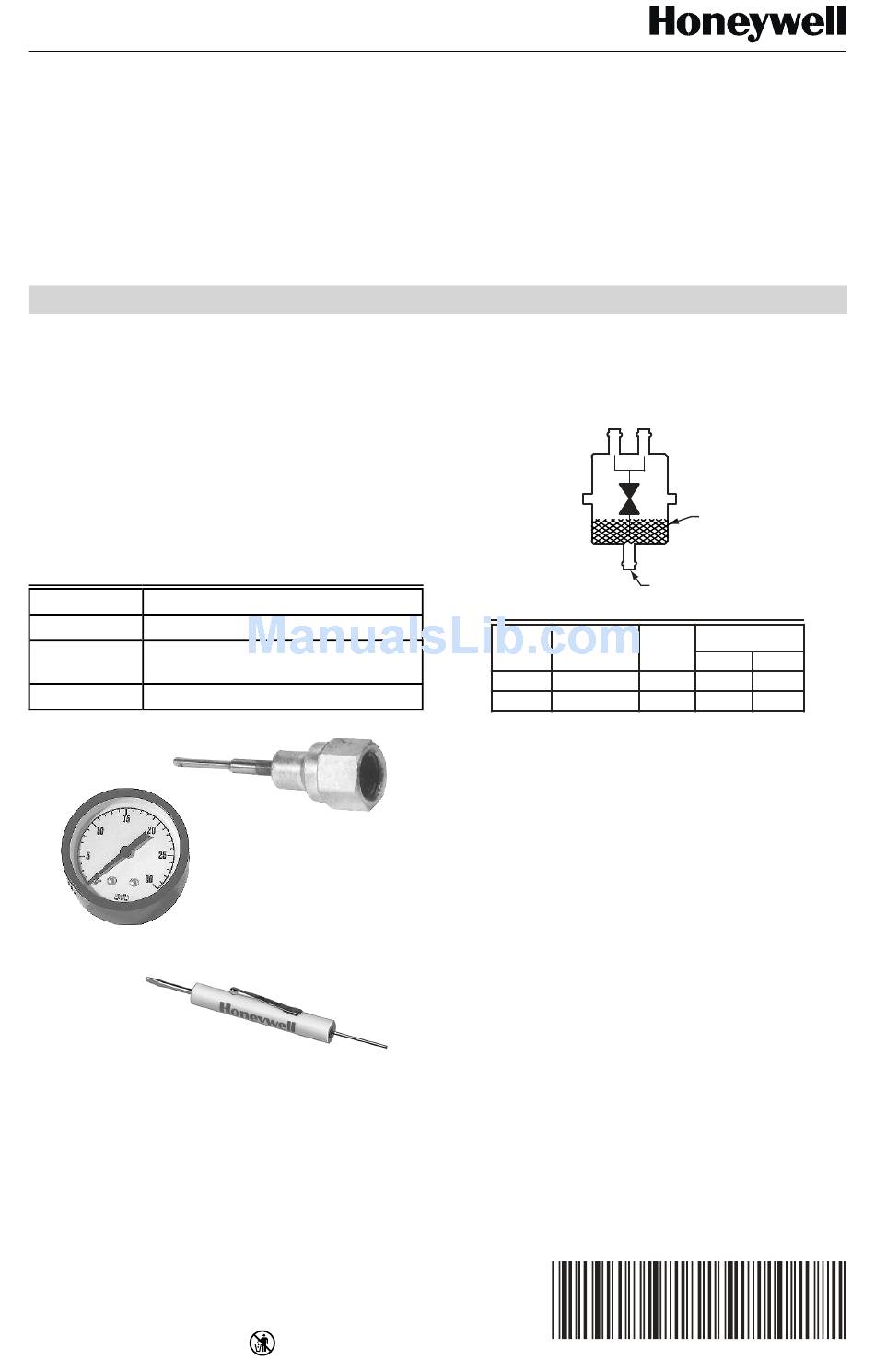

Fig. 1. Thermostat installation tools.
®U.S. Registered Trademark
Copyright © 1999 Honeywell Inc. •
Description (Fig. 1)
CCT729A
CCT735A
• All Rights Reserved
TP970-TP973 Pneumatic
Remote Restrictors
When remote restrictors are required, (one pipe TP973)
select from Figure 2.
SEE CHART FOR BARB SIZE
Part No.
14002913–
Size in inches
–001*
–004
* One Barb Cap 14003567-001 Furnished with Restrictor
Fig. 2. Remote restrictors.
Piping
Use 5/32-in. O.D. polyethylene tubing. Connect main and
branch lines to the backplate, connecting main to the left
side barb fitting as viewed from the back and branch to the
right side barb. Leave the third (lower) fitting open, except
for a three-pipe TP971 Thermostat.
Mounting
See Figure 3. If mounting on other than a hollow wall, see
Installation Instructions 95-5597.
Thermostats
INSTALLATION INSTRUCTIONS
A
B
FILTER
INLET
ALL INLET BARBS
1/4 IN. (6 MM)
REMOTE RESTRICTORS
Barb Size
in inches (MM)
Orifice
Body
Color
A
0.005
Blue
1/4 (6)
0.005
Blue
5/32 (4)
B
5/32 (4)
5/32 (4)
C3931-1
95-7478EF
