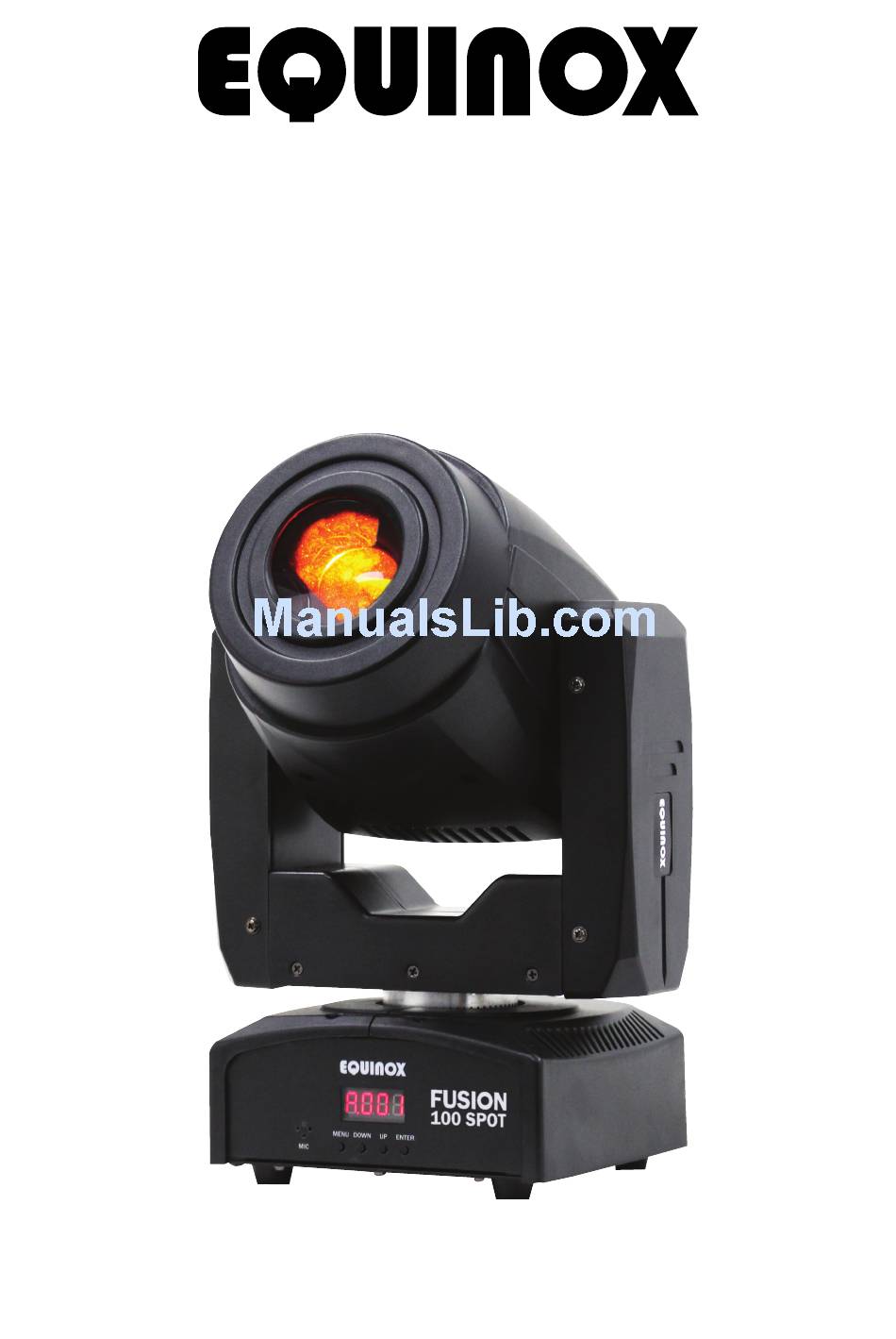

- Page 1 Fusion 100 Spot User Manual Order code: EQLED069...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Fusion 100 Spot User Manual... - Page 3 • 4 push button menu with LED display • 3 facet prism • IEC power input • Gobo wheel: 5 rotating gobos + open • 3-Pin XLR input/output • Colour wheel: 7 colours + open • Fan cooled • DMX channels: 5 or 15 selectable • Auto, sound active and master/slave modes Specifications 10° - Lux 52800 13200 5870 3300 2110 Power consumption Power supply 100~240V, 50/60Hz Fuse F2A 250V 10° Dimensions 330 x 198 x 146mm Weight 4.4kg Order code EQLED069 198mm 146mm www.prolight.co.uk Fusion 100 Spot User Manual...
-
Page 4: Technical Specifications
DOWN ENTER DMX INPUT DMX OUTPUT In the box: 1 x fixture, 1 x power cable, 01 - LED display 05 - DMX output socket 1 x hanging bracket, 02 - Function buttons 06 - IEC power input socket 1 x eye bolt 03 - Microphone 07 - Fuse F2A 250V & 1 x user manual 04 - DMX input socket 08 - Fan www.prolight.co.uk Fusion 100 Spot User Manual... -
Page 5: Master/Slave Mode
Reset factory settings o F F 0 0 0 Home position setting 1 2 0 A d t 0 0 0 1 2 0 0 0 0 r S t 1 2 0 Motor reset www.prolight.co.uk Fusion 100 Spot User Manual... - Page 6 008-047 LED Macro 1 048-087 LED Macro 2 088-127 LED Macro 3 128-167 LED Macro 4 168-207 LED Macro 5 208-247 LED Macro 6 248-255 Sound active 000-007 No function 008-058 Pan/tilt Macro 1 059-110 Pan/tilt Macro 2 111-162 Pan/tilt Macro 3 163-240 Pan/tilt Macro 4 241-255 Sound active 000-050 No function 051-100 High speed motor movement 151-200 Low speed motor movement 251-255 Reset (10 seconds) www.prolight.co.uk Fusion 100 Spot User Manual...
- Page 7 009-033 Gobo 1 051-100 High speed motor movement 034-058 Gobo 2 CH15 151-200 Low speed motor movement 059-083 Gobo 3 251-255 Reset (10 seconds) 084-108 Gobo 4 109-133 Gobo 5 PLEASE NOTE: 134-194 Rainbow effect (fast-slow) High speed motor movement is suitable for Reverse rainbow effect high energy shows. For smooth movement 195-255 (slow-fast) please select low speed motor movement. Gobos: Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 www.prolight.co.uk Fusion 100 Spot User Manual...
- Page 8 SH 3 – slow show 2 SH 4 – forward facing show Sound/sound sensitivity: Soun To turn the sound mode on or off, press the “UP” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To adjust the sound sensitivity, press the “UP” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between . Value: 000 - 100 (000 = low, 100 = high) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Fusion 100 Spot User Manual...
- Page 9 . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Pan/Tilt/Zoom home position: To access the pan/tilt/focus home position setting, press the “UP” button on the front of the unit to Ad t show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” dELE buttons to select (default home position), (pan home position), (tilt home position), (colour), (gobo), (focus home position), and (rotation home position). dELE When on , press the “ENTER” button and the units home positions will be reset to the factory default ( When on , press the “ENTER” button and use the “UP” and “DOWN” buttons to adjust the value between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Motor reset: To reset the motors, press the “UP” button on the front of the unit to show on the LED display. Press the “ENTER” button to perform the reset. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Fusion 100 Spot User Manual...
-
Page 10: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Fusion 100 Spot User Manual... -
Page 11: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Fusion 100 Spot User Manual... -
Page 12: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Fusion 100 Spot User Manual...
