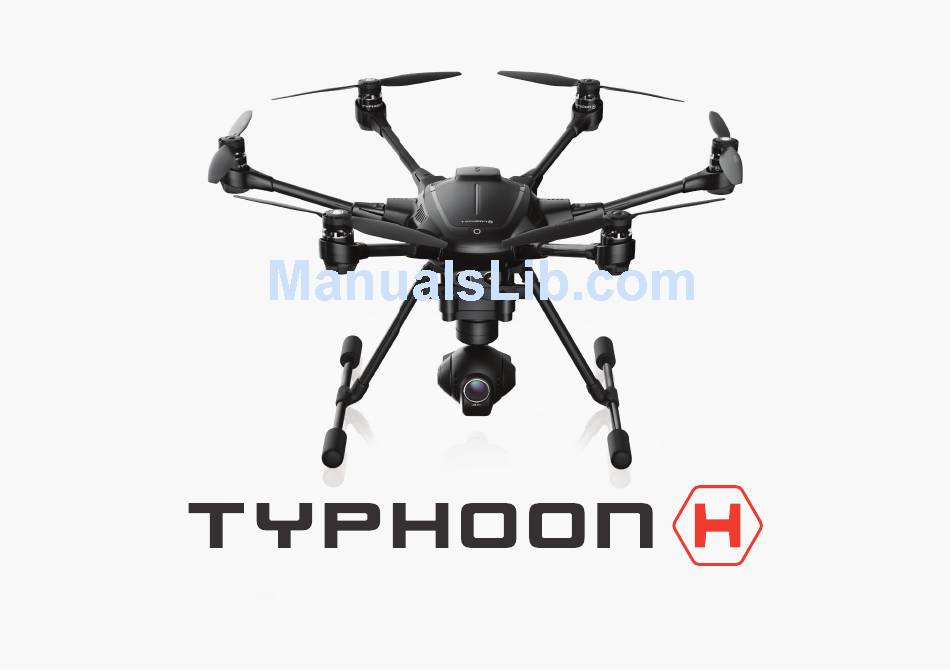

USER MANUAL RS-V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-V1.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TYPHOON RS-V1.2

Summary of Contents for TYPHOON RS-V1.2

  • Page 1 USER MANUAL RS-V1.2...

  • Page 2: Table Of Contents

    CHARGING GPS FUNCTIONALITY / DISABLING GPS ASSEMBLY CREATE A NEW MODEL POWERING ON / OFF - PREPARING THE ST16 STARTING/STOPPING THE MOTORS - BINDING THE TYPHOON H FLIGHT CONTROLS (SINGLE MODE) GUI INSTRUCTION - ST16 OVERVIEW CALIBRATION - FLYING - COMPASS CALIBRATION...

  • Page 3: Introduction

    Sonar Collision Avoidance, which features an upgrade path to the professional version with the purchase of a RealSense module, sold separately. Typhoon H with Intel ® RealSense ™ technology builds a 3D model of the world. The Intel ® RealSense ™ module provides high quality depth to the host system and enables the drone to make intelligent choices about creating routes around obstacles.

  • Page 4: Specifictations

    SPECIFICTATIONS TYPHOON H SPECIFICATIONS Flight Time Up to 25 min Maximum Rotation Rate 85°/s Size 20.5x18x12.2 in (520x457x310mm) Maximum Roll Angle 35° Takeoff Weight 69.8oz (1980g) Maximum Climbing Speed 11.2 MPH (5m/s) Battery 4S 14.8V LiPo Battery (POWER 4) Maximum Speed In Angle Mode 30.2 MPH (13.5m/s)

  • Page 5: Placement Before Takeoff

    (a minimum clearance of 100°). FOR THE ST16 GROUND STATION Be sure to place Typhoon H on a level and stable surface before powering You can charge the ST16 battery by ON the Ground Station and the aircraft.

  • Page 6: Powering On / Off

    ST16 Ground Station is in the Angle mode. When there is suitable data rates) from 16GB to 128GB. GPS signal for both the ST16 Ground Station and Typhoon H, or IPS for the aircraft, you can start the motors.

  • Page 7: Flight Controls (Single Mode)

    FLIGHT CONTROLS (SINGLE MODE) ST16 OVERVIEW Start/Stop Motors Button Gimbal Pan Mode (Follow Mode/Follow Pan Controllable Mode/Global Mode) Gimbal Tilt Mode (Angle Mode/ Velocity Mode) Gimbal Pan Control Rudder/Yaw Control (Mode 2 and Mode 1) Throttle/Altitude Control ( Mode 2) Elevator/pitch control (Mode 1) Take Still Photo Button Landing Gear Switch...
  • Page 8 LANDING - There are two ways to land Typhoon H: required when flying between 5000 feet and 8000 feet Above 1) Position Typhoon H above the area where you would like to land. Slowly lower the Mean Sea Level), and use the rabbit position for the highest left-hand stick to below the center position.

  • Page 9: Flight Modes

    Follow character will turn black. This means the Watch Me function is now enabled. TYPHOON H will turn its nose in accord with the direction it will fly first, then During Watch Me, you can trim the gimbal pan position by adjusting pan control knob on ST16.
  • Page 10 So if you push the right-hand stick to the left Typhoon H will bank toward the left side and move to the left. This means if the of the aircraft will be solid purple, and the GPS will display being searching on front/nose of Typhoon H is pointing away from you it will move to the left, but if the Remote control, which indicates IPS is activated automatically.
  • Page 11 CAUTION: With OBS. AOID switched off, you must be certain there are no obstacles in the ‘Return to Home’ flight path otherwise Typhoon H may come into contact with them and crash. While Typhoon H is in Home Mode you will have a limited amount of directional DESIRED ALTITUDE control.

  • Page 12: Additional Functions

    CCC: (Curve Cable Cam) Curve Cable Cam allows you to create an invisible any saved route by sliding the chosen one to the left. route for Typhoon H to fly along. Once the pilot sets the point, Typhoon H SAVE: Tap SAVE and the current route will be saved.
  • Page 13 CENTER: Press CENTER to set the current flight position of Typhoon H as the center of a circle. START: Press START, and slide the icon, push the aileron stick to the right or left, Typhoon H will fly around the circle center with distance between the Start point and the center point as the radius.

  • Page 14: Flight Controls (Team Mode)

    FLIGHT CONTROLS (TEAM MODE) PILOT WIZARD™ CAMERA OPERATOR ST16 Aircraft Mode LED Tilt Control Button-up (Disabled in team mode) Gimbal Tilt Slider in Tilt Angle Mode Wizard™ GPS LED Start / Stop Motors Button Tilt Mode: Aircraft Status LED Wizard™ Power Button -Angle/Velocity Turn / Fly to the Left Side Button Wizard™...

  • Page 15: Team Mode ( Two St16 Ground Stations )

    STEP 1) Switch on the original and the new ST16 Ground Stations first, and then BINDING TYPHOON WIZARD™ TO TYPHOON H power on Typhoon H. Do not touch it until the initialization completes. Wait a few STEP 1) Power on the ST16 Ground Station first, and then switch on Typhoon seconds for the camera to align and all system (RC and video link) connected.

  • Page 16: Wizard Button Combination Functions

    FLIGHT CONTROLS NOTICE: The safe distance between the Typhoon Wizard™ and the aircraft is Activate point-to-fly function Landing gear up/down 39 ft (12m). The Typhoon Wizard™ can be controlled in different positions. Direction - Long press - Short press PRESS PRESS Control Buttons function differently according to the positions of the Wizard™.

  • Page 17: Flight Modes

    Wizard™ vibrates once. Then the aircraft will fly to the direction the Typhoon Wizard™ points. The closer the Typhoon Wizard™ is tilted towards 0°, the further the aircraft will fly away from the IMPORTANT NOTE: In the team mode, the gimbal camera is controlled by the ST16 pilot （refer to the orange flight track below）.

  • Page 18: Camera Controls

    In this mode, the aircraft will move in the direction the Typhoon Wizard™ is controlled relative to the front/nose of the aircraft. The aircraft has no function of Follow Me or Watch Me.

  • Page 19: Team Mode

    There is a gimbal pan mode switch on ST16---S2. When the switch position is up, the gimbal camera is in Follow Mode. The pan control of the gimbal camera is now disabled. The gimbal camera will adjust its Model: Typhoon H welcome,Pilot 12:27 AM pan direction according to the aircraft ’s movements.

  • Page 20: Gps Functionality / Disabling Gps

    Lock parameter at that time will be locked. If the Typhoon loses GPS signal/lock while flying high in the sky it can In the [ ]menu, the exposure or shutter speed and iso can be adjust- only be flown in Angle (Pilot) Mode, Smart Mode, OBS AVOID and ed manually or automatically.

  • Page 21: Create A New Model

    GUI INSTRUCTION ‘fly aways’. IMPORTANT NOTE: Every time you turn on Typhoon H, it will default to CAUTION: Remove all the propellers before using the GUI. having GPS active/on (even if you disabled GPS the last time is was powered on).

  • Page 22: Calibration

    CALIBRATION data will not display on the screen. STEP 3) Lift Typhoon H airframe straight & level. When the LEDs on two motors start to blink blue and green If the calibration has been successful, all the LED status indicators will blink continuously, separately as illustrated, turn it forward as shown by the red arrow above until the two LEDs turn off.

  • Page 23: Gimbal Camera Calibration

    UPDATE GIMBAL CAMERA CALIBRATION STEP 1) Place the TYPHOON H on a level and stable surface. Switch on UPDATE THE ST16 GROUND STATION the ST16 Ground Station and the aircraft and wait till the RC and WiFi STEP 1) Download the Firmware update document and unpack it.

  • Page 24: Led Status Indications

    LED STATUS INDICATIONS LED STATUS INDICATIONS DURING STARTUP Main LED Status Indicator - Initialization failed Pulses red (3 times per second) - The Aircraft is in "Bind" Mode Blinks orange very rapidly (10 times per second) - The Aircraft is in a No-Fly Zone * Blinks red and white rapidly（5 times per second）...

  • Page 25: Wizard™ Led Status

    Wizard™ LED STATUS NOTICES AND WARNINGS Aircraft Mode LED IMPORTANT NOTE: All safety precautions and warnings, instructions, warranties and other collateral information is subject to change at the Smart Mode: LED solid green sole discretion of Yuneec. For the most up-to-date information please Watch Me Function: LED solid green visit the corresponding product page at www.Yuneec.com or contact the Follow Me Function: LED solid yellow...

  • Page 26: General Safety Precautions And Warnings

    GENERAL SAFETY PRECAUTIONS AND WARNINGS WARNING: Failure to use this product in the intended manner as described in the quick start guide and instruction manual can result in damage to the product, property and/or cause serious injury. A Radio Controlled (RC) multirotor aircraft, APV platform, drone, etc. is not a toy! If misused it can cause serious bodily harm and damage to property.

  • Page 27: Lipo Battery Warnings And Usage Guidelines

    LIPO BATTERY WARNINGS AND USAGE GUIDELINES WARNING: Lithium Polymer (LiPo) batteries are significantly more volatile than alkaline, NiCd or NiMH batteries. All instructions and warnings must be followed exactly to prevent property damage and/or serious injury as the mishandling of LiPo batteries can result in fire. By handling, charging or using the included LiPo battery you assume all risks associated with LiPo batteries.

  • Page 28: Disclaimer

    DISCLAIMER Yuneec Electric Aviation cannot be held liable for any damage, injury or for use of the product in violation with legal regulations, especially in the following circumstances: Damage and/or injury as well violation of legal regulations resulting from a failure to comply with the operating instructions or the instructions at www.yuneec.com, product information, user manual and other legally binding information.

  • Page 29: Certification Information

    CERTIFICATION INFORMATION FCC STATEMENT: This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 30 NCC Warning Statement Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery. The application of low power frequency electric machineries shall not affect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists.
