MOFI NETWORK MOFI4500-4GXELTE-SIM4 V2 User Manual

3g/4g/lte/lte advanced high performance router
Hide thumbs
Table of Contents

Advertisement

Quick Links

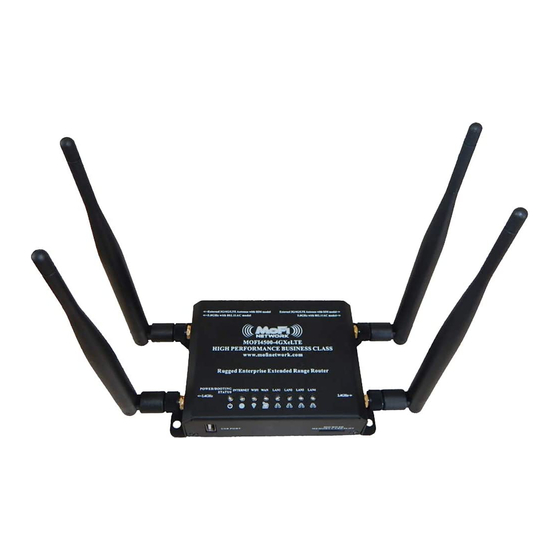

MOFI4500-4GXELTE-SIM4 V2
3G/4G/LTE/LTE Advanced High
Performance Router
Updated Manual can be located
at: www.MoFiNetwork.com
Please note that is it recommended to download our full User Manual on
our site since this is current version that is enclosed does not have all
the features listed.
Manual revision version is 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOFI4500-4GXELTE-SIM4 V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MOFI NETWORK MOFI4500-4GXELTE-SIM4 V2

Summary of Contents for MOFI NETWORK MOFI4500-4GXELTE-SIM4 V2

  • Page 1 MOFI4500-4GXELTE-SIM4 V2 3G/4G/LTE/LTE Advanced High Performance Router Updated Manual can be located at: www.MoFiNetwork.com Please note that is it recommended to download our full User Manual on our site since this is current version that is enclosed does not have all the features listed.

  • Page 2: Table Of Contents

    User Manual v1.0 Table of Contents About the Product ............................3 Features................................4 Requirements ..............................5 Package Content ............................6 Device Design ..............................7 Getting Started ...............................9 Plan Your Network: ............................. 10 Remove or Disable Conflicts: ........................11 Installing your Router: ..........................13 Connecting to the Internet VIA 3G/4G/LTE: ....................14 WPD (Wi-Fi Protected Setup):........................

  • Page 3: About The Product

    User Manual v1.0 About the Product The MOFI4500-4GXELTE-SIM4 is an IEEE802.11n wireless broadband Router with 3G/4G/LTE support. Simply put your SIM Card in and plug in the Router, an Internet connection can be accessed and shared virtually anytime anywhere within a wireless broadband network. Includes a cellular module build in that will allow you to insert your SIM card directly in the router.

  • Page 4: Features

    User Manual v1.0 Features Multi function Router - Support for 3G/4G/LTE/LTE Advanced mobile broadband plus 4-port wireless N router Support (3G/4G/LTE) USB modem connection - to offer a network connection with full mobility Latest Cellular Embedded Modem that allows the fastest and most stable connection possible Support IEEE802.11b/g and 11n wireless standard - data transfer rate reaches up to 300Mbps Support WAN Port and 4-Port 10/100M Ethernet - dual way connections to DSL/Cable modem for Internet access Support for 64/128-bit WEP, WPA, and WPA2 - ensure secure WiFi network, and prevent unauthorized access...

  • Page 5: Requirements

    User Manual v1.0 Requirements Your computer must meet the following minimum requirements. Any internet browser to surf the internet Ethernet network adapter or wifi network adaptor The MOFI router will work with basically any operating system and devices. When changes are being made in the router, it is recommended not to use any Google Chrome Use any other browser such as Internet Explorer, Firefox or Safari.

  • Page 6: Package Content

    User Manual v1.0 Package Content The package should contain the following items: MOFI4500-4GXELTE-SIM4 V2 Model • RJ 45 Network Cable • 12.0V, 1A UL Power Adapter • Easy Start Guide • 2 x 7 Inch WiFi Antenna • 2 x 7 Inch Cellular Antenna with an SMA Male connection at the end.

  • Page 7: Device Design

    User Manual v1.0 Device Design - Front Panel Note: Includes 2 External Antenna for just the WiFi signal & 4 External Antenna for the Cellular Signal Behavior Description Power/Boot Status Blink when booting, Solid when competed boot. Have internet access Internet No Internet access Wireless is enabled (will blink to show the wireless traffic)
  • Page 8 User Manual v1.0 Label Description Ethernet Port 1-4 Connecting with computers/devices using an Ethernet cable Connect to a modem using an Ethernet cable Press for 10 seconds to reset to the Factory Default. Reset/WPS Press for 2 seconds to set in WPS mode Power Jack Use 12V 1.0A Power Adapter Page 8 of 59...

  • Page 9: Getting Started

    User Manual v1.0 Getting Started Plan your Network You may need to check some Remove/Disable setting or disable some application before installation. Conflicts Connect the modem, Setup the Router computer, and power adaptor to the router. Open a browser to access the Connect to the Web User Interface and then use Setup Wizard to connect to the...

  • Page 10: Plan Your Network

    User Manual v1.0 Plan Your Network 1. Using a 3G/4G/LTE USB Modem Stick 2. Using a DSL/Cable modem (If your DSL/Cable modem is both a router and a modem, contact us. Page 10 of 59...

  • Page 11: Remove Or Disable Conflicts

    User Manual v1.0 Remove or Disable Conflicts To make sure the router installation moves on smoothly, you need to remove or disable conflicts that may interfere the installation. Probable conflicts may include: Internet sharing applications • Proxy software • Security software •...
  • Page 12 User Manual v1.0 Configuring Internet Properties To set the Internet Properties: Click the Start button, and then click Run. This opens the Run dialog box. Type in inetcpl.cpl, and then click Ok. This opens the Internet Properties. Click the Connections Tab. In Dial-up and Virtual Private Network settings, select Never dial a connection.

  • Page 13: Installing Your Router

    User Manual v1.0 Installing your Router The MOFI4500-4GXELTE-SIM4 can be used in many ways including as a 3G/4G/LTE/LTE2 router or just a regular Cable/DSL/Satellite high speed router. Using a SIM card from your provider direct from provider 1. Insert your SIM card in the SIM card slot on the side of the router and connect all 4 antennas to router. 2.

  • Page 14: Connecting To The Internet Via 3G/4G/Lte

    User Manual v1.0 Connecting to the Internet VIA 3G/4G/LTE/LTE2 If you have a cable, DSL or Satellite modem that does not need to have a username/password, just connect the output from the Cable/DSL/Satellite to the WAN port of the router then repower your Cable/DSL/Satellite box and you should be online.

  • Page 15: Wpd (Wi-Fi Protected Setup)

    User Manual v1.0 WPS (Wi-Fi Protected Setup) WPS button allows you to activate Wi-Fi Protected Setup (WPS). When you press the reset button and hold it down for 2-3 seconds, it automatically detects and connects wireless clients into the wireless network by broadcasting the wireless network settings from your Access Point to you wireless device/s.

  • Page 16: Usb Print Server

    User Manual v1.0 USB PRINT SERVER This option is used if you have an old USB printer and want to share this on your network so all devices that can install your printer driver can print to. In basic mode, go to Network --> USB Print Server Check to enable it and then save and reboot router Now, you will need to re-install the driver for your printer on all your device you can do and configure it using the instruction in next part.
  • Page 17 User Manual v1.0 Click on Hardware and Sound > Devices and Printers > Add a printer If needed, click on “The printer that I want isn’t listed” Select “Add a printer using a TCP/IP address or hostname” Page 17 of 59...
  • Page 18 User Manual v1.0 Stop the Auto Detect and click on "The printer that I want isn't listed" Enter IP address: 192.168.10.1 or whatever your router’s ip address is and then click on Next Windows will now search for the printer Page 18 of 59...
  • Page 19 User Manual v1.0 Select: "Add a printer using a TCP/IP address or hostname" and press Next Page 19 of 59...
  • Page 20 User Manual v1.0 For Device type: Select TCP/IP Device Enter Hostname or IP address: 192.168.10.1 The Port Name should auto file with same: 192.168.10.1 You can leave the check box "Query the printer and automatically select the driver to use" and then go Next Windows should detect the settings Select Custom Settings and leave everything as default: Page 20 of 59...
  • Page 21 User Manual v1.0 port number should be 9100 as RAW press OK to continue At this point, this is why you will need to have your printer driver (same as you have when you installed it on your Select Have Disk, locate and it will install the printer. You printer will show up, go Next to continue Select "Use the driver that is currently installed (recommended)"...
  • Page 22 User Manual v1.0 Page 22 of 59...
  • Page 23 User Manual v1.0 FOR WINDOWS 7 Click on the Start Button > Control Panel > Hardware and Sound > Devices and Printers > Add a printer Select Add a network, wireless Printer Stop the Auto Detect and click on "The printer that I want isn't listed" Select: "Add a printer using a TCP/IP address or hostname"...
  • Page 24 User Manual v1.0 For Device type: Select TCP/IP Device Enter Hostname or IP address: 192.168.10.1 The Port Name should auto file with same: 192.168.10.1 You can leave the check box "Query the printer and automatically select the driver to use" and then go Next Windows should detect the settings Select Custom Settings and leave everything as default: Page 24 of 59...
  • Page 25 User Manual v1.0 port number should be 9100 as RAW press OK to continue At this point, this is why you will need to have your printer driver (same as you have when you installed it on your Select Have Disk, locate and it will install the printer. You printer will show up, go Next to continue Select "Use the driver that is currently installed (recommended)"...
  • Page 26 User Manual v1.0 Click on the File Menu > Add Printer. Click on Next on the Add Printer Wizard page Click on Next on the Add Printer Wizard page. Choose Local Printer attached to this computer and click Next, on the Local o Choose Local Printer attached to this computer and click Next, on the Local or Network Printer page.
  • Page 27 User Manual v1.0 Choose Create a new port and on the drop down box choose Standard TCP/IP Port then click Next. Click Next button on Welcome to the Add Standard TCP/IP Printer Port Wizard. Enter your MOFI4500-4GXELTE-SIM4 Default Gateway IP address 192.168.10.1 then click Next. Page 27 of 59...
  • Page 28 User Manual v1.0 Under Additional Port Information Required choose Custom then click Next Under Additional Port Information Required choose Custom then click Next Once the computer detects the printer on the Print Server, it will ask for the printer manufacturer and model, a list Once the computer detects the printer on the Print Server, it will ask for the printer manufacturer and model, a list Once the computer detects the printer on the Print Server, it will ask for the printer manufacturer and model, a list of printers will be shown, select the your printer from the list and click OK.
  • Page 29 User Manual v1.0 Click Finish to complete the installation. PRINTING A TEST PAGE AFTER INSTALLATION Open the Printers and Faxes page from Control Panel. Right click on the new printer and click on Properties. Click on the Print Test Page button on the Printer properties page, the test page will be printed on the network printer.
  • Page 30 User Manual v1.0 Click on Add a Printer. Click on Add a local printer then click Next. Click on Add a local printer then click Next. Select Create a new port, on the drop down box choose Standard TCP/IP port then click Next. Select Create a new port, on the drop down box choose Standard TCP/IP port then click Next.
  • Page 31 User Manual v1.0 Enter the Default Gateway IP address of your MOFI4500-4GXELTE-SIM4 router 192.168.10.1 then click Next. Under Additional Port Information Required window, select Custom then click Next. Page 31 of 59...
  • Page 32 User Manual v1.0 Once the computer detects the printer on the Print Server, it will ask for the printer manufacturer and model, a list Once the computer detects the printer on the Print Server, it will ask for the printer manufacturer and model, a list Once the computer detects the printer on the Print Server, it will ask for the printer manufacturer and model, a list of printers will be shown, select the your printer from the list and click OK.
  • Page 33 User Manual v1.0 If Printing was unsuccessful right click on the Printer’s icon then select Properties. Under printer’s Properties click Port Tab and tick the IP address (192.168.10.1) that was set on previous settings then click Apply. Page 33 of 59...
  • Page 34 User Manual v1.0 Note: Scanning, Faxing and Photocopying functions on Multifunction printers are currently not supported on the MOFI4500- 4GXELTE-SIM4 , Print function is the only feature that will work on these printers type when connected to the MOFI4500- 4GXELTE-SIM4 . Page 34 of 59...

  • Page 35: Wan Connection

    User Manual v1.0 WAN connection By default, the WAN connection type is set to automatic which is DHCP. Most Cable and DSL connections are automatic. On this section you can choose your Internet connection type from Static IP (manual), PPPoE, PPTP, and DHCP (Automatic) If you need to change this to PPPoE or PPTP or just want to disable it, log into the router and in basic mode, click on Network and go to the bottom "Internet Connection"...

  • Page 36: Wireless

    User Manual v1.0 Wireless By default, the wireless network name is: MOFINETWORK , the wireless network name is: MOFINETWORKXXX where the XXXX is the last 4 digits of your router's XXX where the XXXX is the last 4 digits of your router's mac address.

  • Page 37: Port Forwarding

    User Manual v1.0 How to forward ports: Located in Basic Mode on the top right Port Forwarding on the side under Network Click on Add For Name, enter whatever you want to call it Select the Protocol you want to use Enter the external port that you want to forward to Normally internet and external ports would be the same Select your ip address that your device you want to forward to...

  • Page 38: How To Open Ports In The Router

    User Manual v1.0 How to open ports in the router: Note that normally, you would not have to do this. If you feel you need to, first double check as when you do a port forward, it should automatically open the ports for you. These are the default port that are open by default WEB 80 SSH 22...
  • Page 39 User Manual v1.0 Page 39 of 59...

  • Page 40: How To Set A Wireless Bridge/Repeater

    User Manual v1.0 How to Set a Wireless Bridge/Repeater: The first thing you need to know ahead of time is the wireless SSID (network name) and password of the device that you want to connect to if it has a security enable on it. Note it is case sensitive so make sure you have everything exactly the way it is.
  • Page 41 User Manual v1.0 4. Enter the SSID of the main router you are trying to connect to and the wireless password. You can select this from the box. If you are unable to select this, click on the Wifi Bridge/Repeater on the left hand side again to refresh that screen.

  • Page 42: How To Do A Firmware Upgrade

    User Manual v1.0 How to do a Firmware Upgrade: There are 2 ways to do an update. One is if you have internet access, you can do a remote update. This is located in Basic Mode --> System --> Remote Update If you do not have internet access on the router, you may have to do a manual firmware update Go to www.mofinetwork.com...

  • Page 43: How To Remote Login Into Router

    User Manual v1.0 How to Remote Login into the Router: Remote Login is enabled by default and can be access on port 80,81 and 8080 Port 8080 is the official port for remote access If you have a public IP address, you will be able to access your router remotely by going to: http://yourpublicIPaddress:8080 However, if you are using a cellular connection and have not paid or added a public ip option to your account, you cannot get direct access to the router as the NAT will not let you do this,...
  • Page 44 User Manual v1.0 How to modify settings/ports for remote access to the router: By default, the router is set to receive on port 80, 81 and 8080 If you want to change this, log into the router and go into Basic Mode --> Mofi Business --> Web Server To change the port, click on the HTTP Port option and select custom You can now delete what is there by default: 0.0.0.0:80 0.0.0.0:81 0.0.0.0:8080...
  • Page 45 User Manual v1.0 There are many more features that are not covered in this manual such as We are currently making some changes to this section but below is some more options not fully documented Parental Control Scheduler (ability automatically to allow or block access to individual devices via the mac address).

  • Page 46: Fail Over

    User Manual v1.0 FAIL OVER If you require the highest stability, Fail Over can be a life saver. To active fail over, go to Mofi Business --> Fail Over 1. Enable by checking box 2. Normally, 99% of customers wants WAN as primary and cellular as secondary so you can select the default profile.

  • Page 47: Load Balancing

    User Manual v1.0 LOAD BALANCING If you require the fastest internet possible, the Load Balancing feature will allow you to take two WAN connection and make the work as one. This feature is currently being worked on. Contact us for more details on this. To active fail over, go to Mofi Business -->...

  • Page 48: Ip Pass Through

    User Manual v1.0 IP Pass Through With IP Pass Through, this feature will make your router to work as a modem. Only 1 device can be connected via Ethernet Port 1. Enable, save and then reboot router. You normally never need to change any of the default settings here. When IP Pass Through is on, your wifi will automatically be disabled.

  • Page 49: Mofi Recovery

    User Manual v1.0 MOFI RECOVERY How to recover router from wrong file update or other problem This MOFI utility will restore your MOFI MOFI4500-4GXELTE-SIM4 router back to working mode. It will only work on any operating system like Windows, MAC, Linux Step 1: Set router is recovery mode Connect the router to your pc with an Ethernet cable to port 1 at the back of the router.
  • Page 50 User Manual v1.0 Step 5: Log into the router Now, you will be able to log back in the router. To log in router, go to http://192.168.10.1 username: root password: admin Page 50 of 59...

  • Page 51: Remote Management

    User Manual v1.0 MOFI REMOTE MANAGEMENT How to Enable Remote Management With your MOFI router, you have the ability to access your router status and make various changes if need all from an online interface on our server. To use this feature, you will need to enable this option that is located in: Basic Mode -->...
  • Page 52 User Manual v1.0 ID: This show your ID for your router that is internet to MOFI NETWORK User: This is your MAC Address on your router Version: This is the firmware version that is being used on your router Model: This is the model router you are using...

  • Page 53: Mofi Cloud Link

    User Manual v1.0 MOFI CLOUD LINK STATIC DEDICATED PUBLIC IP SERVICE Do you need a public IP? Do you know what is? 99% of all provider gives you what is called a private IP address. With a private IP address, you cannot do any port forwarding so if you have a device that needs to forward a port like a camera system, you will need to get a public IP.
  • Page 54 User Manual v1.0 To add a device like a video camera recorder (DVR) to get this public IP address and be able to view your video for example from the outside, Go back to the MOFI Cloud section where you put in your username and password and in the bottom, there is an option to add the mac address of the device you want to use a public IP address with.
  • Page 55 User Manual v1.0 In some cases, you might want to use port 80 which is also only as default in the router. If you want to use this, you will have to de-select port 80 that is in the router. To do this, go to Mofi Business -->...
  • Page 56 User Manual v1.0 BAND LOCK Manually Setting LTE Band An LTE band is the frequencies that the provider is using. Here are some potential bands for various provider. AT&T: B2, B4, B5, B17, B30 T-Mobile: B2, B4, B12 Verizon: B2, B4, B13 To do band lock, log into router and go to Mofi Internal Modem Then Click on Advanced Settings Tab...
  • Page 57 User Manual v1.0 BANDWIDTH MONITORING If you want to set a limit of usage per device, this is where you set this. 1. You will need to enable Bandwidth Monitoring To Enable, this, go to Bandwidth & Filters on the left hand side Then Check the Enable option and set the day of the month that your billing cycle starts over at.
  • Page 58 User Manual v1.0 Bandwidth - USER LIMITS Make sure the Bandwidth Monitor is enabled as explained above. If you are looking to set a limit of data use to an individual device, you would enable the User Limits Enable the User Limits by clicking on the check box Click on Add and add the device you want to set the limit for.

  • Page 59: Regulatory Compliance Notices

    The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by MoFi Network could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules.
