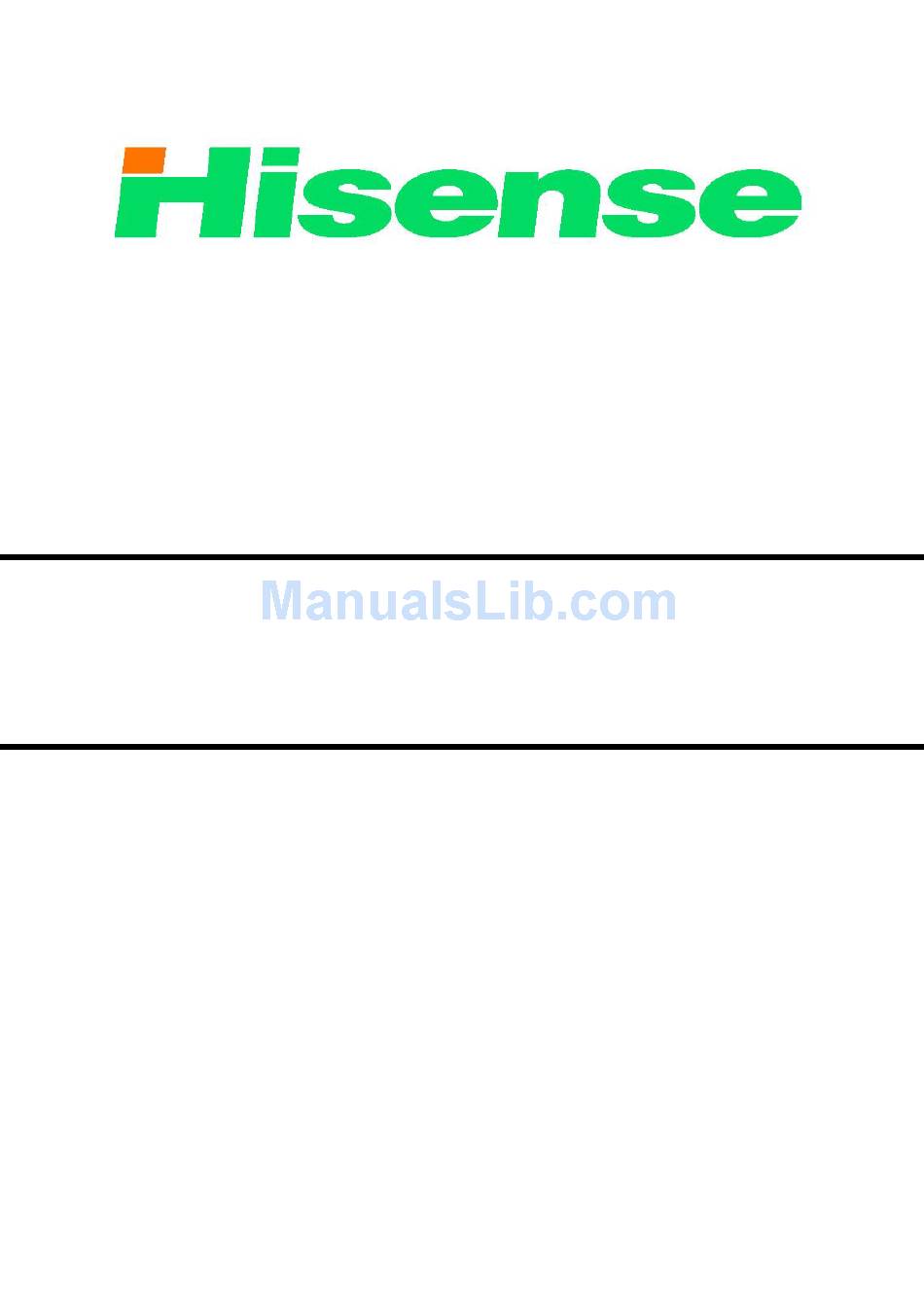

SERVICE MANUAL HSM515AV 51CM CTV SEP04 SERVHSM515AV...
Page 2
Hisense UOC 2004-10-15 21 ¨ & 14 ¨ Color TV Service Manual Catalogue 1. Technology Specification and Feature…..……………………… Page 1 2. The IC list …………………………………………………… Page 2 3. Signal process……………………………………………………… Page 2 4. The horizontal and vertical circuit………………………………… Page3 5. Power supply……………………………………………………….. Page 3 6.
Page 3
2. IC list Table 1, the main IC and functions Number Function Remark Power supply KA5Q0765RT N611 CPU + SIGNAL PROCESSER OM8370/TDA9370 N301 Field driver STV9302A N401 Sound driver AN7522N N161 AV SWITCH TC4052BP N801 (Video) N121(sound) Memory AT24C08 N702 Photo-coupler HS817B N504...
Page 4
4. Horizontal and vertical circuit: Through Synchronous separating circuit, the video signal is divided into horizontal- Synchronizing signal and Vertical-Synchronizing signal. The horizontal-Sync pulse coming from pin 33 is transferred to the horizontal-drive transistor. The cathode driving voltage 180V vertical drive voltage +15V and –15V are all generated from FBT.
Page 5
Appendix 1: IC illustration Fig.1 OM8370 illustration Pin1: Standby control,“ 1” is on,“ 0” is off. Pin2: SCL. Pin3: SDA.
Page 6
Pin4: Tuning PWM output. Pin5: Auto AV control SW, connected with the SCART 8th pin. Input. The rising edge or the falling edge operates. Pin6: Key board input. Pin7: Volume Pin8: Mute control,“ 1” is mute,“ 0” is off. Pin9: Pin12、Pin18、Pin30、Pin35、Pin41、Pin55: GND. Pin10: BAND1 control output.
Page 7
Pin30: GND. Pin31: Sound loop filter. Pin32: AVL filter. Pin33: Horizontal drive signal output, needs a resistor in series to +8V. Pin34: Sandcastle output/flyback input, Pin35: External audio input, this pin should be grounded in this chassis. Pin36: EHT tracking/ overvoltage protection. If something is wrong, the anode high voltage rises, the heater voltage will rise too.
Page 12
Appendix 2: ADJUST METHOD 6.1 Main power +B setting Receive standard color pattern RF signal , set picture to “ Standard Mode ” . Adjust VR501 , to get +B (VD542 -) voltage =110 V 6.2 I 2 C bus control adjustment methed: How to enter and exit factory mode( with customer’s remote controller) 1.Press [menu] key...
Page 13
Menu3 ITEM Preset value Definition Bright in W/B mode Contrast in W/B mode Screen mode (press VOL+/- or CH+/- key to enter or exit ). Adjust Screen knob on FBT to adjust the bright of the line Red bias adjust Green bias adjust Red drive adjust Green drive adjust...
Page 14
Menu5 ITEM Preset value Definition MODE STANDARD Picture mode selection You can select four modes: STANDARD, VIVID, MILD and USER BRIGHT Preset Bright value for the mode you have selected above CONTRAST Preset contrast value COLOR Preset color value SHARP Preset sharpness value f SC BRIGHT Preset bright value for screen mode...
Page 15
Menu7 ITEM Preset value Definition IFFS 38.9MHz IF Frequency Selection DK system selection I system selection BG system selection M system selection SIF PRI SIF Priority AV2 selection S-VIDEO S-video selection YUV selection VOL ADJ POINT VOL curve point selection VOL ADJ VALUE VOL curve value adjusting on the selected point...
Page 16
Menu9 ITEM Preset value Definition BAND Must be 2 according to the TUNER START ON 0: Last memory mode: TV_mode 1 : Power on standby mode 。 LOGO No use ON DELAY Power on delay time adjust ON DELAY M Preset on delay time CURTAIN OSD FORM...
Page 17
NAME TYPE QTY. UNIT LOCATION MAIN PCB PX20030-4C △A1/A2 CARBON FILM RESISTOR RT13-1/6W-300R-J R913 CARBON FILM RESISTOR RT13-1/6W-22R-J R914 CARBON FILM RESISTOR RT13-1/6W-3K3-J R735 CARBON FILM RESISTOR RT13-1/6W-10K-J R396 CARBON FILM RESISTOR RT14-1/4W-100R-J R486 FUSE RESISTOR RF10-1/2W-1R0-J R473B FUSE RESISTOR RF10-1W-R27-J R555 R565 R566 FUSE RESISTOR...
