8.4 Tooth / trigger logger and troubleshooting RPM issues
large composite logs. To use this logger, it is usually useful to capture to a log file. Tick the "Capture to log file" box
and save the file name. Then start the sync error logger and drive or ride around. (You can datalog at the same
time.) When you have finished, Stop the logger and un-tick the "Capture to log file".

8.4.7 Example logs

Here are some examples of how these logs look in the real world.

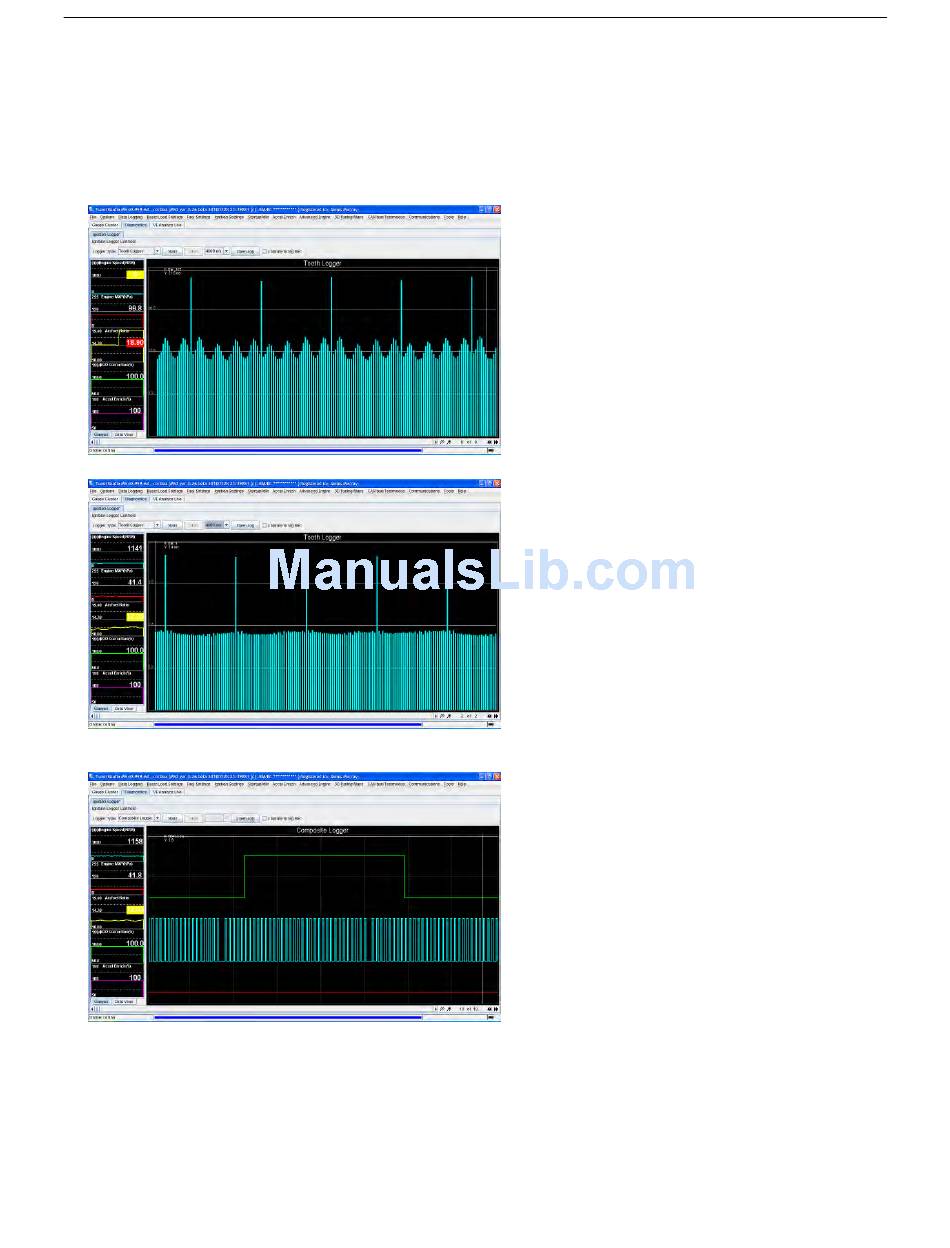

Here is a tooth log of a 36-1 trigger wheel on a V8 while cranking.
The same trigger setup, but at running speed. Note that the time on the teeth smooths out and the effect of the
compression is much smaller.
Composite log of the same engine running.
