Summary of Contents for PNI 851W

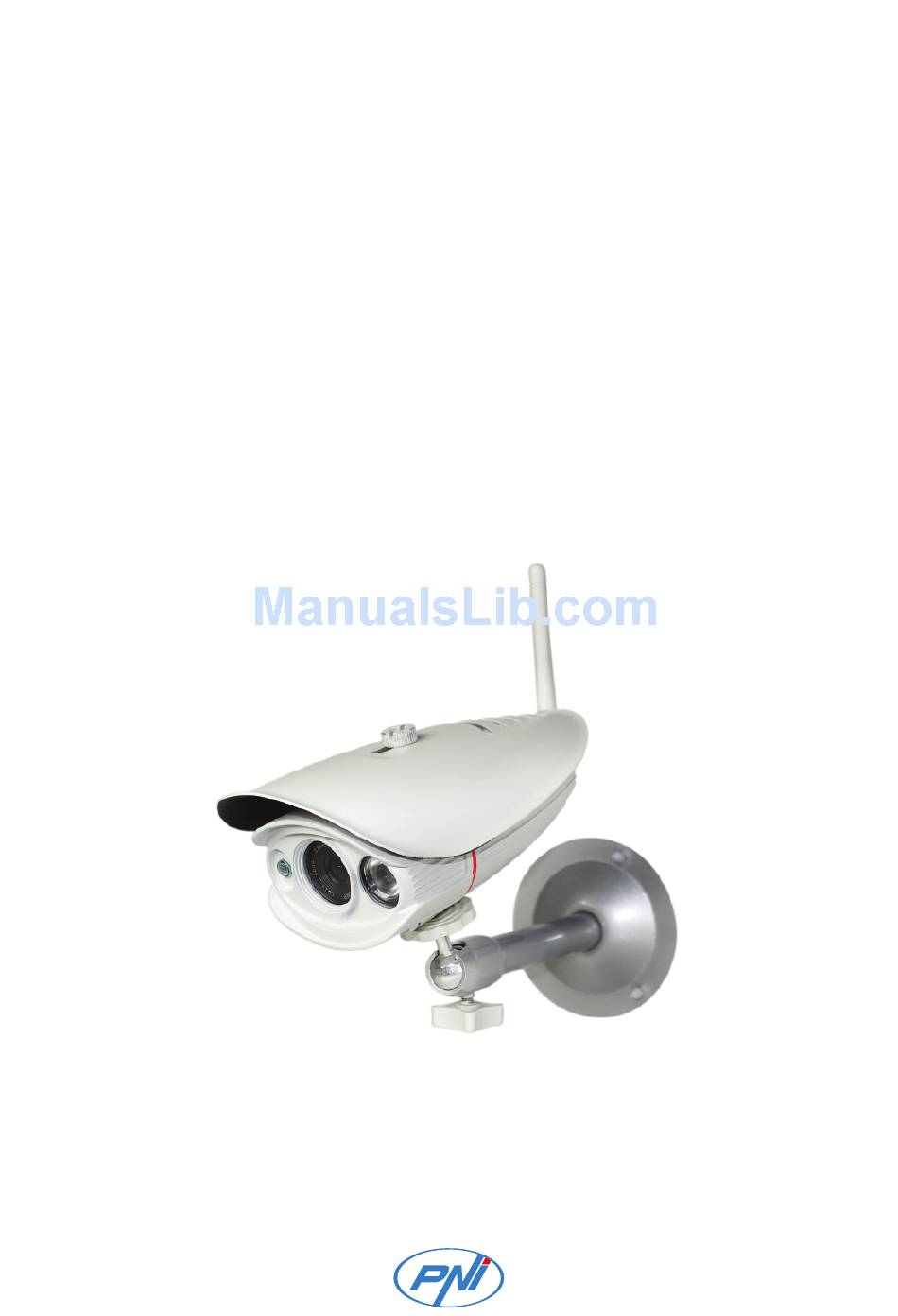

- Page 1 Camera supraveghere video PNI 851W HD 720p cu IP de exterior conectare wireless sau cablu - manual de utilizare -...
- Page 3 I. Caracteristici camera supraveghere cu IP PNI 851W Conexiune P2P Ÿ Functie IR-CUT Ÿ Poate fi admistrata la distanta de pe dispozitive mobile iOS si Android Ÿ Inregistrare pe card microSD sau la distanta (necesara conexiunea la internet) Ÿ Suporta protocolul ONVIF; compatibila cu NVR ONVIF Ÿ...
- Page 4 III. Instructiuni utilizare Software CMS PNI Smarthome PC client 1. Introducere: CMS este un software de monitorizare a camerelor video. Suporta administrarea si vizualizarea a maxim 64 de camere. CMS poate fi instalat pe computere cu urmatoarele sisteme de operare: Windows XP Sp3, Windows 7, Windows 8, Windows 8.1, Windows 10 (32bit / 64bit).
- Page 5 5.2 Autentificare de la distanta Folositi aplicatia pentru dispozitive mobile. Inregistrati-va, apoi autentificati-va. NOTA: CMS nu are functie de inregistrare utilizatori. 6. Interfata aplicatie: Aceasta interfata permite: - adaugarea, stergerea si administrarea camerelor video din retea - selectarea modului de afisare a camerelor - setare si redare inregistrari video locale 7.
- Page 6 Click pe butonul pentru a adauga un dispozitiv. Pentru adaugarea unei camere, utilizatorul poate folosi cautarea automata sau poate adauga manual o camera completand campul UID. 8. Setari de la distanta: Selectati camera, faceti click dreapta si selectati “Remote Setup”. Puteti seta adresa IP si rezolutia video a dispozitivului.
- Page 7 8.1 Setari adresa IP: Dupa ce ati adaugat parametrii de retea, software-ul CMS va actualiza automat toate setarile camerei. 8.2 Setari rezolutie video: Apasati pe butonul “Record” pentru a seta rezolutia inregistrarilor video: 9. Afisare ecran: Utilizatorul poate selecta: Intercom, functii video (Capture si Stop Record) sau mod de afisare (Standard definition - implicit sau High Definition).
- Page 8 9. Meniu: 1 - Sunet Alegeti un dispozitiv si apasati acest buton 2 - Control PTZ (functie inactiva pentru acest model de camera) Alegeti un dispozitiv si apasati acest buton 3 - Pagina anterioara 4 - Pagina urmatoare Puteti folosi butoanele 3 si 4 si pentru a vizualiza pe rand camerele 5 - Ecran intreg 6 - Afisare o singura camera 7 - Afisare 4 camere...
- Page 9 10.2 Nume utilizator si parola CMS (User tab): Nume utilizator implicit: admin; Parola: 00000000 11. Redare inregistrari: 11.1 Redare inregistrari locale: Cand redati o inregistrare, implicit sunetul este dezactivat. Cautarea si redarea unei inregistrari locale: Cautati o inregistrare selectand camera video si intervalul de timp. Din lista cu rezultatele cautarii, selectati o inregistrare pentru a o reda.
- Page 10 Interfata redare inregistrari locale 12. Istoric operatiuni: Utilizatorul poate accesa istoricul operatiunilor unei anumite camere intr-un anumit interval de timp si poate face o copie de rezerva. 13. Blocare CMS: Utilizatorul poate bloca accesul altor utilizatori pentru a garanta securitatea inregistrarilor si a setarilor.
- Page 11 IV. Procedura Instalare card de memorie Pentru a instala un card de memorie MicroSD ( Transflash ) in camera 851W aveti nevoie de urmatoarele: Surubelnita cruce Ÿ Penseta Ÿ Card MicroSD ( Transflash ) Max 32 GB Ÿ Pentru a avea acces la cititorul de card, trebuie sa desfaceti cele 2 suruburi din partea superioara si inferioara a camerei pentru a desface carcasa.
- Page 12 Conectati camera in reteaua locala (la Router) folosind un cablu de retea ( Patch Ÿ RJ45) pentru prima configurare. Folositi aplicatia de pe CD PNI SmartHome PC Client (CMS) pentru a adauga / Ÿ vizualiza / configura camera in reteaua locala.
- Page 13 USER MANUAL IP camera PNI 851W 720p outdoor wireless or cable connection...
- Page 14 Motion detection via email notification Ÿ 4 users viewing from mobile phone at the same time Ÿ Ethernet Reset Power supply II. Technical specifications IP camera PNI 851W Hi3518E Operating system LINUX Image sensor 1.0MP (1280 x 720p), CMOS Video compression H.264...
- Page 15 III. User instructions Software CMS 1. Brief introduction: CMS is a centralized monitoring software for IP cameras. It supports max 64ch online viewing and administering. CMS can be installed on computer with the following operating systems: Windows XP Sp3, Windows 7, Windows 8, Windows 8.1, Windows 10 (32bit / 64bit). This user manual focus on the installation and the use of the CMS, mainly including software download, installation, instruction of real-time monitoring interface, device setting and other functions.
- Page 16 5.2 Remote login Use mobile application to log in with registered user name and password ; CMS does not support registration function. 6. Application Interface : This CMS allows you to: - Add, delete and monitor the IP cameras from the same network - Multi-screen control - Local Management: Settings, Local video playback and log management 7.
- Page 17 Click button to add a device: the user can manually add a camera filling the UID field or he can use the IP camera search function. 8. Remote settings: Select the device, right click and choose "Remote setup", the user can set the IP address and the video resolution of the device.
- Page 18 8.1 IP address setup: When entering the network settings, CMS will automatically refresh the parameters and current status of the device settings. 8.2 Video Resolution Settings: Click “Record” button to set the recording resolution: 9. Viewing the screen: The user can select: Intercom, video function (Capture and Stop Record) or display mode (Standard definition - default or High Definition).
- Page 19 9. Menu: 1 - Sound Choose a device and click this button 2 - PTZ control (this function is not supported by 851W camera) Choose a device and click this button 3 - Previous page 4 - Next page You can choose 3 and 4 buttons to see the devices one by one...
- Page 20 10.2 User name and password for CMS management (User tab): Default user name: admin; Password: 00000000 11. Video playback: 11.1 Local playback video: When you playback a video, the audio is closed. Search and play a local video: Search a device selecting record file type, begin time and end time. From the list, select a file to play.
- Page 21 local video playback operating interface 12. Operating log: The user can check the device CMS operating record via operating log function,and backup it. 13. Lock CMS: The user can block the access to other users to ensure the security of the records and settings.
- Page 22 IV. Memory Card Installation Procedure To install a memory card MicroSD (TransFlash) in 851W video camera you need the following:: Cross screwdriver Ÿ Tweezers Ÿ MicroSD ( Transflash ) card max 32 GB Ÿ To access the card reader, you must unscrew the two screws at the top and bottom of the camera to loosen the case.
- Page 23 Connect to your local network (to the Router) using a network cable (RJ45 Patch) Ÿ for the first configuration. Use the CD application PNI SmartHome PC Client (CMS) to add / view / configura Ÿ the camera in the local network.
