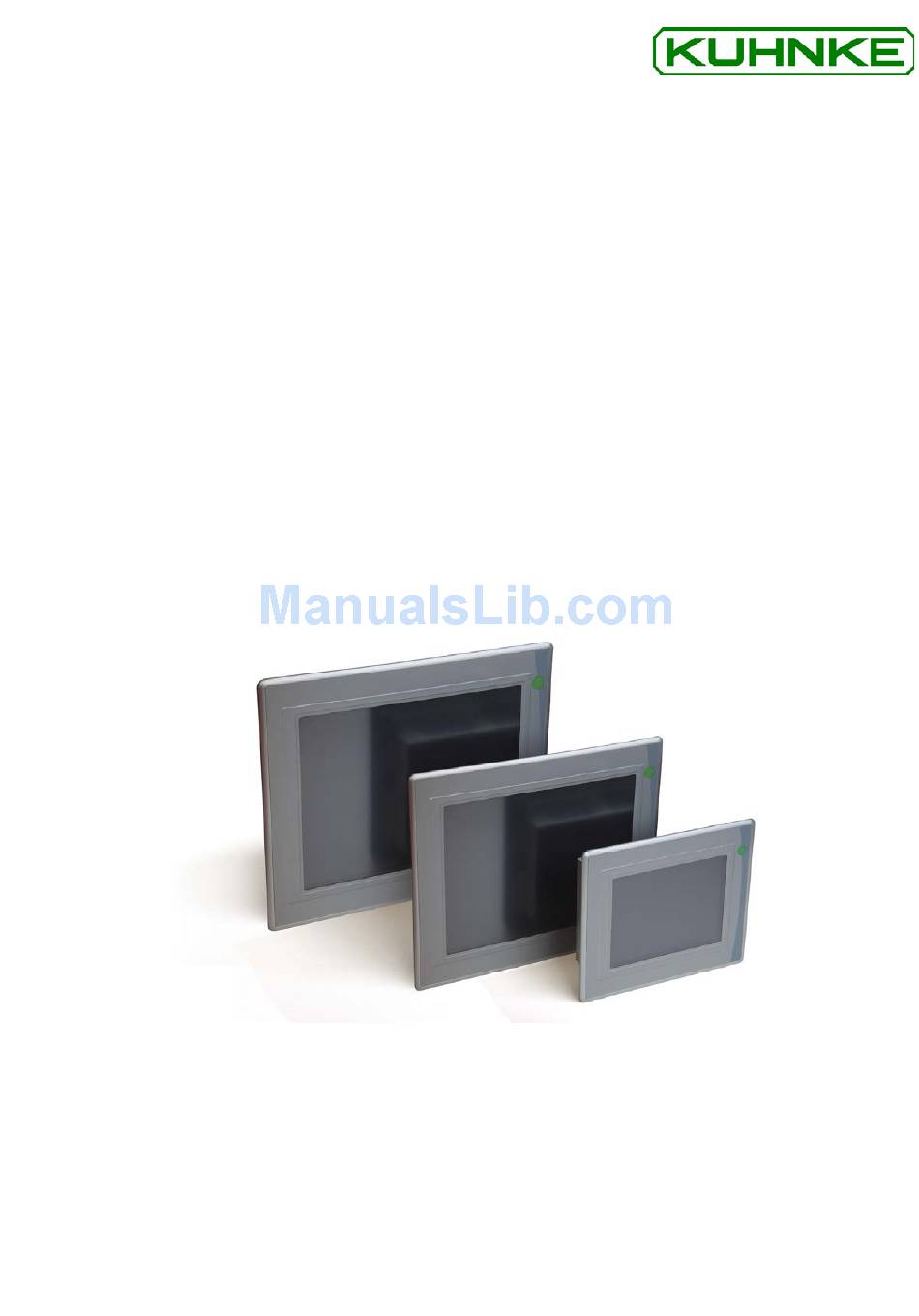

- Page 1 Kuhnke Electronics Instruction Manual Ventura Vico 1000 / 1200 / 1500 Control and Display Monitor E 811 GB 27/02/2013 / xxxxxx...
- Page 2 This technical information is primarily directed to system designers, project engineers and device develop- ers. It does not contain any availability information. Specifications are for description only and are not to be understood as guaranteed product properties in a legal sense. Exact properties and characteristics shall be agreed in the specific contract.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1 Introduction ..............................5 2 Reliability, Safety ............................. 6 Applicability ............................6 Target Group ............................6 Reliability .............................. 6 Symbols ............................... 6 2.4.1 Danger ..............................6 2.4.2 Attention ............................. 7 2.4.3 Note ..............................7 2.4.4 Under Construction .......................... - Page 4 Technical Data ........................... 28 7.1.1 Basic Data ............................28 7.1.2 Chemical Resistance ........................29 7.1.3 Dimensions of Ventura Vico 1000 ....................30 7.1.4 Dimensions of Ventura Vico 1200 ....................31 7.1.5 Dimensions of Ventura Vico 1500 ....................32 Order Specifications ........................... 33 7.2.1 Basic Units ............................
-
Page 5: Introduction

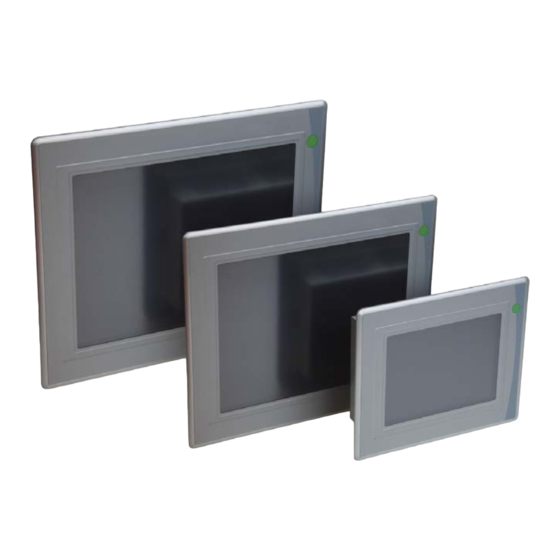

Introduction 1 Introduction Brilliant, fast and compact Ventura Vico is a control and display monitor with a high-quality and long-life TFT display backlit by LEDs for industrial applications. It features a digital DVI interface for image information interchange, thus making cumbersome video framing correction unnecessary. -
Page 6: Reliability, Safety
Reliability, Safety 2 Reliability, Safety 2.1 Applicability Kuhnke products are designed as resources for use in industrial environ- ments. All other applications need to be discussed with the factory first. The manu- facturer shall neither be liable for any other than the intended use of our products nor for any ensuing damages. -
Page 7: Attention
Reliability, Safety 2.4.2 Attention This symbol draws your attention to information you must take a look at to avoid malfunctions, possible material damage or dangerous states. 2.4.3 Note This symbol draws your attention to additional information concerning the use of the described product. This may include cross references to informa- tion found elsewhere (e.g. -
Page 8: Project Planning And Installation
This applies to section 8 (Admissi- ble deviations when working on parts) in particular. • Repairs must be carried out by specially trained Kuhnke staff only (usu- ally in the main factory in Malente). Warranty expires in every other case. -
Page 9: Electromagnetic Compatibility
Reliability, Safety 2.6 Electromagnetic Compatibility 2.6.1 Definition Electromagnetic compatibility is the ability of a device to function satisfacto- rily in its electromagnetic environment without itself causing any electromag- netic interference that would be intolerable to other devices in this environ- ment. -
Page 10: Electrical Immission Safeguard
Reliability, Safety 2.6.4 Electrical Immission Safeguard To eliminate electromagnetic interference, connect the control system to the protective earth conductor. Practice best cable routing. 2.6.5 Cable Routing and Wiring Keep power circuits separate from control circuits: • DC voltages 60 V ... 400 V •... -
Page 11: System Description
System Description 3 System Description 3.1 Overview Ventura Vico - brilliant operation... 3.2 Application Ventura Vixo is an industry-scale TFT monitor with touch screen functional- ity. If combined with the control PC Ventura, you get a powerful and flexible in- dustry PC system for a wide range of practical applications, specifically in the fields of mechanical engineering and switching cabinet construction: •... -
Page 12: Technical Properties
System Description 3.3 Technical Properties Ventura Vico 1000 Ventura Vico 1200 Ventura Vico 1500 Design Control panel mounting at Control panel mounting at Control panel mounting at the front and held by the front and held by the front and held by... -
Page 13: Front Film
• Methylene chloride • High pressure steam above 100 °C For details please contact the product management of KUHNKE Automation GmbH. 3.5 Model Variants Ventura Vico sells as various model variants, giving users a good chance of choosing the model that best matches the application. The features of a model can be derived from its order no. -
Page 14: Physical Design
System Description 3.6 Physical Design Operative earth Power supply (touch screen info Digital Visual Interface output) USB 1/2 External brightness (USB 2.0) potentiometer 3.7 Power Supply and Ports 3.7.1 Power Supply "24VDC", "X1" Only attach the unit to a 24 VDC power supply source if the source is guar- anteed to meet safe extra low voltage requirements (SELV). -
Page 15: Earth
System Description 3.7.2 Earth The earth connector of Ventura Vico is connected to the protective earth conductor of the cabinet or system / machine element. Use the flat plug (6.3 mm x 0.8 mm) at the back of the unit. Verify that the cross section is not less than 2.5 mm . -
Page 16: Usb" Port, "X4" (Touch Screen Info Output)
To find drivers for operating systems Windows CE and Windows , WIN7 and WEC7, browse the web for www.kuhnke.com and go to the Downloads page. 3.8.3 "USB 1/2" Ports, "X5" The USB host adapter "USB" (USB port, type A) is the port for external pe- ripherals such as mass storage devices, a mouse or a keyboard. -
Page 17: Mounting And Installation
Ventura Vico. This specifically applies to the rear of the unit. Please note that excessive temperature could shorten the life expectancy of the monitor. 4.1 Front Panel Opening Model Width A Height B Ventura Vico 1000 250 mm 202 mm Ventura Vico 1200 296 mm 240 mm Ventura Vico 1500... -
Page 18: Installation
Mounting and Installation 4.1.1 Installation Ventura Vico is a modern electronic assembly. Handle - specifically mount, operate and service - with care. The unit is operated by means of a touch screen or, more specifically, a resistive touch screen. Resistive touch screens consist of multiple circuit layers made of different materials. - Page 19 Mounting and Installation • Switch off the controller PC. • Unplug the controller PC from the mains/power supply. • Attach all cables to Ventura Vico and any peripherals. • Check that all cables are firmly attached at both ends. • Plug all units back into the power supply unit.
-
Page 20: Start-Up
Start-up 5 Start-up Danger of damage to the unit! If the device was exposed to condensation, allow it to rest for about 12 hours before you start to use it. 5.1 TFT Monitor Calibration 5.1.1 Adjusting the Resolution Mind that the Ventura Vico monitor must be attached to the controller PC be- fore you switch on the power supply to the system. -
Page 21: Touch Screen Operation
Start-up 5.2 Touch Screen Operation Control objects on the touch screen are operated by applying a slight but no- ticeable pressure on them with your finger or the touch stylus. Always touch a single on-screen control object at a time. You may otherwise start unintended actions CAUTION Touch screen operating errors... -
Page 22: Configuring And Calibrating The Touch Screen
Afterwards you can start using your Ventura Vico. To recalibrate the touch screen at any later time, manually run HCECAL.exe. On KUHNKE Ventura systems, the program is located in Start menu folder "Programs / Kuhnke". 5.3.2 Windows XP, WEC7 To calibrate and configure the Ventura Vico monitor, run the "Microchip... - Page 23 Start-up 5.3.2.1 "Calibration" Tab This tab lets you select the options for touch screen calibration: Select On this panel, you define the number of calibration points. Basically, the more points you calibrate, the better the accuracy of touch screen response. The "4 Point Calibration" default option yields very good results.
- Page 24 Start-up 5.3.2.2 "Click Settings" Tab This tab allows you to enable and adapt the "Right Click" feature. Right-Click Settings You can instruct the touch screen to enable the right-click feature if a defined point on the screen is touched for a defined period of time. Go to the "Right Click Setting"...
- Page 25 Start-up 5.3.2.3 "Touch Settings" Tab Touch Mode If "Enable Touch Sound" is ticked the speaker will sound an acknowledge tone every time the screen is touched. The "Normal" option supports "click", "double click", "drawing", drag and drop" and "right click" functionality. "Touch Down"...
- Page 26 Start-up 5.3.2.4 "Tools" Tab The "Tools" tab provides touch screen testing and cleaning utilities and dis- plays details of Ventura Vico's touch screen controller. E 811 GB 27/02/2013...
-
Page 27: Maintenance And Servicing
BIOS failed to find monitor data Measure the voltage supplied, check pin wiring. Run Control Panel utility or KUHNKE tool to adjust the monitor resolution. Some screen areas do not work or Image information not available or Verify that DVI plug are in properly not all the time, e.g. -
Page 28: Appendix
Appendix 7 Appendix 7.1 Technical Data Basic Data 7.1.1 Function............industrial monitor with touch functionality Design ............control panel mounting at the front and held by screws at the back Dimensions ..........see Technical Properties 3.3 Weight ............see Technical Properties 3.3 Protection .......... -
Page 29: Chemical Resistance
The front film will not resist the following chemicals and influences: • Benzoyl alcohol • Concentrated bases • Concentrated mineral acids • Methylene chloride • High pressure steam above 100 °C For details please contact the product management of KUHNKE Automation GmbH. E 811 GB 27/02/2013... -
Page 30: Dimensions Of Ventura Vico 1000
Appendix 7.1.3 Dimensions of Ventura Vico 1000 To find a complete installation drawing (pdf file) browse the Internet for www.kuhnke.com "DOWNLOAD" or find the product descriptions available on the "Electronics" pages. E 811 GB 27/02/2013... -
Page 31: Dimensions Of Ventura Vico 1200
Appendix 7.1.4 Dimensions of Ventura Vico 1200 To find a complete installation drawing (pdf file) browse the Internet for www.kuhnke.com "DOWNLOAD" or find the product descriptions available on the "Electronics" pages. E 811 GB 27/02/2013... -
Page 32: Dimensions Of Ventura Vico 1500
Appendix 7.1.5 Dimensions of Ventura Vico 1500 To find a complete installation drawing (pdf file) browse the Internet for www.kuhnke.com "DOWNLOAD" or find the product descriptions available on the "Electronics" pages. E 811 GB 27/02/2013... -
Page 33: Order Specifications
Appendix 7.2 Order Specifications 7.2.1 Basic Units Ventura Vico 1000 639.310.10 10.4" TFT control and display monitor including touch screen functionality. Interfaces: DVI, USB1/ USB2/ RS232 touch 24 VDC power pack Resolution: 640x480 (VGA) Ventura Vico 1200 639.320.11 12.1" TFT control and display monitor including touch screen functionality. -
Page 34: Sales & Service
Please visit us on the Internet to find a comprehensive overview of our sales and service network including all the relevant addresses. www.kuhnke.com 7.3.1 Malente Headquarters Kuhnke Automation GmbH & Co. KG Lütjenburger Straße 101 D-23714 Malente Phone +49(0) 45 23-4 02-0... -
Page 35: Index
Index 7.4 Index application............11 location of installation ......... 10 attention ..............7 note ............... 7 cable routing and wiring ........10 notes ..............6 chemical resistance ........13, 29 order number ............13 Chemicals ............. 13, 29 physical design ........... 14 cleaning ..............
