SDAV1 5031

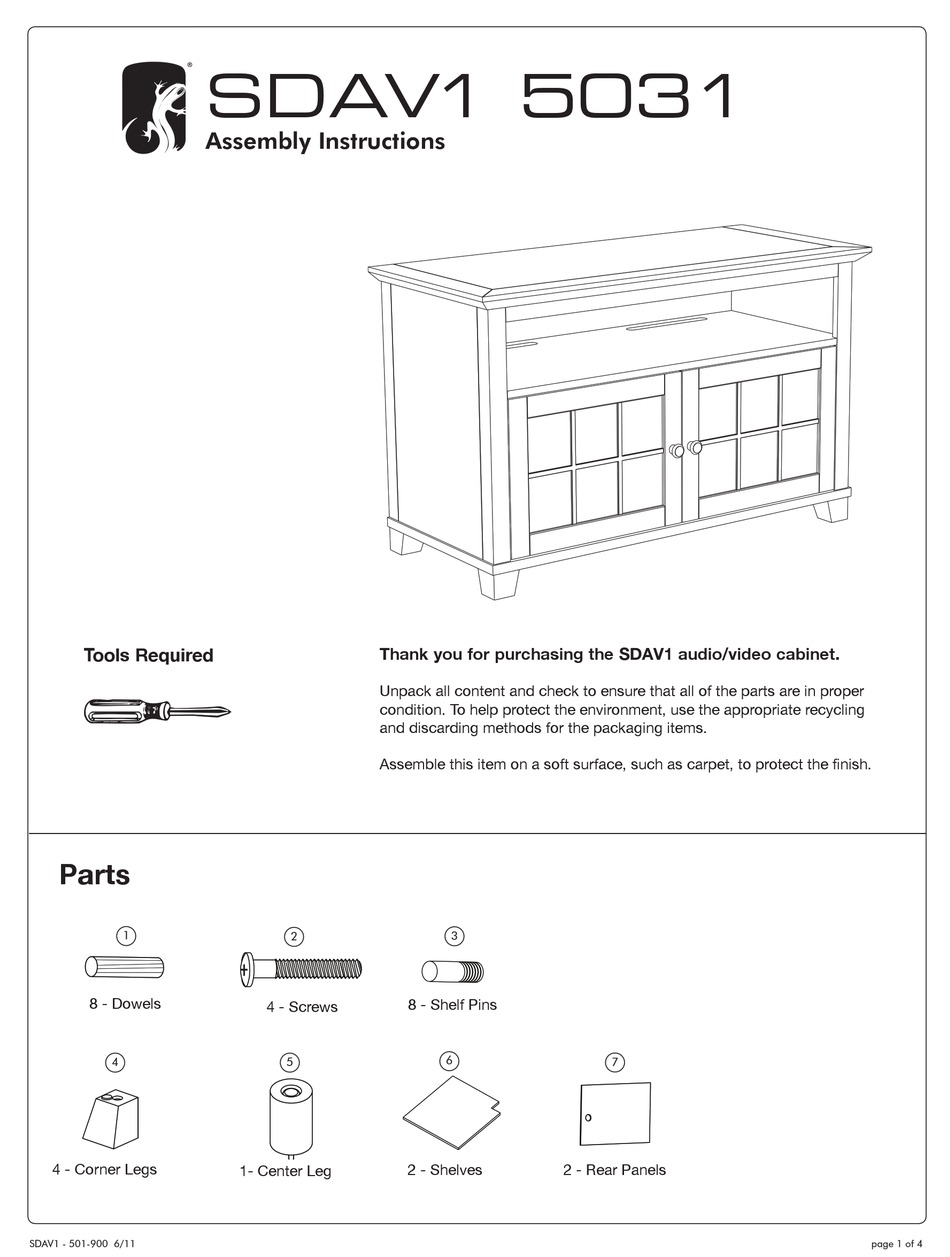

Assembly Instructions
Tools Required
Parts
1
8 - Dowels
4
4 - Corner Legs
SDAV1 - 501-900 6/11
Thank you for purchasing the SDAV1 audio/video cabinet.
Unpack all content and check to ensure that all of the parts are in proper
condition. To help protect the environment, use the appropriate recycling
and discarding methods for the packaging items.
Assemble this item on a soft surface, such as carpet, to protect the finish.
2
8 - Shelf Pins
4 - Screws
5
2 - Shelves
1- Center Leg
3
6
7
2 - Rear Panels
page 1 of 4
Advertisement
Table of Contents
Related Manuals for Abt SDAV1 5031
Summary of Contents for Abt SDAV1 5031
- Page 1 SDAV1 5031 Assembly Instructions Tools Required Thank you for purchasing the SDAV1 audio/video cabinet. Unpack all content and check to ensure that all of the parts are in proper condition. To help protect the environment, use the appropriate recycling and discarding methods for the packaging items.
- Page 2 Install Legs Install Door Pulls SDAV1 - 501-900 6/11 page 2 of 4...
- Page 3 Place Shelves Install Rear Panels SDAV1 - 501-900 6/11 page 3 of 4...
- Page 4 Aligning Doors Follow these instructions if you wish to adjust your doors. Top View Adjust screw “A” to allow door adjustment in and out of the cabinet. Front View Use screw “B” to adjust the doors to be parallel to the cabinet. Door Front SALAMANDER DESIGNS LIMITED WARRANTY Salamander Designs Ltd.
