Abt 1654-75206-DKW1 Assembly Instruction

Friendship table

Download this manual

** Please make sure you have all parts indicated below prior to assembly.

This table is heavy and can best be assembled with the help of two or more people.

Note:

Height of this table can be adjusted with or without extension block. (30" and 36" heights)

Assembly steps with extension blocks:

1 .Attach bottom stretcher (I) and middle stretcher (J) to legs (F) by inserting bolts (E),

lock washers (C) and flat washers (D), tighten with Allen wrench (A) (See Diagram 1)

2 .Attach base frame (F) to table top (K) by inserting bolts (B), lock washers (C) and flat

washers (D), tighten with Allen wrench (A) (See Diagram 1)

3. Turn table upright.

ASSEMBLY INSTRUCTION

Item# 1654-75206-DKW1 Friendship Table

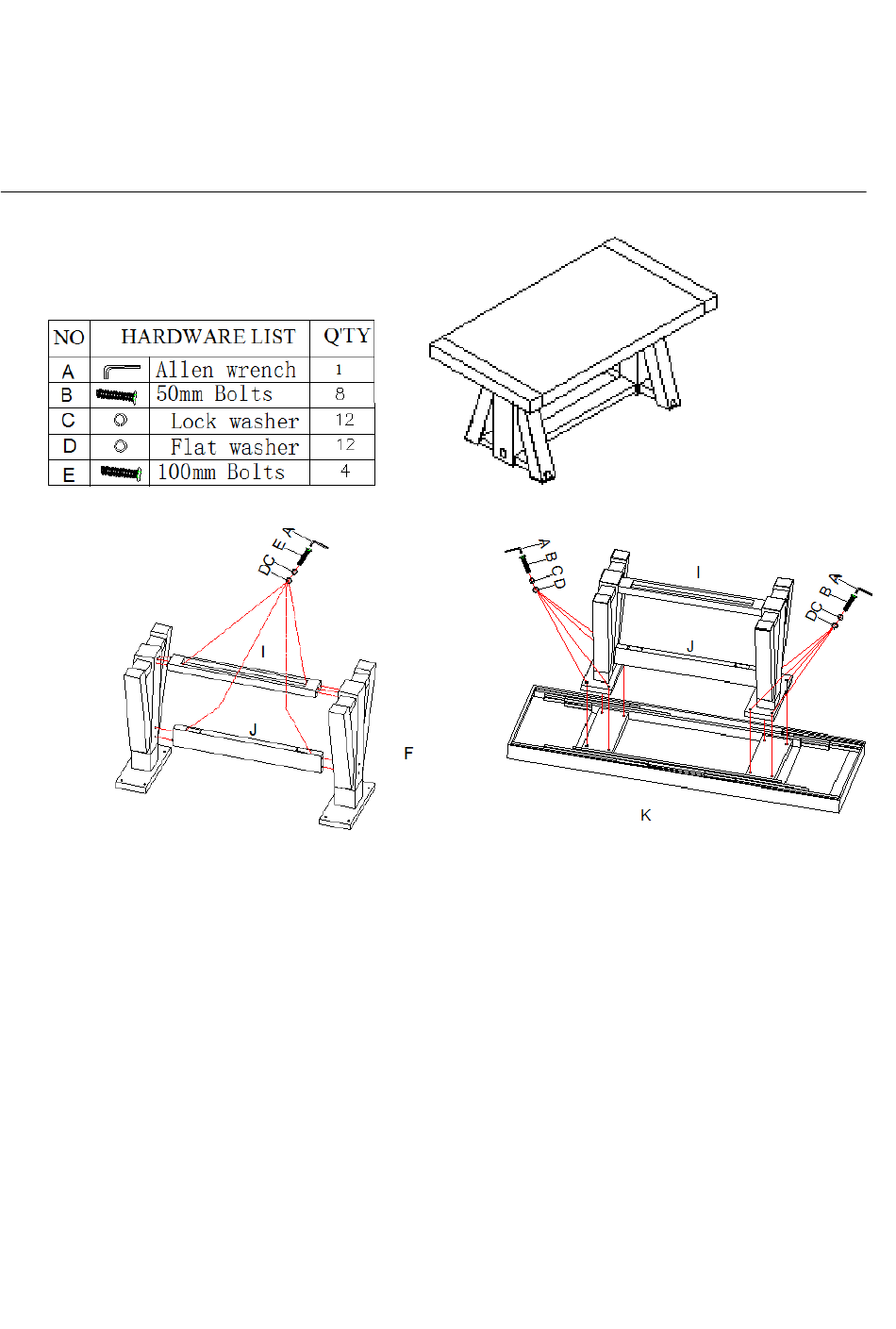

Diagram 1

1/3

Page 1 ASSEMBLY INSTRUCTION Item# 1654-75206-DKW1 Friendship Table ** Please make sure you have all parts indicated below prior to assembly. This table is heavy and can best be assembled with the help of two or more people. Diagram 1 Note: Height of this table can be adjusted with or without extension block. (30” and 36” heights) Assembly steps with extension blocks: 1 .Attach bottom stretcher (I) and middle stretcher (J) to legs (F) by inserting bolts (E),...
Page 2 Assembly steps without extension blocks: Diagram 2 Diagram 3 Diagram 4 Diagram 5 Unscrew bolts (B), lock washers (C) and flat washers (D) by Allen wrench (A) from mounting (See Diagram 2) bridge (H) Remove extension blocks (G) from legs (F) by unscrewing bolts (E) lock washers (C) and flat (See Diagram 3) washers (D) in counter clockwise direction with care.
