Summary of Contents for ultra site 63S-R6

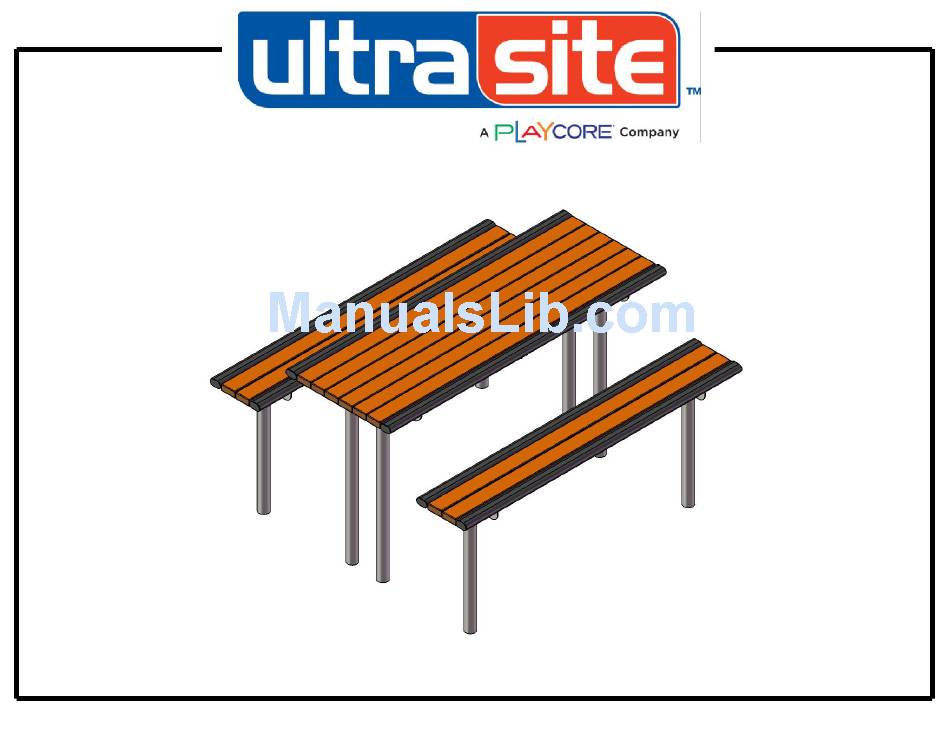

- Page 1 Model # 63S-R6 1/7/2014 Page 1 of 9...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 5/16" x 1-1/4" 3/18" x 1" Lag Bolt Machine Bolt 3/8" Flat Washer 800-45-ULTRA www.ultra-site.com 1/7/2014 Page 4 of 9...
-
Page 5: Tools Required
TOOLS REQUIRED 1/2" Wrench Level 1/2" Socket Wrench Tape Measure 800-45-ULTRA www.ultra-site.com 1/7/2014 Page 5 of 9... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 63S-R6 INGROUND MOUNT PICNIC TABLE Seats & Top: 2x4 planks are made from a minimum of 96% post-consumer or post-industrial recycled plastic. Contains UV stabilizers to prevent fading. Frame: 2-3/8" x 12 gauge structural steel tubing. Seat and Top supports are fabricated from 3/16” angle. All electrically MIG welded.
- Page 7 COMPONENTS ITEM PartNo DESCRIPTION QTY. P-01-01-0408 63 Series S Table Leg P-01-01-0406 63 Series S Seat Leg BRN72-2x4-LB, 2 x 4 Brown Recycled Bench Plank-Lag Bolts (6'), CDR72-2x4-LB, 2 X 4 Cedar Recycled Bench Plank-Lag Bolts (6'), GRN72-2x4-LB, 2 x 4 Green Recycled Bench Plank-Lag Bolts(6'), or GRY72-2x4-LB or 2 x 4 Grey Recycled Bench Plank-Lag Bolts (6') P-01-01-0385...
- Page 8 FOOTING DETAILS Estimated Required Concrete: 26 - 50lb Bags of Concrete Mix 18" 12" 800-45-ULTRA www.ultra-site.com 1/7/2014 Page 8 of 9...
-
Page 9: Overall Dimensions
OVERALL DIMENSIONS 72" 67" 27 3/8" 13" 30 1/16" 18 1/16" 42 11/16" GROUND LEVEL 800-45-ULTRA www.ultra-site.com 1/7/2014 Page 9 of 9...
