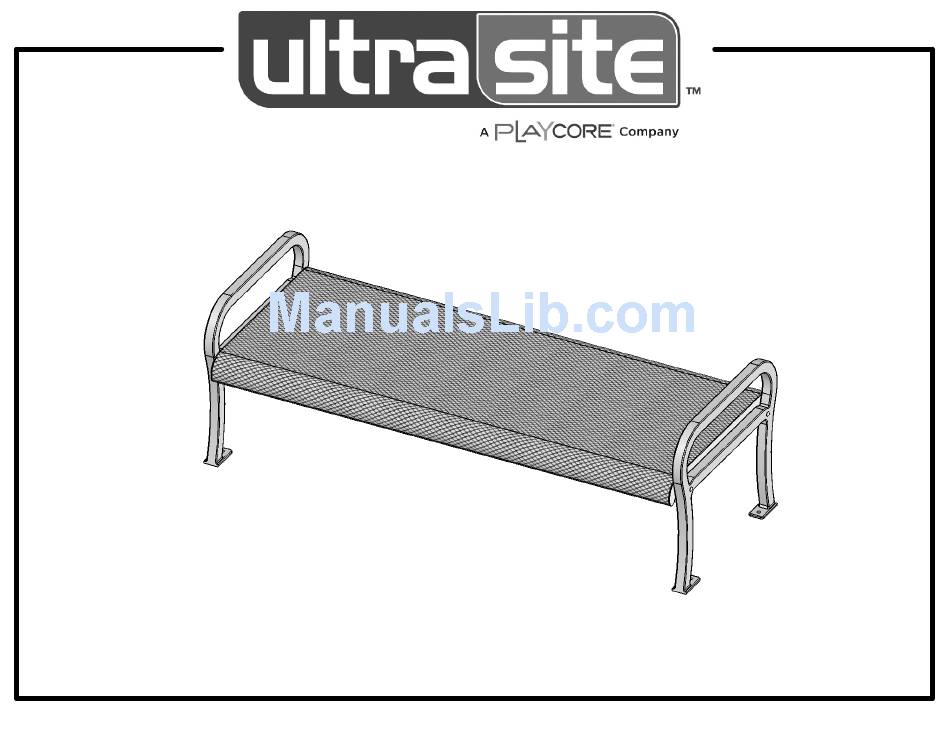

- Page 1 Model # 958-V6 3/19/2012 Page 1 of 8...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 5/16" x 2-1/4" Carriage Bolt 5/16" Washer 5/16" Kep Nut 800-45-ULTRA www.ultrasite.com 3/19/2012 Page 4 of 8...
-
Page 5: Tools Required
TOOLS REQUIRED 1/2" Wrench Level 1/2" Socket Wrench Tape Measure 800-45-ULTRA www.ultrasite.com 3/19/2012 Page 5 of 8... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 958-V6 LEXINGTON BENCH WITHOUT BACK Seats: Seats dimensions are 30-1/4” x 48”. 3/4” #9 steel expanded metal. End plates are made of 7 gauge flat steel plate. Reinforced with 3/16 x 1-1/2” flat strip. Electrically MIG welded.
- Page 7 INSTRUCTIONS Attach the 6' Flat Contour Seat to the 958 Legs using specifeid hardware. Recommended Surface Mount Hardware: 3/8" x 3-1/2" Concrete Expansion Anchor Bolts (Not Included) ITEM NO. PartNo DESCRIPTION T-11-01-CAST2 958 Casted Aluminum Frame 33-02-0007 5/16" Flat Washer (SS) 33-06-0053 5/16"...
- Page 8 OVERALL DIMENSIONS 72" 75" 30" 25" 18" 800-45-ULTRA www.ultrasite.com 3/19/2012 Page 8 of 8...
