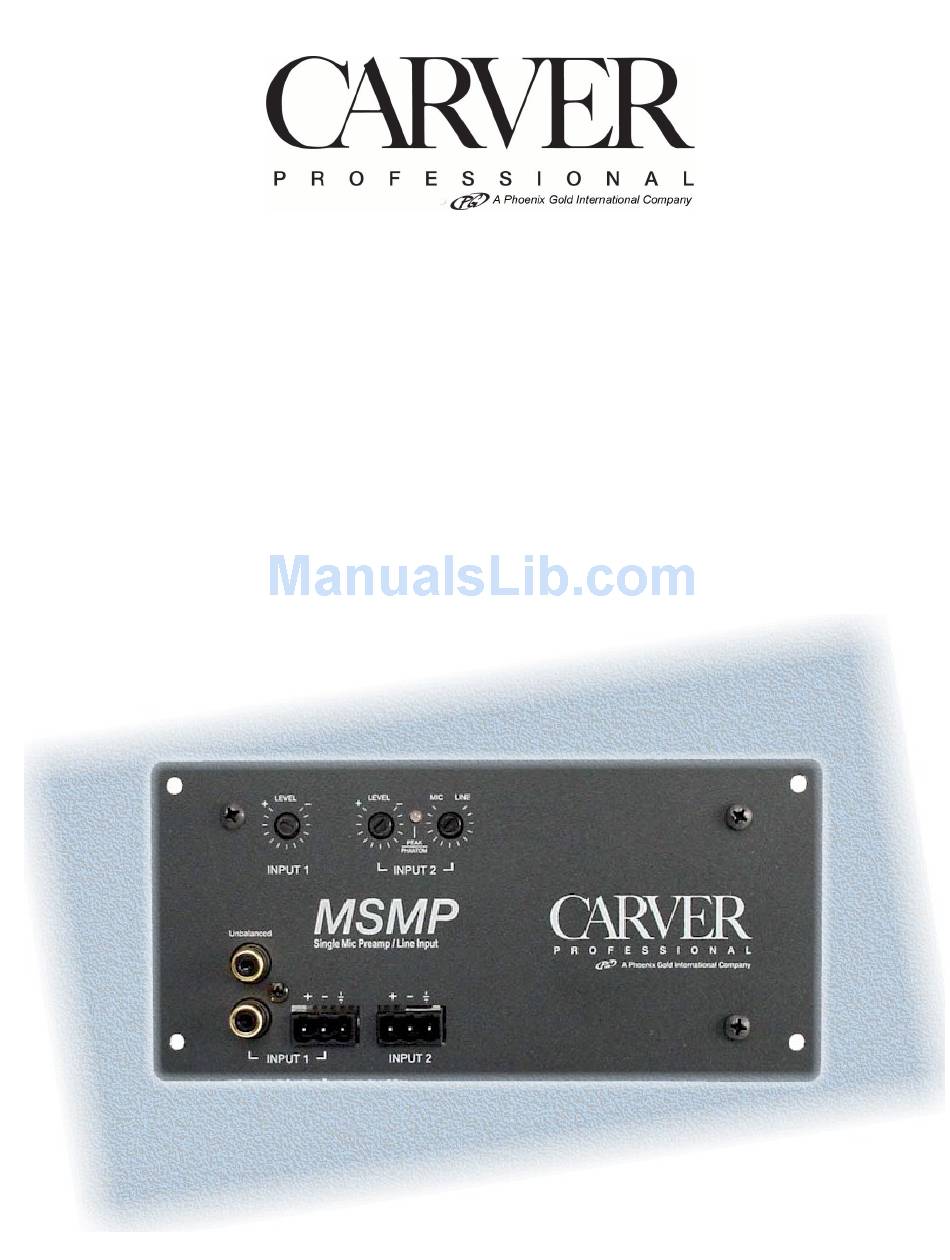

MSMP / MSMPX
User Manual
This User Manual is made available in Adobe Acrobat format.
In order to view or print the manual, and utilize its enhancements we
recommend that you download Adobe Acrobat Reader 4.0 or
greater.
If you do not have this viewer installed on your
computer, or if you have an older version the reader is available
as a free download at http://www.adobe.com.
By going to the table of contents you can directly access any
topic outlined there by simply clicking on the topic heading.
© Phoenix Gold International, Inc. November 2001
Rev. 11.20.01
Advertisement
Table of Contents
Related Manuals for Carver MSMP
Summary of Contents for Carver MSMP
- Page 1 MSMP / MSMPX User Manual This User Manual is made available in Adobe Acrobat format. In order to view or print the manual, and utilize its enhancements we recommend that you download Adobe Acrobat Reader 4.0 or greater. If you do not have this viewer installed on your computer, or if you have an older version the reader is available as a free download at http://www.adobe.com.
-
Page 2: Table Of Contents
(servicing) instructions in the Please read this entire manual, especially the Safety Warnings, before operating your amplifier. Table Of Contents Introduction Unpacking & Paperwork Important Paperwork Connecting the MSMP / MSMPX Features Input Connections Configuring the MSMP / MSMPX Input Adjustments JP101 MSMPX... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of a new Carver Professional CV Series Power Amplifier. The CV Series Amplifiers and Accessory Modules are designed expressly for commercial and institutional audio applications. The CV Series products are designed and manufactured by Carver Professional, a division of Phoenix Gold International, Inc. They combine Carver Professional’s experience in pro audio along with the needs of the system integrator to provide... -
Page 4: Features
Each input channel can be assigned to output to channel 1, channel2 or both via a DIP switch (SW1) on the module’s circuit board. Carver Professional reserves the right to improve its products at any time. Therefore, specifications are subject to change without notice. -
Page 5: Configuring The Msmp / Msmpx
Mono configurations, configure the output of the various Figure 2 input stages to CH 2 only. If you are using the MSMP module in a CV1501 or CV2501 single channel amplifier, you should configure the outputs to CH 1 only, on switch SW1. -
Page 6: Connecting The Msmp / Msmpx
The connector is keyed to fit into the twenty pin receptacle on the MSMP module in only one direction. Plug the ribbon cable into the receptacle taking care not to bend any of the pins. The connector should insert easily. If any resistance is encountered please double check the orientation of the termination on the ribbon cable in relationship to the receptacle. -
Page 7: Input Adjustments
Unlike Input #1, for thi input the sensitivity is set with a variable adjustment on the front panel of the MSMP module. The Mic / Line sensitivity adjustment becomes more sensitive as it is rotated clockwise. To adjust the sensitivity, you can insert a typical signal and adjust the sensitivity until the red or amber peak light is triggered. -
Page 8: Specifications
MSMP Specifications Measurement Conditions (unless otherwise specified): ±15vdc power supply One input selected, Level and Gain @ maximum Source Impedance: Balanced Mic/Line 150ohm, Unbalanced Line 25ohm Output Terminations: 10k ohm 0dB Reference Output Level: 0dBr= 0.775Vrms 1kHz Signal Mic/Line Inputs #2...
