ALGE-Timing OPTIc2 Manual page 7

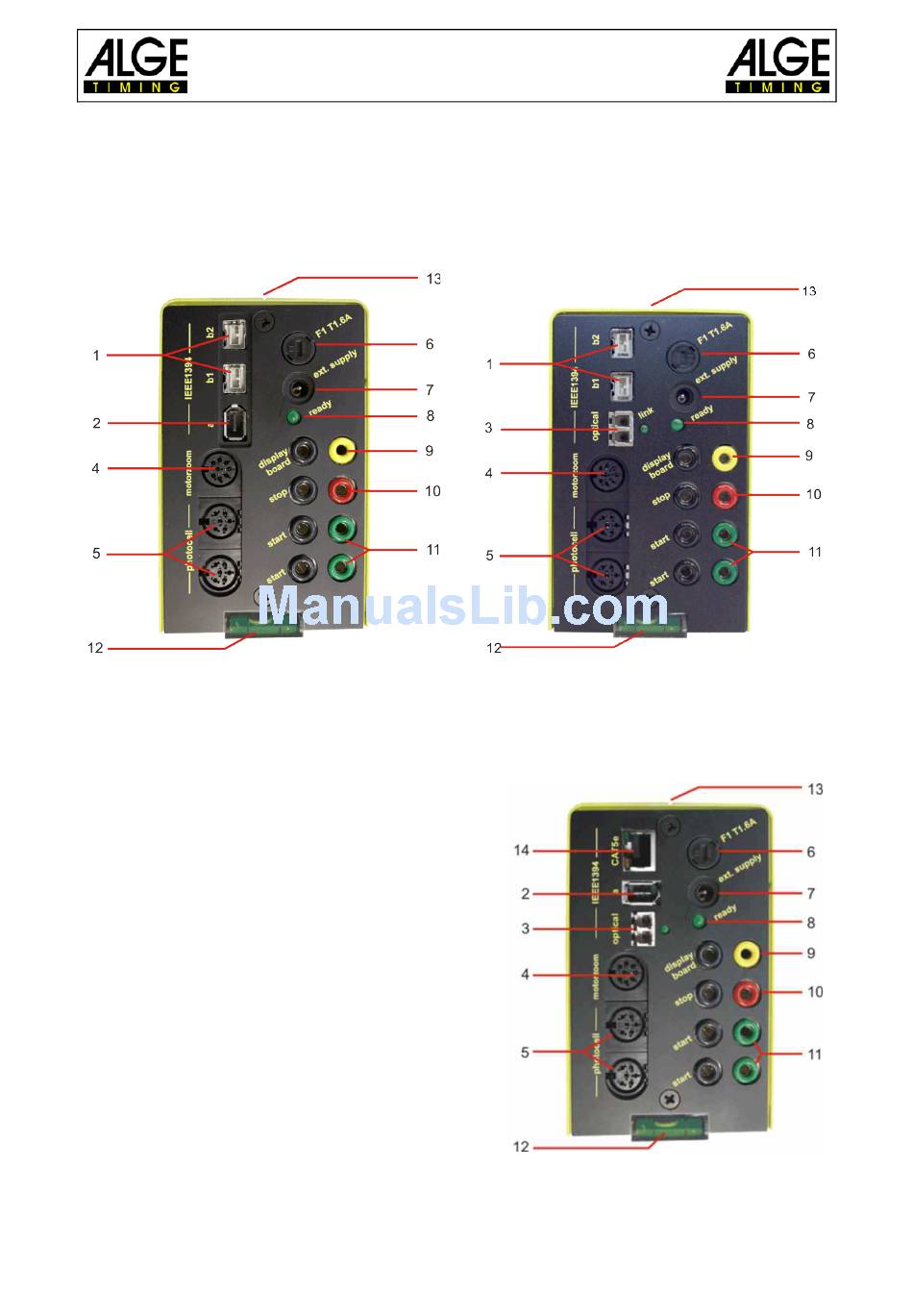

Model OPTIc2
1 ...... IEEE 1394b 9-pol bilingual (2 x)
2 ...... IEEE 1394a 6-pol
3 ...... GOF (LC duplex glass optical fiber connector)
4 ...... Socket for motor zoom
5 ...... Socket for photocell (2 x)
6 ...... Fuse for camera - F1 T1.6A
7 ...... Input for external power supply (+9 to 36 VDC)
8 ...... LED for OK status
9 ...... Banana Socket – Data output for display board
10 .... Banana Socket – Finish Impulse
11 .... Banana Socket – Start Impulse (2 x)
12 .... Spirit level
13 .... Sight to aim the camera at the finish line
14 .... RJ45 socket for CAT5 cable
Manual
Photo Finish OPTIc2.NET
Page 7
Model OPTIc2o
Model OPTIc2n
