ALGE-Timing e-Start W Manual

Electronic start device
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version-E171107
Electronic Start Device
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-Start W and is the answer not in the manual?

Questions and answers

Related Manuals for ALGE-Timing e-Start W

Summary of Contents for ALGE-Timing e-Start W

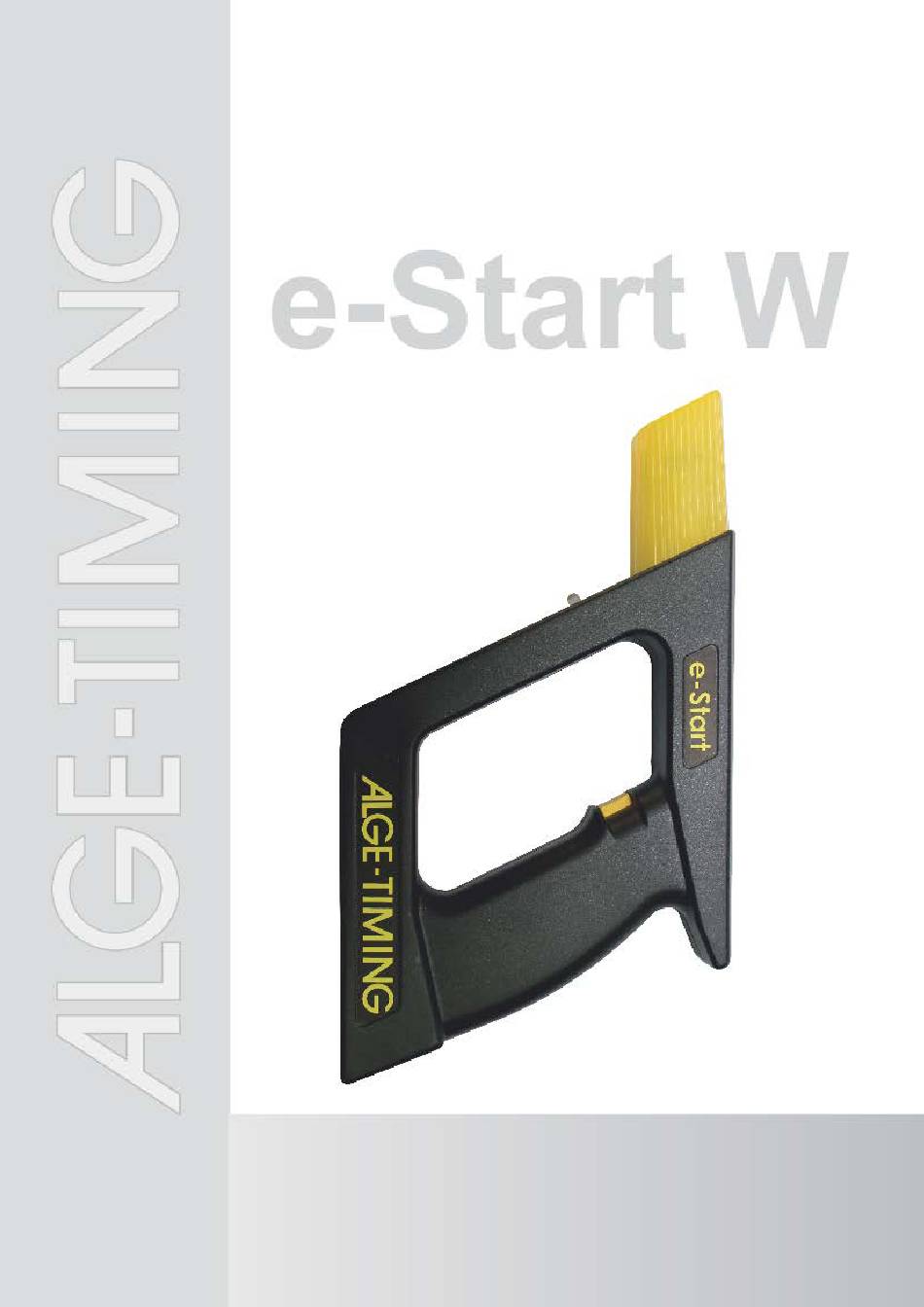

  • Page 1 Version-E171107 Electronic Start Device Manual...

  • Page 2: Important Information

    Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.

  • Page 3: Declaration Of Conformity

    W Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All components used by us are CE certified by their producer and are not modified by ALGE-TIMING GmbH. ALGE-TIMING GmbH Rotkreuzstrasse 39...

  • Page 4: Table Of Contents

    4 ..push button (impulse trigger) 5 ..team switch 6 ..charging socket The e-Start W sends the timing impulse by radio to an ALGE-TIMING timing device or speaker system BANG W. An internal rechargeable battery supplies the e-Start W.

  • Page 5: Integrated Radio System (Wireless Timing Network Wtn)

    10 mW are allowed USA: max. 100 mW are allowed It is only possible to adjust the radio output of the e-Start W through a WTN or Timy3. The factory setup is 10 mW. Commissioning The e-Start W has an internal battery. Before operating the device make sure that the re- chargeable battery is charged.

  • Page 6: Switching On

    The adjusted channel is stored also after switching the e-Start off and on. Adjusting Timing Channel C0: Mostly channel C0 (start) is used with the e-Start W. If you press the push button (4) for 10 seconds when switching the device on, the default channel C0 is activated.

  • Page 7: Led Indication

    Red permanent on ... Signalization “Ready to switch off” Function When the e-Start W is triggered (pressing push button (4)) a start impulse output is effected through the radio. At the same time the electronic flash (1) is triggered. 3.1 False Start Signal If the push button (4) is triggered again within 5 seconds a false start signal is released (again impulse of start channel by radio and three flash strobes (1) within a short time).

  • Page 8: Technical Specifications

    Manual e-Start W Technical Specifications Flash: 4 x LED (Ultra Bright Power LED) Connection: Charging Socket for charger PS12A Operating Temperature: -20 – 45°C (-4 to 113 F) Measurements: 265 x 150 x 35 mm Weight: ca. 0.4 kg (1.1 lb)
