Summary of Contents for Level 1 Lasers M503

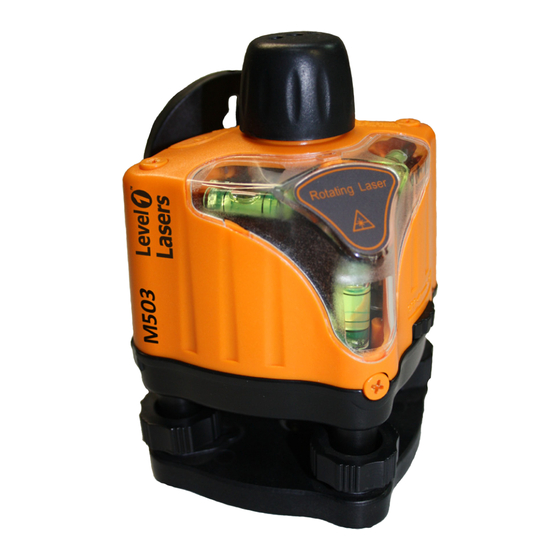

- Page 1 M503 Rotating Laser Level Model: M503...
-
Page 2: Operating Instructions
CONTENTS User Safety and Contents M503 Diagram Operating Instructions Batteries & Levelling Rotation Speed & Vertical Mode Specifications LR700 Receiver (included in M50322 kit) Warranty For Guides on how to use on site visit. www.level1lasers.com.au/m503.html User Safety • Laser output sign lies near the output aperture. •... - Page 3 M503 INTRODUCTION M503 Laser Unit 1. Wall/ Tripod Bracket 2. Dot Laser Output 3. Rotating Laser Output 4. Levelling Vials (see page 4) 5. Power & Rotation Speeds 6. Adjustment Wheels 7. Battery Cover 8. Tripod 5/8”-11tpi Mount (side) 9. Tripod 5/8”-11tpi Mount (bottom) www.level1lasers.com.au...
-
Page 4: Battery Instructions
M503 OPERATING INSTRUCTIONS Battery Instructions The M503 operates on 4 x standard Alkaline “AA” batteries, first remove the battery compartment cover by undoing the black locking knob. Insert batteries into the battery compartment as indicated, make sure the polarities are correct before replacing the cover. Levelling and Turning on Laser (Horizontal Operation) Screw the bottom base of the M503 laser onto the ground, a tripod (included in M50322 kit) or wall mounted then level the laser by first turning the levelling wheel for the “X” while looking at the “X” vial above it, once the... -
Page 5: Setting Rotation Speed
M503 OPERATING INSTRUCTIONS Setting Rotation Speed The M530 has variable rotation speeds, the speed is adjusted by the power knob. The more the knob is rotated anti clock wise the faster the laser head will rotate. A faster rotation is generally more suitable when using the LR700 receiver (included in the M50322 kit) and often a slow speed is good when wanting to see the laser visibly indoors. Note as battery power reduces rotation speed may slow down and the rotating head may require to be manually rotated to start powered rotation. It is also good practice to turn the M503 on and rotate to full speed then reduce down to the speed you desire. - Page 6 M503 OPERATING INSTRUCTIONS Vertical Operation Site Layout The M530 can be used for site squaring by aligning the dot laser beam along one axis of the 90 degree square and then using the receiver to pick up the rotating beam which is at 90 degrees to the dot laser beam. 90 degrees For Guides on how to use on site visit. www.level1lasers.com.au/m503.html Laser Wavelength 635nm <1mW Laser Class Range with LR700 Receiver 240m diameter Accuracy ±3mm/10m Rotation Speed Variable Tripod Threads 5/8” 11tpi IP Dust Water Resistance IP32 Workin Temperature C to +35 (in shade) Power 4 x “AA” Alkaline Low Power...
- Page 7 M503 OPERATING INSTRUCTIONS LR700 Receiver operation (included in the M50322 kit) The LR700 is an electronic laser receiver/detector and comes with a staff clamp bracket which allows you to attach the receiver to a stake or staff. Bubble Vial Laser Reception LED indicators Window Power Speaker Power up by pressing the power button, hold the receiver so the reception window is facing the rotating laser (upright for horizontal and on its side for vertical rotation). When the reception window is level with the rotating...
- Page 8 12 Month WARRANTY - LEVEL 1 LASERS CMI Industries Pty Ltd provides consumers with a warranty to our products, this is in addition to requirements of any relevant legislation such as the Competition and Consumer Act 2010. Definitions: “CMI”, “We” or “Our” “Level1Lases” refers to CMI Industries Pty Ltd (ABN 29 102 713 922) of 18b Tarkin Court, Bell Park, Victoria 3215 ph (03) 5240 3999 “You” or “Consumer” refers to the initial purchaser of the product. “Product” refers to goods manufactured by or for CMI Industries Pty Ltd under the brand of Level1Lasers. “Material” refers to material or component used in the construction and manufacture of the product. “Workmanship” refers to handling, assembly and manufacturing processes done by or for CMI Industries Pty Ltd in order to manufacture the products. “Warranty Period” For Level1Laser Products is 12 Months. Warranty period is from original purchase date, no extension is made in the event of warranty replacement products supplied or time spent being repaired. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. CMI warrants that our products will be free from defects in material and workmanship for the warranty period. CMI promises to repair or replace, free of charge, the product or part of product if found to be faulty due to defective workmanship or materials within the duration of the warranty as long as the following terms and conditions are met; • Product must not have been misused or abused, must not have incurred accidental damage or had un-authorised repair or tampering that has caused or contributed to its fault or failure. • You must contact CMI by phone, mail or email immediately when a fault or defect has become apparent and within the warranty period. • Product must be returned to store of purchase or directly to CMI, we will cover cost of postage only when sent by our reply paid Australia Post service (Australian Main land and Tasmania only) details will be provided upon phone, post or email communications with us. • CMI will cover cost of freight back of repaired or replaced product to original purchase store or you directly (depending on how it was sent Australian Main Land and Tasmania only). • CMI will determine whether to repair or replace the product or part of product on a case by case basis.
