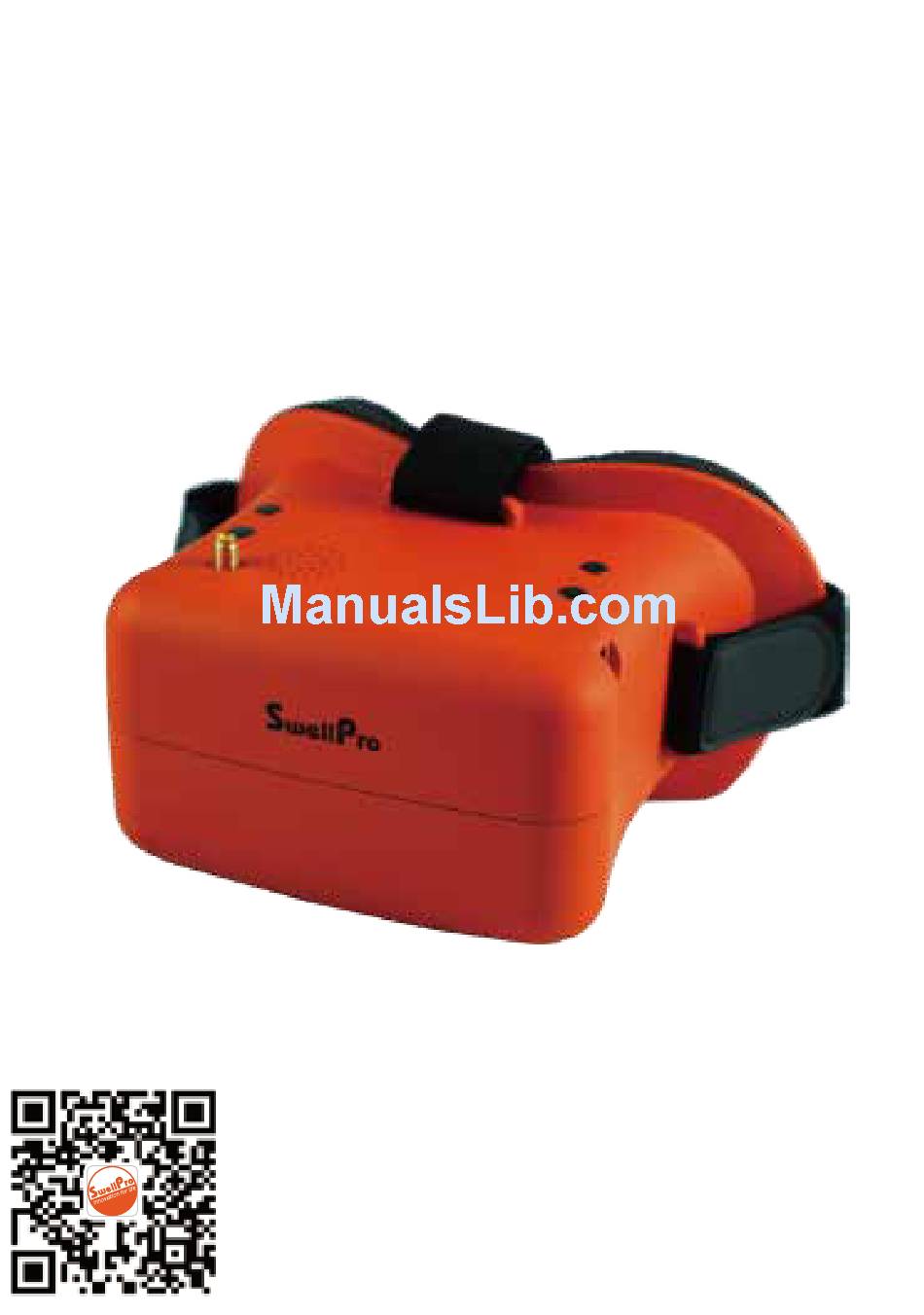

- Page 1 FPV GOGGLE GLASSES S2 User Manual V1.0 www.swellpro.com SWELLPRO TECHNOLOGY Co., LTD...
- Page 2 INDEX SYSTEM CONTENT FUNCTION DIAGRAM SIZE DIAGRAM QUICK START WEARING MODE ATTENTION INTRODUCTION OPERATION GUIDE CHANNEL FREQUENCY TABLE SPECIFICATIONS...
-
Page 3: System Content
SYSTEM CONTENT FPV GOGGLE X 1 5.8G Antenna X 1 AV cable X 1 Battery X 1 Charging cable X 1 User manual X 1 -01-... -
Page 4: Function Diagram
FUNCTION DIAGRAM AV IN DC IN MENU SEARCH AV IN Video Input MENU Single press to set up the Language, Contrast, Saturation, Restore circulation, these items can be adjusted and selected by “CH/+” and “FR/-”. SEARCH Single press to activate the Auto searching.If the appropriate image doesn't show up, please press "SEARCH"... - Page 5 SIZE DIAGRAM 180mm 134mm 15mm -03-...
- Page 6 WEARING MODE 1650mAh/7.4V(2S)Lion Video input function battery, supports USB 5V On the screen to show the charging, long life. remaining power. Screen size: 4.3" Screen resolution: 480x272px -04-...
- Page 7 ATTENTION Cautions before usage: 1. To protect pilot's eyesight, please don't wear the Glass for a long time. 2. Please fetch and handle the glass gently, any hard & fierce collision is forbidden. 3. Avoid using in high temperature in case of vapour generated inside. 4.
- Page 8 14. Do not use the battery when it emits an odor, high temperature, deformation, change in color or other abnormal phenomena; if the battery is in use or charging,you should stop charging or using immediately. 15. Don't charge the battery when wearing the equipment. 16.
- Page 9 3. Single press "MENU" button to set up more parameters, circulation swifts are available for Language (Chinese, English, French and Italian) , Contrast (0~100, default value 50), Lightness (0~100, default value 50), Saturation (0~100, default value 50), Restore (Restore to factory setting). Please stay at the very item to adjust values by "CH/+"...
-
Page 10: Specifications
SPECIFICATIONS Antenna: 5.8G 3dB Power dissipation: 400mA Frequency channel: built-in 40CH 5.8GHz A/V one key search receiver. Screen size: 4.3" Screen resolution: 480x272px Product size(mm): 180x135x100mm Packing size(mm): 240x170x113mm Net weight: 245g (battery not included) Battery weight: Power voltage: 7.4V/1650mAh standard configuration (2S smart lion battery, supports USB 5V charging) Working temperature: -20°C ~ 80°C... - Page 11 -09-...
- Page 12 SWELLPRO - PIONEER ON WATERPROOF DRONE! -10-...
