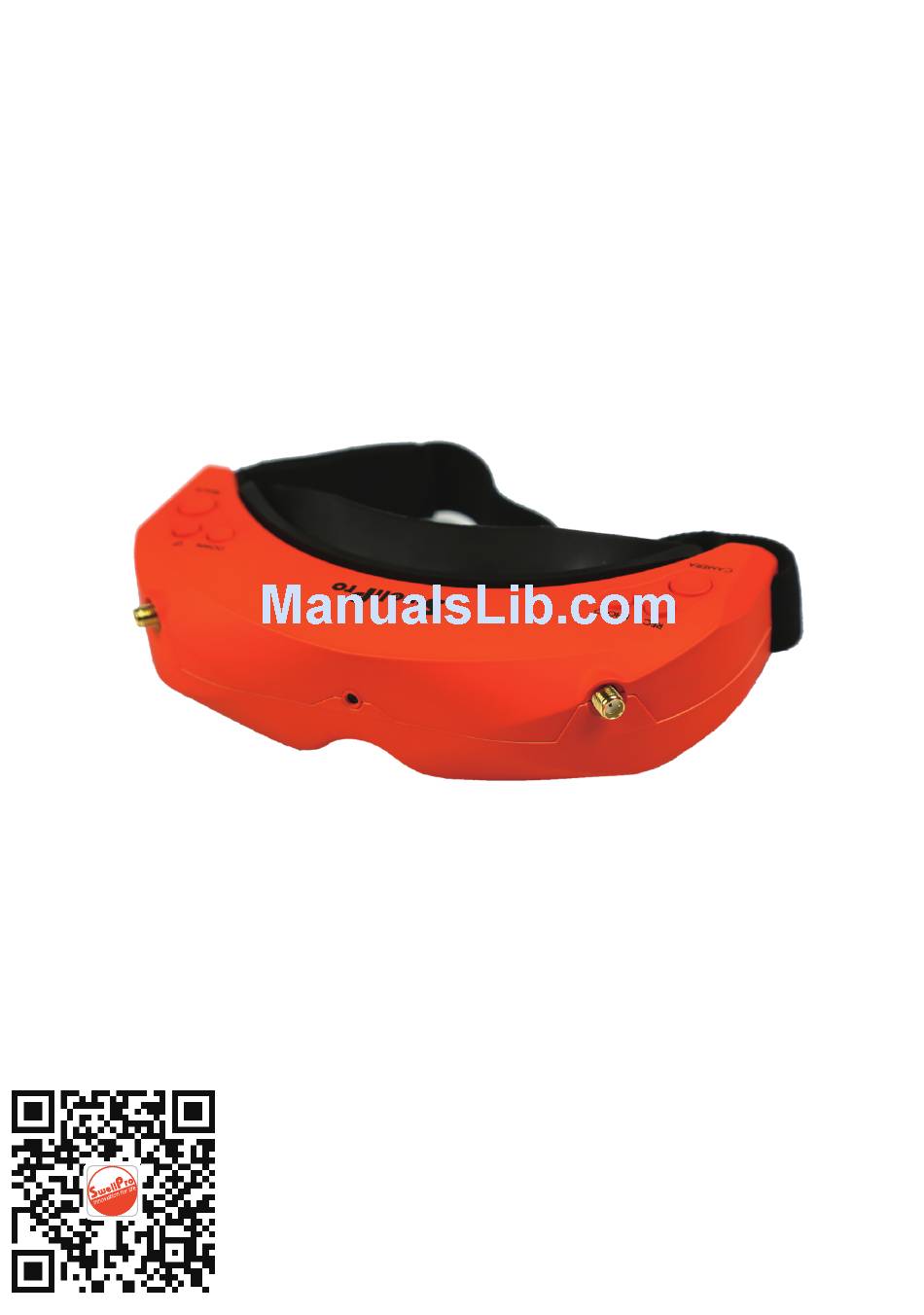

- Page 1 FPV GOGGLE S1 User Manual V1.0 www.swellpro.com SWELLPRO TECHNOLOGY Co., LTD...
- Page 2 INDEX SYSTEM CONTENT FUNCTION DIAGRAM OPERATION GUIDE QUICK START CHANNEL SERACH RF MODE FRONT CAMERA IMAGE ADJUSTMENT HEAD TRACKING RECORDING PLAYBACK HDMI IN AV IN AV OUT FORMAT SD CARD FACTORY SETTINGS SCREEN OSD Changing the Eyeshade SPECIFICATIONS...
-
Page 3: System Content
SYSTEM CONTENT Carry case X1 FPV Goggle glasses X1 R data cable X1 Futaba data cable X1 Power cable X1 WFLY data cable X1 5.8G 2dBi antenna X 2 Eyeshade X1 User manual X 1 -01-... -
Page 4: Function Diagram
FUNCTION DIAGRAM -02-... -
Page 5: Quick Start
OPERATION GUIDE SWELLPRO FPV Goggle glasses works well in routine diversity reception mode. In The mode, it displays common 2D images. In total, it supports 5 bands and 40 channels (Refer to the Specifications Description for details). QUICK START Preparation ·... - Page 6 · After exiting from the search menu, the device can work in the current channel. Functions of Buttons (For the functions of buttons in playback mode, see the description in the “Playback” section) TRACK Button: · In normal mode, press short to reset the head tracker. ·...
-
Page 7: Front Camera
· There are 4 default channels. You may adjust channels with the <UP/DOWN> button, in menu, you may set RF Band as “Custom”, then choose proper bands and adjust channels properly. (Always use the “Custom” function carefully, Closer frequency gapping will result in higher interference, the optimal frequency spacing is 40MHz). - Page 8 · Tilt Tracking range: (60° for left and right respectively), 90°(45° for left and right respectively), 60°(30° for left and right respectively), 90° as default. · Pan Correction: Via such setup, you may separately compensate the central deviation of Pan. You may set it at 0~10 levels, and the actual compensation angle is related to the turning angle of the cradle head.
-
Page 9: Format Sd Card
· When browsing the files in the storage card, to delete one file, press the < DELETE> button to pop up the “Delete” menu, and press the <OK> button to delete the desired file. · This device may be unable to identify the other files taken by other devices. HDMI IN ·... - Page 10 SCREEN OSD · Video recording icon: In normal state, such icon is white, in video recording, it is red. If you cannot take a video for any reason, for example, the video module is inactivated, the storage card is full or the faulty, such icon will be in red, like ·...
-
Page 11: Specifications
SPECIFICATIONS 30 degrees (Diagonal) Resolution 854X480(WVGA), 1,229,760 color sub‐pixels Binocular Display Brightness 350cd/ ㎡ Interpupillary 59‐69mm Adjustabl distance （IPD ） ISM 5.8GHz 40 Channel, Diversity receiver. Preset CH 1 CH2 CH3 Frequency 5733M / 5771M 5752M / 5790M 5809M / 5847M 5828M / 5866M Band CH 1 CH2 CH3 CH4 CH5 CH6 CH7 Wireless A 5865M 5845M 5825M 5805M 5785M ... - Page 12 SWELLPRO - PIONEER ON WATERPROOF DRONE! -10-...
