Summary of Contents for Bosscom Wireless HDMI

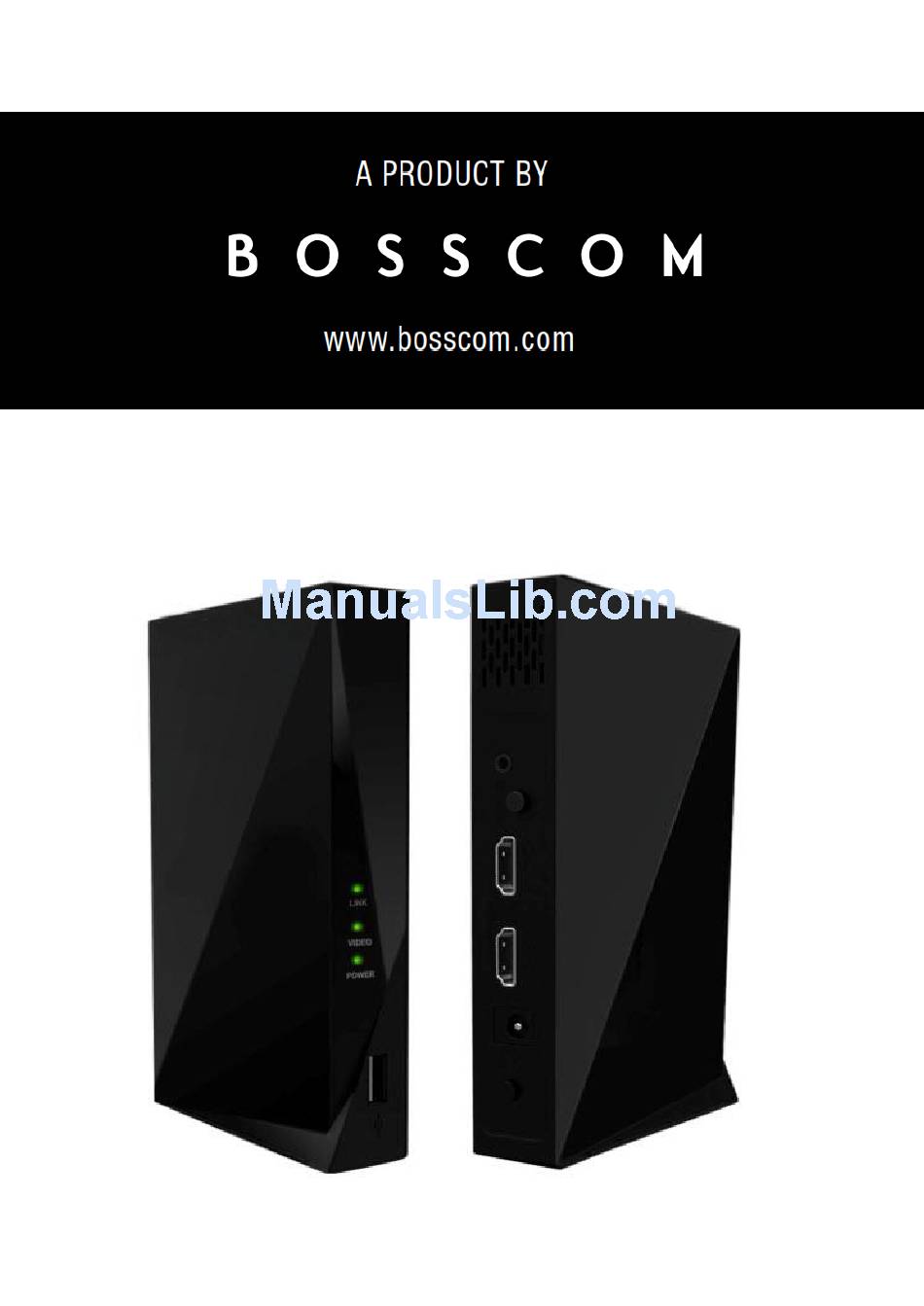

- Page 1 Wireless HDMI User Manual...
-
Page 2: Table Of Contents
2.1 Product specifications ....... 8 2.1 Product Features ........9 2.2 Packing Content ........10 2.4 Functions ..........11 2.4.1 Wireless HDMI transmitter functions ... 11 2.4.2 HDMI Receiver Functions ....12 2.4.3 Indicating LED ........14 2.5 Transmitter Connection ......14 3. -
Page 3: Important Information
1. Important Information Before you use the BOSSCOM Wireless HDMI transmitter and receiver, it is important that you read this user manual to get important information and instructions regarding wireless HD transmitter and receiver. Any defects in components or faulty workmanship... -
Page 4: Safety Precautions
1.1 Safety Precautions Danger: Electricity Hazard Power must be switched off when not in use, any power adaptors connected AV devices and TV should be plugged out. Power outlet: To prevent electricity shock, please check if the mains lead used on the receiver and transmitter corresponds to the power outlet. -
Page 5: Declaration Of Conformity
outlets or extend the length of power line, otherwise electric shock or fire could happen. Lighting stroke: disconnect the power adaptor when product is not used for a long time or in lighting stroke weather. Switch off the power when product is not in use to prevent electric shock or fire. -
Page 6: Trademark Information
Electromagnetic Compatibility and Radio Spectrum Matters (ERM) Short Range Devices. Radio equipment to be used in the 1GHz TO 40 GHz frequency range. Part 1: Technical Characteristics and Test Methods EN 301489-03(V1.4.1) Electromagnetic Compatibility and Radio Spectrum Matters(ERM); Part 3:Specific conditions for Short-Range Device(SRD) Operating on frequency between 9 kHz and 40 GHz EN 301489-17(V2.1.1) Electromagnetic Compatibility and Radio Spectrum... -
Page 7: Special Notice
1.4 Special Notice: Do not use this product nearby an aircraft or medical facility to prevent interference. Please handle this device carefully otherwise wireless wave may cause the abnormal video and audio (noise, blocked image…etc,) 1) Put it on the desk steadily; do not try to move it when connected. -
Page 8: Cleaning
This product has been manufactured and tested to comply with each country’s safety regulations. However, it doesn’t guarantee that interference would never happen in some specific environment. If interference does occur, please take away the interfering objects from transmitter and receiver. The optimal working distance between transmitter and receiver is 1 meter to 30 meters. -
Page 9: Product Features
Transmission 30m line of sight Distance System <1 ms Latency Antenna Omni bearing built-in antenna 100~ 240V alternating input current, Power 5V/3A DC output power adaptor Certificates FCC, CE Standard WHDI 1.0 Built in 3.5mm plug，external infrared Supported remote infrared remote control interface receiving connector... -
Page 10: Packing Content
If any item is missing or damaged, please contact the dealer. Main parts BOSSCOM Wireless HDMI transmitter and receiver Supplied Accessories: One USB lead, 2 holding base, one infrared transmitting connector, one user manual, 2 power adaptors, one... -
Page 11: Functions
2.4 Functions 2.4.1 Wireless HDMI transmitter functions Pre posed LED... -
Page 12: Hdmi Receiver Functions
Power LED: indicates if the system is powered. Video LED: indicates video output status Link LED: indicates device connection status USB interface: to connect PC or other source equipment. Postposition LED Power Button: to turn on or turn off system Power interface (DC IN JACK): to connect power adaptor. - Page 13 power LED: indicates if the system is powered video LED: indicates video receiving status Link LED: indicates device connection status USB interface: to connect USB mouse, keyboard or PS3. Postposition LED Power Button: to turn on or turn off system power input interface(DC IN Jack): to connect power adaptor HDMI interface: to connect HD display equipment.
-
Page 14: Indicating Led
Pair interface: to make pair 2.4.3 Indicating LED Transmitter BOSSCOM Receiver Wireless HDMI Working status Power Video Link Power Video Link ● ● ● ● ● Normal status ● ■ ● ● ★ Add device Green LED stays on; green LED flash quickly, valid input signal is lit, otherwise the lights off. - Page 15 Connect BOSSCOM Wireless HDMI with HDMI cable to source equipment, such as blue ray DVD, multi-media player, set top box and make sure they are correctly connected. Plug infrared connector to BOSSCOM Wireless HDMI transmitter, and make the transmitter connected to the receiver with infrared connector of blue ray DVD, multi- media player, set top box and PS3.
- Page 16 Connect BOSSCOM Wireless HDMI transmitter with HDMI cable to devices, like notebook, mini-computer mainframe, game platform and make sure they are perfectly connected. Connect BOSSCOM Wireless HDMI transmitter and devices, like blue ray DVD, multi-media player, set top box with USB cable.
-
Page 17: Receiver Connections
Connect USB mouse, keyboard, and gamepad to receiver through USB interface and make sure they are perfectly connected. Make pair between the devices: Connect the power adapters or display devices with BOSSCOM Wireless HDMI transmitter and receiver... -
Page 18: Troubleshooting
Press the make pair button on Receiver Press the make pair button on Transmitter, then connection light is flashing. Display device is showing progress bar. It takes about 3 minutes, making pair successful (the time depend on different environment, different wireless distance) After making pair, the connection is auto and the system begin to transport av signal. - Page 19 supported distance. Draw them closer and try it again. 1. Make sure the power adaptor is correctly connected and the voltage is Power LED 5V3A 2. Make sure the power supply would not be interrupted. Receiver 1. Make sure video and audio signals video can be transmitted to receiver indicating...
- Page 20 No sound 1. Make sure the source equipment or bad output support audio format. sound 2. Restart the transmitter and connect it again 3. Make sure there is no disturbance from the same frequency (4.9～5.9GHz) within 50 centimeter. Register Ensure the distance between transmitter and receiver doesn’t exceed supported failure distance.
-
Page 21: Fcc Id Warning
Other If any other problems occur, please problems restart the device and make connections again. 5. FCC ID Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 22: Ic Id Warning
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful... - Page 23 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired.
