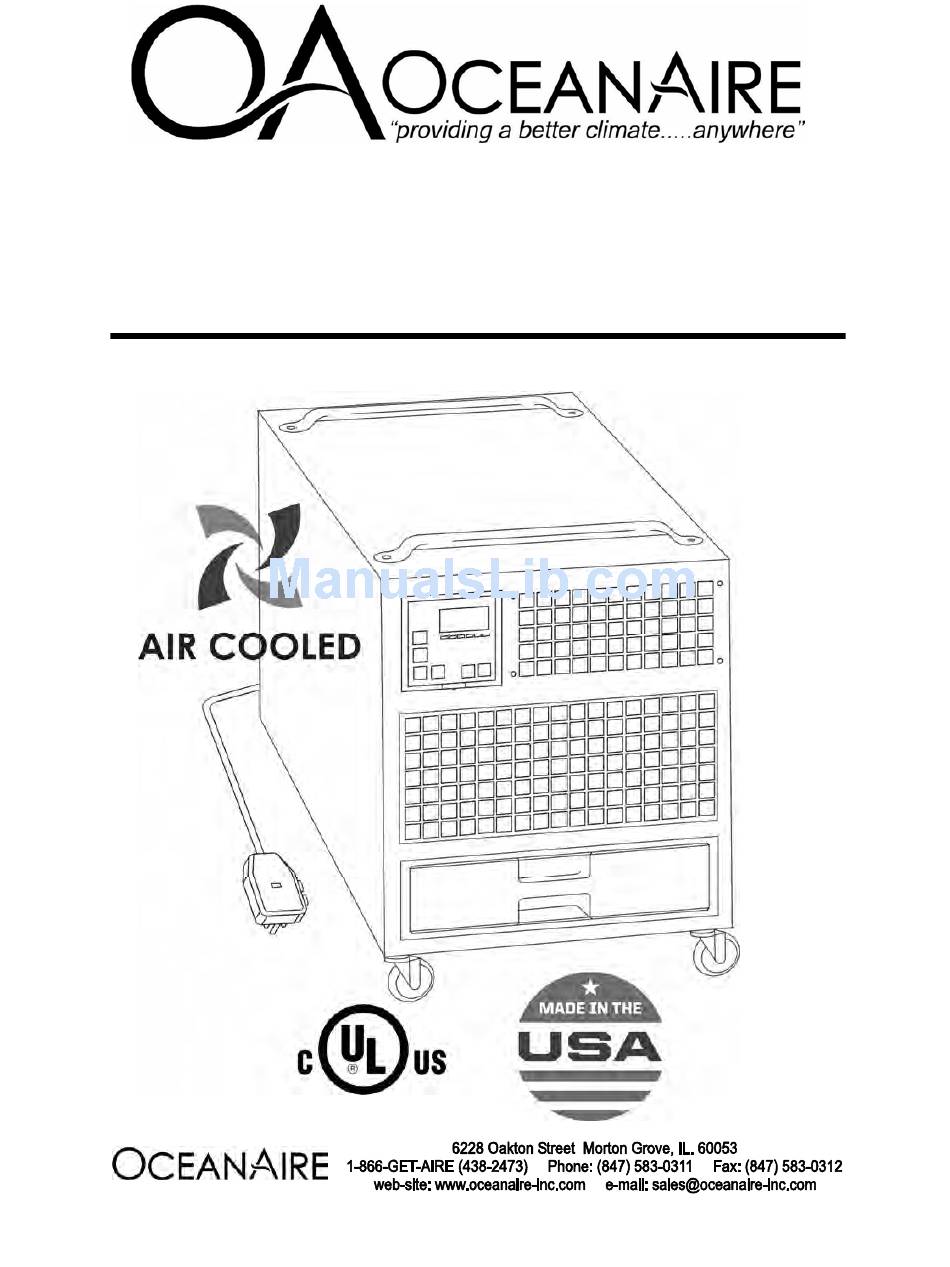

- Page 1 CAC series Cool Cube Portable Air-Cooled Spot Cooler ENGINEERING, INSTALLATION AND SERVICE MANUAL Form EISM-CAC, 110114 Rev 1...
-
Page 2: Table Of Contents
TABLE OF CONENTS PAGE GENERAL DESCRIPTION …......... PRODUCT DATA AND SPECIFICATIONS.... UNIT DESCRIPTION Standard Features........Applications / Operation......Electrical..........Condensate..........Installation..........Installation—Hanging Applications……… Installation—Permanently Connected….. Stacking Kit………………………………… Accessories……………………………….. 11-13 Deluxe Controller......... 14-15 SERVICE Troubleshooting Guide......Replacement Parts Procedure....Preventive Maintenance......Piping Schematic........ -
Page 3: General Description
GENERAL DESCRIPTION The Oceanaire CAC1211 is a portable air-cooled spot cooler designed for permanent or temporary spot cooling. The entire air conditioning unit has been built in an premium sheet metal cabinet, equipped with heavy-duty casters for mobility. The CAC1211 can be operated as a stand-alone spot cooler, or can be permanently in- stalled in a server rack, or above a drop ceiling. - Page 4 TECHNICAL SPECIFICATIONS MODEL: CAC1211 COOLING CAPACITY 12,000 BTUH VOLTAGE 115 V COOLING AMPS 12.0 A MAX FUSE SIZE 15 A COOLING WATTS 1180 W IN RUSH AMPS 63 A 10.0 COMPRESSOR TYPE ROTARY COMPRESSOR MOTOR 1 HP COMPRESSOR RLA 9.5 A COMPRESSOR LRA 50 A EVAPORATOR BLOWER...
-
Page 5: Standard Features
STANDARD FEATURES CABINET The CAC1211 Series spot cooler has a cabinet that is constructed of 18 gauge steel with a polyester powder coated finish. The matte black finish compliments any surrounding space, and the cabinet is lined with sound-absorbing insulation for cool, quiet comfort. The CAC1211 comes equipped with handles and premium swivel casters for portability and convenient set-up. - Page 6 APPLICATIONS SPOT COOLER The CAC1211 can be used in an open environment to cool specific objects or "spots". Spot Cooling is a convenient and economical way to provide air conditioning where cooling the entire space is impractical. Cool air is discharged from the unit and is directed where it is needed.
-
Page 7: Electrical
ELECTRICAL PORTABLE CONFIGURATION The CAC1211 is equipped with a 10 ft. power cord for ease of movement and portability. The cord is to be plugged into a 15 Amp receptacle. A dedicated circuit is required. MODEL PLUG CONFIGURATION RECEPTACLE 15A-125 VOLT CAC1211 NEMA-5-15R NEMA 5-15P... - Page 8 CONDENSATE RESERVOIR TANK The CAC1211, has a 2-gallon polyethylene tank for collecting condensate. The tank is located in the lower, front section of the unit. A high water level cut-out switch is used to stop the compressor and condenser fan automatically when the tank's pre-set water level has been reached.
- Page 9 INSTALLATION INSTRUCTIONS RECEIVING—INSPECTION: Upon receiving your CAC1211, inspect the packaging for any damage. All units are shipped on a skid, and packaged in a triple-wall carton for added protection. In shipment, some wear may occur on the packaging. If the packaging is heavily damaged or broken, file a claim with the freight company immediately.
-
Page 10: Installation-Hanging Applications
INSTALLATION—HANGING APPLICATION The CAC1211 may be installed above a space or above a drop ceiling, as required. The unit can be hung from a building’s structural beam by one of three means: · Using 5/16” -18 threaded rods secured into the top of the unit at the 4 corners. -
Page 11: Installation-Permanently Connected
INSTALLATION—PERMANENTLY CONNECTED The CAC1211 power cord may be removed and the unit be permanently connected to a power source for applications where desired. Once the CAC1211 is installed and se- cured for a stationary installation, the unit can be permanently wired. 1. -
Page 12: Stacking Kit
INSTALLATION—STACKING KIT, SK-1 Two or three CoolCube units are required when redundancy is critical, cooling large are- as, or high heat loads. The CAC1211 can be stacked on top of each other to produce a capacity of 24,000 or 36,000 BTUH, while maintaining the same foot print. To facilitate the stacking of the CoolCube units, a stacking kit, SK-1, is required for each additional unit. - Page 13 INSTALLATION—RACK MOUNTING KIT, RCK-1 The 19-Inch Rack Kit allows for the Cool Cube to be installed into any EIA-310-D 4-Post of 2-Post rack enclosure. The kit includes (2) heavy duty rails (4) side mounting brackets and a rear mounting rail. The rails have a vibration dampening foam layer secured to the top for noise reduction.
-
Page 14: Accessories
ACCESSORIES... -
Page 15: Accessories
ACCESSORIES CEILING PANEL DUCT KIT, CK-8 A ceiling panel kit is available for discharging the condenser air above a drop ceiling.. The ceiling panel duct kits are furnished with an 8-inch white vinyl coated flexible duct that allows for conven- ient installation. - Page 16 ACCESSORIES CONDENSATE PUMP KIT , CPC-1 The condensate pump provides for the automatic removal of condensate water during the cooling pro- cess. The pump is capable of pumping against a 20 foot head, allowing for the routing of the drain line above the drop-ceiling to a nearby drain.
- Page 17 ACCESSORIES DISCHARGE AIR NOZZLE KIT ASSEMBLY (CNK-1) The optional discharge nozzle kits are used to direct the conditioned air to a specific target area. By concen- trating the airflow, the nozzles increase the air velocity towards production lines to cool personnel or equip- ment.
- Page 18 ACCESSORIES—CONT’D EVAPORATOR RETURN AIR PLENUM, CEP-6 An evaporator return air plenum is available for installations where it is required to duct air to the inlet of the evaporator. The evaporator return air plenums allow the user to connect round duct (flexible or rigid) to the return air intake to reduce air noise and increase the number of options for solving difficult cooling problems.
-
Page 19: Deluxe Controller
Deluxe Electronic Controller The CAC1211 controller is equipped with many features for a more precise level of cool- ing and operation. Additionally, the controller can be removed from the unit and installed for remote operation, if desired—accessory parts may be required. When power is connected, the controller will display “888”... - Page 20 CONTROLLER PROGRAMMING MENU 1) Make sure the unit has power. 2) Pushing the POWER button, turn the unit “OFF”. 3) Press the following buttons in sequence “S-U-D-S”: 4) The display will begin flashing P1 and a number. If there is no display, repeat the sequence, making sure the unit has power, but is turned OFF.
- Page 21 CAC1211 PROGRAM PARAMETERS MODEL CODE SETTINGS CAC1211 P1 = 80, P2 = 50 NOTICE Program Parameters are NOT controller default values. They are Oceanaire Factory Settings DISPLAY FAULTS LAC….Low AC line power AAA…Failed Air Sensor (unit will not run) CON… Empty Condensate Bucket—Units with a bucket Condensate Pump Over-Flow Alarm—Units with pump High Pressure Cut-Out—Low condenser air supply correct problem, and re-set unit at HP RESET...
-
Page 22: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following steps and procedures are recommended for correcting the problems indicated. In the event that the problem can not be corrected, service may be required. PROBLEM: UNIT DOES NOT POWER UP CAUSE: Power interruption REMEDY: Check external power supply making sure that the disconnect is ON. Check for blown fuses or tripped circuit breakers. -
Page 23: Replacement Parts Procedure
REPLACEMENT PROCEDURE FOR PARTS IT IS RECOMMENDED THAT ALL OCEANAIRE UNITS BE SERVICED BY A LICENSED TECHNICIAN WARNING—TO AVOID INJURY, DISCONNECT UNIT POWER PRIOR TO SERVICING WARNING—HAZARDOUS MOVING PARTS DO NOT OPERATE UNIT WITH PANELS REMOVED A. FAN MOTORS 1. Remove cabinet's left-side panel (when looking at the front of the unit). 2. -
Page 24: Preventive Maintenance
PREVENTIVE MAINTENANCE ARCTICAIRE Spot Coolers are designed to last a long time and to give maximum performance and reliability with minimum maintenance. To prolong the life of the unit, regular maintenance must be performed as specified below: BLOWER MOTORS The motors on all units have permanently lubricated bearings. No oiling is necessary FILTERS A clogged filter will cause the unit to operate at greatly reduced efficiencies. -
Page 26: Wiring Diagram
WIRING DIAGRAM WHEN FIELD WIRING—-USE COPPER CONDUCTORS ONLY... - Page 27 MANUFACTURER’S LIMITED WARRANTY The Manufacturer (OceanAire, Inc.) warrants to the original owner that the Product will be free from defects in material or workmanship for a period not to exceed one (1) year from date of installation. If upon examination by the Manufacturer the Product is shown to have a defect in material or workmanship, during the warranty period, the manufacturer will repair or replace, at its option, that part of the Product which is shown to be defective.
- Page 28 USEFUL INFORMATION MODEL: SERIAL NUMBER: DATE PURCHASED: INSTALLED BY: DATE INSTALLED: For Technical Support, or to locate a distributor for service parts, contact Oceanaire at (847) 583-0311 or 1-866-GETAIRE (438-2473). Please indicate the Model Number and Serial Number of the unit to assure proper information and service parts.
