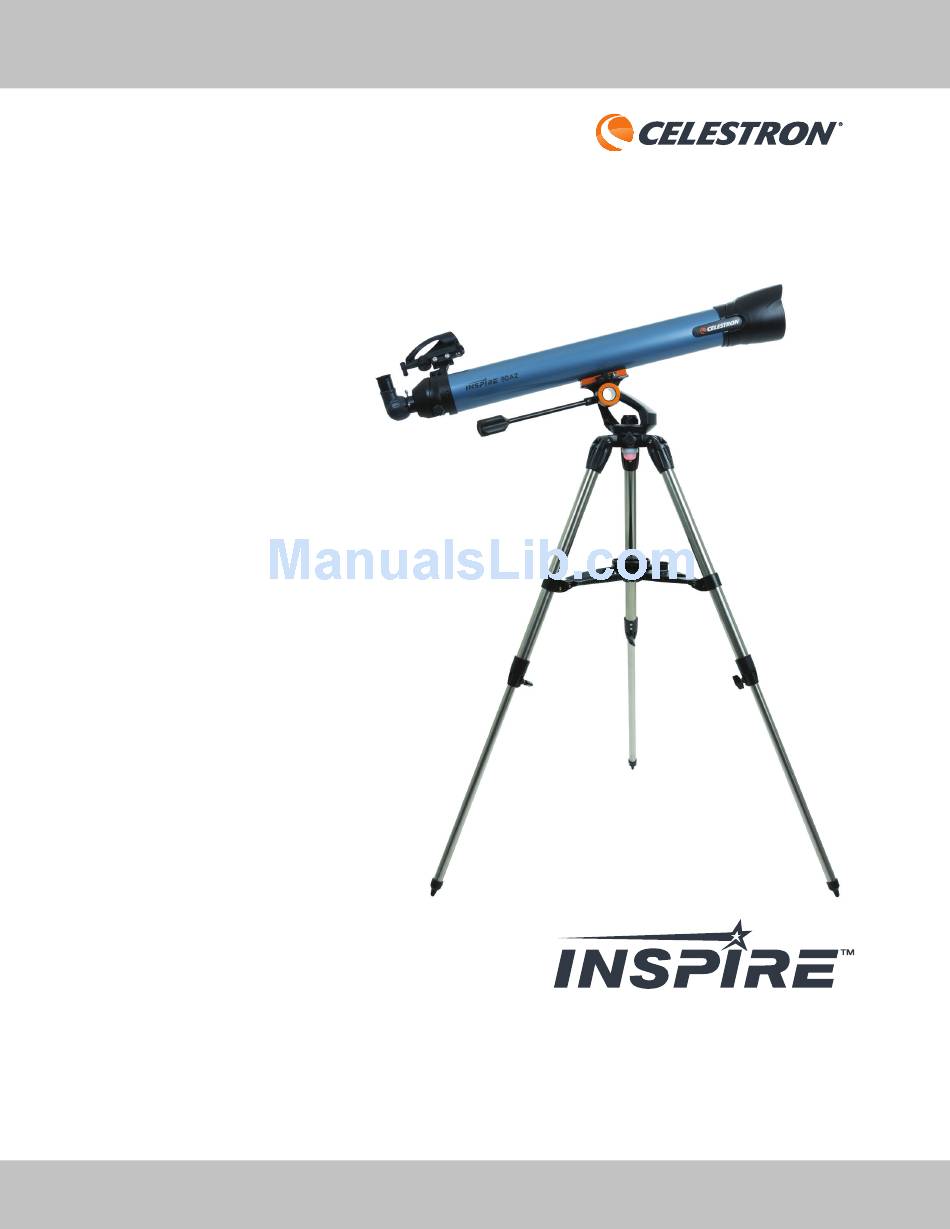

- Page 1 INSTRUCTION MANUAL Model #22405- Inspire 90AZ...
-
Page 3: What's In The Box
WHAT’S IN THE BOX We recommend saving your telescope box so it can be used to store the telescope when it is not in use. Unpack the box carefully as some parts are small. Use the parts list below to verify that all parts and accessories are present. PARTS LIST Telescope Tube StarPointer Pro Finderscope... -
Page 4: The Telescope Tube
THE TELESCOPE TUBE To attach the telescope tube to your tripod and mount: 1. Loosen the two tube mounting bolts on the side of the dovetail saddle on top of the mount. 2. Locate the dovetail bar on the bottom of the telescope tube and slide it into the saddle. - Page 5 THE STARPOINTER PRO FINDERSCOPE Your Inspire telescope comes with a StarPointer Pro Finderscope that you will use as a sighting tool when aiming the telescope at a target. To install the fi nderscope: 1. Slide the fi nderscope bracket into the dovetail slot on the telescope on the top of the focuser.
-
Page 6: Moving The Telescope
THE FOCUS MICROMETER Your Inspire telescope tubes come with a focus micrometer that allows you to repeatedly dial in focus for objects at different distances quickly and easily before you even move the scope to the target. The window on the side of the focuser allows you to see a numbered scale displaying a number from 0 to 10. -
Page 7: Your First Astronomical Observing Session
YOUR FIRST ASTRONOMICAL OBSERVING SESSION THE MOON Now you are ready to take your telescope out at night and do some real observing! Let’s start with the Moon. The Moon takes about one month go through a complete phase cycle, from new Moon to full Moon and back again. - Page 8 Turn the cap over and make sure your camera lens is centered in the opening in the lens cap. The better you have this centered, the easier it will be to take images through the telescope. 4. Take the 20 mm eyepiece and remove the rubber eyecup by pulling it straight off the eyepiece body.
- Page 9 IMAGING TIPS AND TRICKS Camera Controls The standard camera apps that come preinstalled with your smartphone offer very rudimentary controls and are designed to automatically adjust focus and exposure. This is not a problem for everyday photography such as landscapes or portraits, but can be a problem for imaging a planet or the Moon where you have a very bright object against a very black sky.
-
Page 10: Celestron Two Year Limited Warranty
NOTE: This warranty is valid to U.S.A. and Canadian customers who have purchased this product from an authorized Celestron dealer in the U.S.A. or Canada. Warranty outside the U.S.A. and Canada is valid only to customers who purchased from a Celestron’s International Distributor or Authorized Celestron Dealer in the specifi c country. Please contact them for any warranty service. - Page 11 RECYCLING BATTERIES Many old batteries end up in landfi ll, where they can leak harmful chemicals into the soil. You can help tackle this problem by recycling your batteries. Most supermarkets and shops that sell batteries now have collection bins for used batteries. Some town halls, libraries or schools may also set up collection points.
- Page 12 This product contains a button battery. If swallowed, it may cause severe injury or death in just two hours. Seek medical attention immediately. © 2016 Celestron • All rights reserved www.celestron.com 06-16 2835 Columbia Street • Torrance, CA 90503 U.S.A.
