Maverick MK1 HYBRID User Manual

Hide thumbs Also See for MK1 HYBRID:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK1 HYBRID and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maverick MK1 HYBRID

Summary of Contents for Maverick MK1 HYBRID

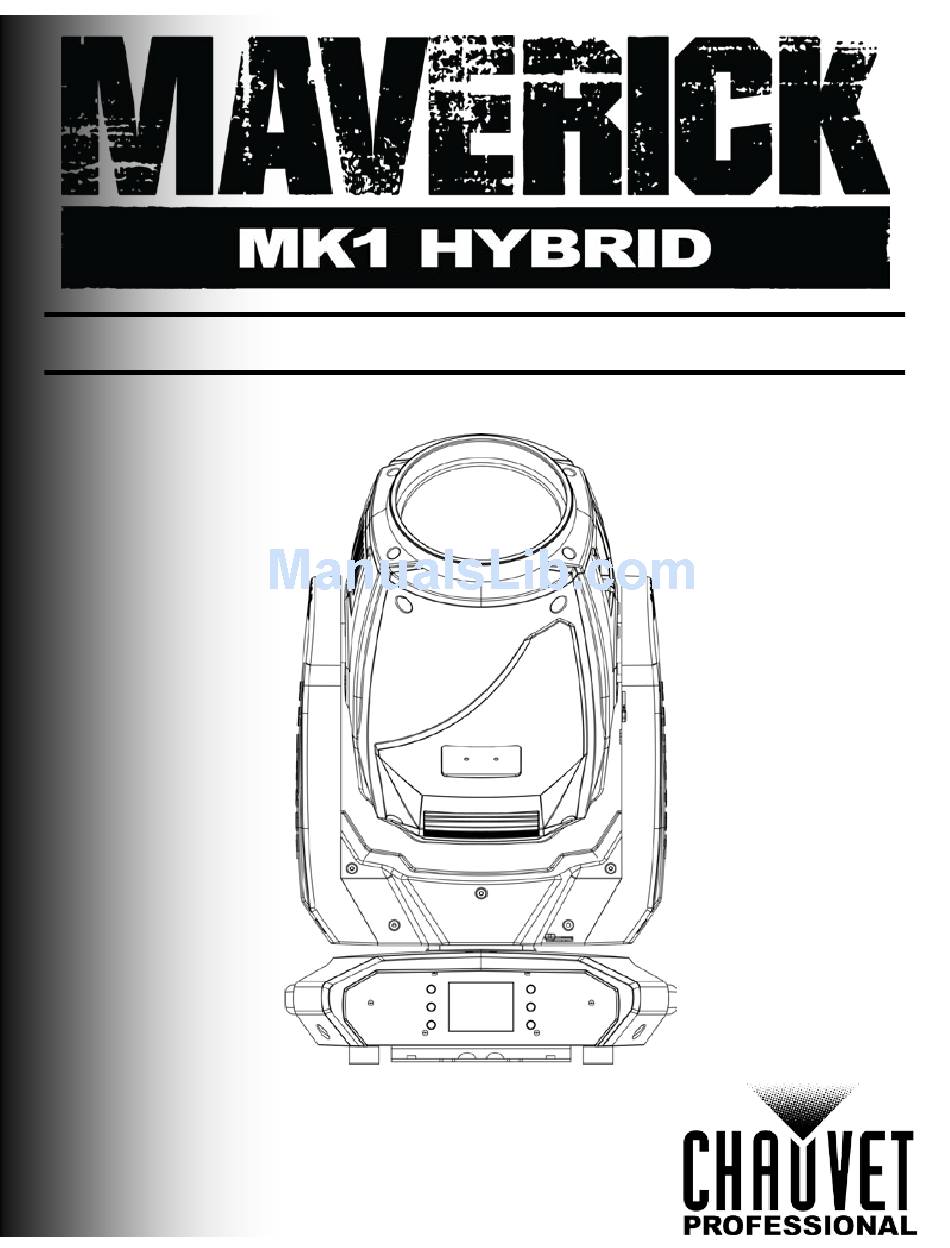

  • Page 1 User Manual...
  • Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions. Document The Maverick MK1 Hybrid User Manual Rev. 1 is the current edition of this manual. Go to www.chauvetprofessional.com for the latest version. Revision...

  • Page 3: Table Of Contents

    Manual Test ....................................30 Setup ..................................... 30 Network Settings ................................... 30 Ethernet To DMX ......................................30 IP Mode ........................................... 31 IP Address ........................................31 Subnet Mask ........................................31 Pan/Tilt Orientation ..................................32 Zoom Orientation ..................................32 Maverick MK1 Hybrid User Manual Rev. 2...
  • Page 4 System Information ............................... 35 Offset Mode ..............................36 5. Firmware Update ......................... 37 6. Technical Information ......................... 40 Product Maintenance ..........................40 7. Technical Specifications ......................40 Returns ............................42 Contact Us ............................43 -ii- Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 5: Before You Begin

    The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Product At A Use on Dimmer Auto Programs Glance Outdoor Use Auto-Ranging Power Supply Master/Slave Replaceable Fuse User-Serviceable Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 6: Safety Notes

    The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 7: Introduction

    NTRODUCTION Description Maverick MK1 Hybrid puts a world of options at your fingertips with advanced optics, overlapping 8 and 4-facet prisms, a versatile gobo package, a 3º – 18º zoom range in spot mode and 19º – 41º in wash mode, and a robust CMY color system.

  • Page 8: Dimensions

    Dimensions 14.69 in 11.26 in 373 mm 286 mm 16.48 in 418.5 mm 14.61 in 371 mm 24.76 in 629 mm 4.61 in 117 mm 12.1 in 15.51 in 307 mm 394 mm Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 9: Setup

    AC Power range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Maverick MK1 Hybrid, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

  • Page 10: Mounting

    · Place the Maverick MK1 Hybrid so that it can move freely without hitting anything or anybody. Leave enough slack on the cabled to prevent tension and pulling on the plugs. DO NOT side mount this fixture.

  • Page 11: Signal Connections

    The Maverick MK1 Hybrid can receive DMX, WDMX, Art-Net™, or sACN signal. The Maverick MK1 Hybrid has 2 Neutrik® etherCON® through ports, and 3- and 5-pin DMX in and out ports. For more information about DMX, read the DMX primer at: http://www.chauvetlighting.com/downloads/DMX_Primer_Rev9_ML_WO.pdf...

  • Page 12: Operation

    Operation 4. O PERATION The Maverick MK1 Hybrid has a touchscreen display as well as 6 control buttons. Navigate the Touchscreen menu structure by pressing the buttons, touching the images of the buttons on the sides of the Control Panel display, or touching the desired menu option on the display directly.
  • Page 13 Lamp off when DMX is off Ignition 10 ~ 255 set delay time for lamp ignition Delay Low Power 0 ~ 255 low power delay time Delay Reset Lamp Reset the remaining lamp time Maverick MK1 Hybrid User Manual Rev. 2...
  • Page 14 Current mode DMX Address 001 DMX Address Temperature Current temperature Information Fixture Information Fixture Hours 00000 Current active hours ArtNetIp 002.243.075.222 Current IP address SubMask 255.000.000.000 Current Subnet Mask 00.04.a3.08.00.00 MAC address -10- Maverick MK1 Hybrid User Manual Rev. 2...
  • Page 15 Prism2 Rotate 0 ~ 255 Frost 0 ~ 255 Zoom 0 ~ 255 Focus 0 ~ 255 Fine Focus 0 ~ 255 Beam Mode 0 ~ 255 Special 0 ~ 255 Function Maverick MK1 Hybrid User Manual Rev. 2 -11-...

  • Page 16: Operating Settings Configuration

    Press <ENTER>. IP Mode The IP address of the Maverick MK1 Hybrid can be set manually, by the network, or to a pre-set static address specific to each product. To set the IP Mode, follow the instructions below: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>.
  • Page 17 Use <UP> or <DOWN> to increase or decrease the value. Repeat until the Subnet Mask is set as desired. Press <ENTER>. In DHCP or Static IP Mode, the IP and SubMask menu settings have no effect on the product. Maverick MK1 Hybrid User Manual Rev. 2 -13-...

  • Page 18: Personality

    If using the buttons instead of the touchscreen, press <ENTER>. Control Mode The Maverick MK1 Hybrid can be set to respond to DMX, WDMX, Art-Net™ or sACN. The protocol configuration must be set for the product to respond correctly to the controller(s). See the Menu Map for more information.
  • Page 19 Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select NO (display will respond to touch) or YES (display will not respond to touch), or touch the display on the desired option. Press <ENTER>. Maverick MK1 Hybrid User Manual Rev. 2 -15-...
  • Page 20 Loss of Data In case of an input signal being lost in any way, the Maverick MK1 Hybrid will respond in one of two ways. The product will either hold the last signal received, or black out all LED output.
  • Page 21 Press <ENTER>. Factory Reset To restore the Maverick MK1 Hybrid to factory default settings, do the following: Navigate to the Settings menu. Use <UP> or <DOWN> to select Factory Settings, or touch the display where it says Factory Settings.

  • Page 22: Test Mode

    Test Mode Auto Test To perform an auto test of the Maverick MK1 Hybrid functions, follow the instructions below: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select Test, or touch the display where it says Test.

  • Page 23: Offset Mode

    FOCUS GOBO 2 1. Use <UP> or <DOWN> to select FOCUS GOBO 2. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. Maverick MK1 Hybrid User Manual Rev. 2 -19-...
  • Page 24 4. Press <ENTER>. MAC6 1. Use <UP> or <DOWN> to select MAC6. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. -20- Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 25: Dmx Values

    White + Beam Softener Beam Softener Beam Softener + Dark Orange Dark Orange Color Wheel 3 Dark Orange + Light Orange Light Orange Light Orange + Light Green Light Green Light Green + Pink Pink Maverick MK1 Hybrid User Manual Rev. 2 -21-...
  • Page 26 Gobo Wheel 2 (Rotating) 112ó129 Gobo 6 (Turning Forks) [Gobo Designs] 130ó150 Gobo 1 Shaking 151ó171 Gobo 2 Shaking 172ó192 Gobo 3 Shaking 193ó213 Gobo 4 Shaking 214ó234 Gobo 5 Shaking 235ó255 Gobo 6 Shaking -22- Maverick MK1 Hybrid User Manual Rev. 2...
  • Page 27 Auto soft filter off 180ó189 No function 190ó199 No function 200ó209 All reset 210ó219 All blackout enable 220ó229 All blackout disable 230ó239 Lamp Off 240ó245 No function 246ó250 No function 251ó255 No function Maverick MK1 Hybrid User Manual Rev. 2 -23-...
  • Page 28 White + Beam Softener Beam Softener Beam Softener + Dark Orange Dark Orange Color Wheel 3 Dark Orange + Light Orange Light Orange Light Orange + Light Green Light Green Light Green + Pink Pink -24- Maverick MK1 Hybrid User Manual Rev. 2...
  • Page 29 Gobo Wheel 2 (Rotating) 112ó129 Gobo 6 (Turning Forks) [Gobo Designs] 130ó150 Gobo 1 Shaking 151ó171 Gobo 2 Shaking 172ó192 Gobo 3 Shaking 193ó213 Gobo 4 Shaking 214ó234 Gobo 5 Shaking 235ó255 Gobo 6 Shaking Maverick MK1 Hybrid User Manual Rev. 2 -25-...
  • Page 30 Auto soft filter off 180ó189 No function 190ó199 No function 200ó209 All reset 210ó219 All blackout enable 220ó229 All blackout disable 230ó239 Lamp Off 240ó245 No function 246ó250 No function 251ó255 No function -26- Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 31: Gobo Designs - Rotating And Static Wheels

    7. Curvy Triangle 8. Random Dots 9. Symmetric Dots 10. Line 11. Laser Circle 12. Square Lines 13. Brick Out 14. Triangle Square 15. Shades 16. Crunch Bar 17. 5 Wave 18. Burst Maverick MK1 Hybrid User Manual Rev. 2 -27-...

  • Page 32: Color Wheels

    Operation Color Wheels Open Open Open -28- Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 33: Technical Information

    Base fan 2 error detected MAGENTA Magenta error detected YELLOW Yellow error detected CTO error detected X_cm1 Pan magnetic sensor 1 error detected X_cm2 Pan magnetic sensor 2 error detected X_op Pan optocoupler error Maverick MK1 Hybrid User Manual Rev. 2 -29-...

  • Page 34: Operating Settings Configuration

    If using the buttons instead of the touchscreen, press <ENTER>. Network Settings Ethernet To DMX The Maverick MK1 Hybrid can convert a single Ethernet input signal to a single DMX output signal. To activate or deactivate the Ethernet to DMX function, do the following: Navigate to the Setup menu.

  • Page 35: Ip Mode

    Operation IP Mode The IP address of the Maverick MK1 Hybrid can be set manually, by the network, or to a pre-set static address specific to each product. To set the IP Mode, follow the instructions below: Navigate to the Setup menu.

  • Page 36: Pan/Tilt Orientation

    Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select NO (do not calibrate) or YES (calibrate), or touch the display where it says the desired option. Press <ENTER>. Follow the instructions, touching the points as they appear on the display. -32- Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 37: Touchscreen Lock

    Press <ENTER>. WDMX Reset To reset the WDMX connection from the Maverick MK1 Hybrid, do the following: Navigate to the Setup menu. Use <UP> or <DOWN> to select WDMX Reset, or touch the display where it says WDMX Reset.

  • Page 38: Backlight Timer

    Loss of Data In case of an input signal being lost in any way, the Maverick MK1 Hybrid will respond in one of two ways. the product will either hold the last signal received, or black out all LED output.

  • Page 39: Reset Functions

    Press <ENTER>. System Information All information about the current status of the Maverick MK1 Hybrid is available through the product’s Sys Info menu. To view this information, follow the instructions below: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>.

  • Page 40: Offset Mode

    MAC Address To assign the fourth, fifth, or sixth digit of the MAC address, do the following: 1. Use <UP> or <DOWN> to select MAC4, MAC5, or MAC6. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the value, from 000–255. 4. Press <ENTER>. -36- Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 41: Firmware Update

    IRMWARE PDATE The following steps apply to the Windows® 7 operating system: Step 1 Connect the Maverick MK1 Hybrid to a computer with an ethernet cable. Verify the network with the Maverick MK1 Hybrid is connected to the computer. Step 2 Set the control protocol on the Maverick MK1 Hybrid to ArtNet in Single Control mode.
  • Page 42 Type 2.255.0.0 into the IP address bar. Press <Tab> on your keyboard. The Subnet mask bar should automatically populate as 255.0.0.0. If not, then enter it manually. Ignore the Default gateway bar. -38- Maverick MK1 Hybrid User Manual Rev. 2...
  • Page 43 Information) and checking that the version number matches the name of the file on the computer. Step 15 Disconnect the Maverick MK1 Hybrid from the computer. The firmware update is complete. The examples shown are for illustrative purposes. Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 44: Technical Information

    Illuminance @ 15 m (2°) 212,100 lux Illuminance @ 15 m (3°) 123,200 lux Illuminance @ 5 m (18°) 25,800 lux Illuminance @ 5 m (19°) 16,000 lux Illuminance @ 5 m (41°) 2,235 lux -40- Maverick MK1 Hybrid User Manual Rev. 2...
  • Page 45 Amphenol XLRnet 27 or 30 Thermal Max. External Temperature Cooling System 113 °F (45 °C) Fan-Assisted Convection Ordering Product Name Item Name Item Code UPC Number Maverick MK1 Hybrid MAVERICKMK1HYBRID 08011202 781462215507 Maverick MK1 Hybrid User Manual Rev. 2 -41-...

  • Page 46: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). -42- Maverick MK1 Hybrid User Manual Rev. 2...

  • Page 47: Contact Us

    Voice: +52 (728) 690-2010 Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Maverick MK1 Hybrid User Manual Rev. 2...
