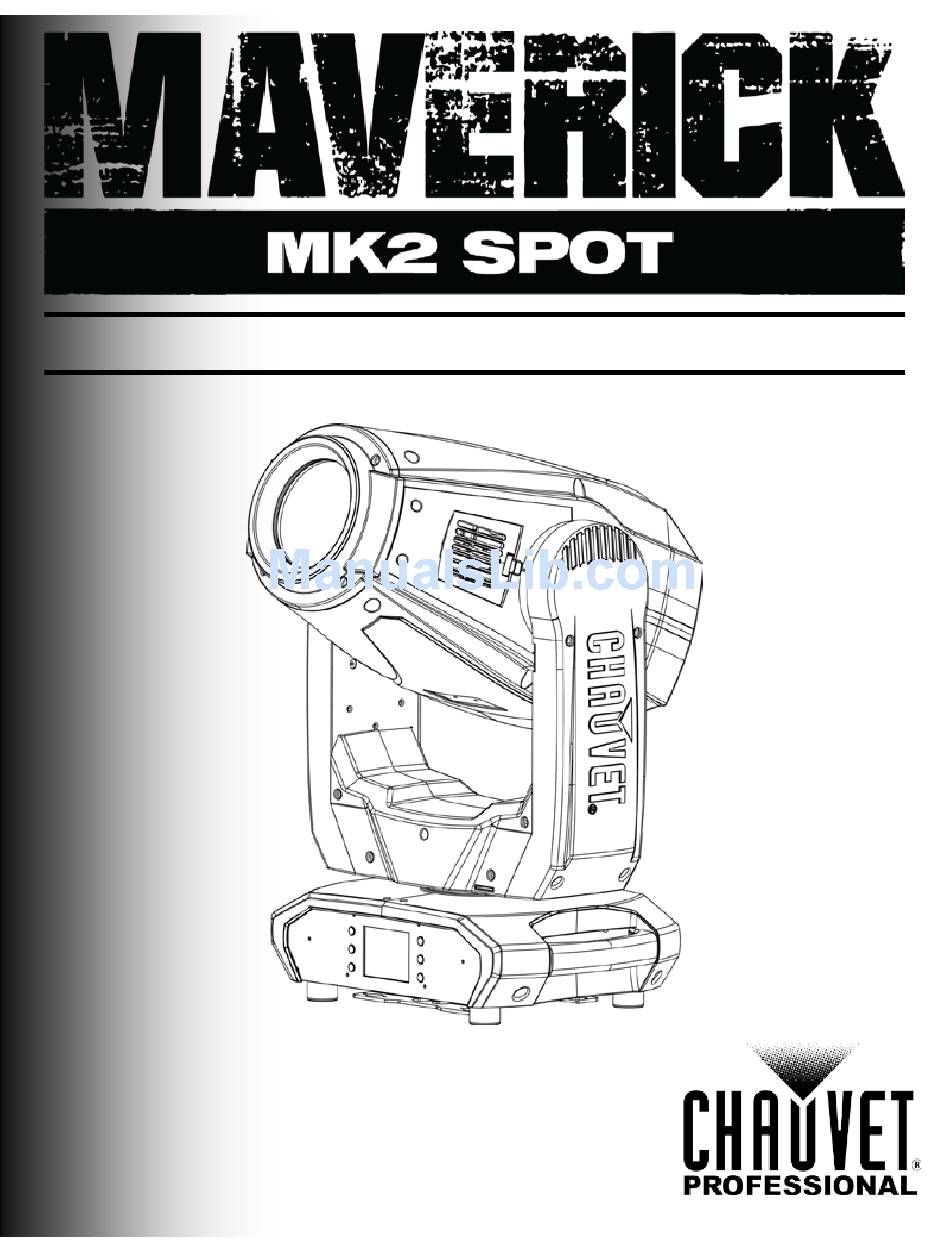

  • Page 1 User Manual...
  • Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions. The Maverick MK2 Spot User Manual Rev. 4 supersedes all previous versions of this manual. Document Discard any older versions of this manual and replace with this version.

  • Page 3: Table Of Contents

    Color Wheel ..................................26 Gobo Replacement ....................................27 5. Firmware Update ..............................28 6. Technical Information ............................31 Product Maintenance ................................31 Error Indication ..................................31 7. Technical Specifications ............................. 32 Returns ..................................33 Contact Us ................................34 Maverick MKII Spot User Manual Rev. 4...

  • Page 4: Before You Begin

    The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Product At A Use on Dimmer Auto Programs Glance Outdoor Use Auto-Ranging Power Supply Master/Slave Replaceable Fuse User-Serviceable Maverick MK2 Spot User Manual Rev. 4...

  • Page 5: Safety Notes

    In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. Maverick MK2 Spot User Manual Rev. 4...

  • Page 6: Introduction

    All of this projected through a 13° to 37° zoom system. With the ability to control the Maverick MK2 Spot over DMX, Art-Net, or by WDMX, there is an option for every situation. As an added feature, this fixture can receive Art-Net in, and send out DMX, simplifying cable runs.

  • Page 7: Dimensions

    9.8 in 549 mm 249 mm 15.6 in 396 mm 15.1 in 384 mm 9.8 in 249 mm 11.1 in 282 mm 26.4 in 14.6 in 671 mm 371 mm 4.5 in 114 mm Maverick MK2 Spot User Manual Rev. 4...

  • Page 8: Setup

    AC Power range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Maverick MK2 Spot, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

  • Page 9: Mounting

    When mounting the product on the floor, make sure that the product and cables are away from people and vehicles. · Place the Maverick MK2 Spot so that it can move freely without hitting anything or anybody. · Leave enough slack on the cable to prevent tension and pull on the plugs.

  • Page 10: Signal Connections

    Setup Signal Connections The Maverick MK2 Spot can receive DMX, sACN or Art-Net™ signals. The Maverick MK2 Spot has 2 etherCON® through ports, and 3- and 5-pin DMX In and Out ports. For more information about DMX, read the DMX primer at: http://www.chauvetlighting.com/downloads/DMX_Primer_Rev9_ML_WO.pdf...

  • Page 11: Operation

    4. O PERATION The Maverick MK2 Spot has a touchscreen display as well as 6 control buttons. Navigate the menu structure by pressing the buttons, touching the images of the buttons on the sides of the display, or touching the desired menu option on the display directly.
  • Page 12 Set the dimmer curve I Square Scurve Smooth Dimmer Speed Change the dimmer speed Fast Pan/Tilt Iris/ Prism Color/CMY + CTO Reset Function YES/NO Reset individual functions to factory Gobo/Gobo Rotate Zoom/Frost/ Focus Maverick MK2 Spot User Manual Rev. 4...
  • Page 13 0 ~ 255 Prism Rotate 0 ~ 255 Iris 0 ~ 255 Frost 0 ~ 255 CMY Macro 0 ~ 255 CMY Macro 0 ~ 255 Speed Special 0 ~ 255 Function -10- Maverick MK2 Spot User Manual Rev. 4...
  • Page 14 0 ~ 255 Prism Rotate 0 ~ 255 Iris 0 ~ 255 Frost 0 ~ 255 CMY Macro 0 ~ 255 CMY Macro Speed 0 ~ 255 Special Function 0 ~ 255 Maverick MK2 Spot User Manual Rev. 4 -11-...

  • Page 15: Operating Settings Configuration

    Press <ENTER>. IP Mode The IP address of the Maverick MK2 Spot can be set manually, by the network, or to a pre-set static address specific to each product. To set the IP Mode, follow the instructions below: Press <MENU>...
  • Page 16 Use <UP> or <DOWN> to increase or decrease the value. Repeat until the Subnet Mask is set as desired. Press <ENTER>. In DHCP or Static IP Mode, the IP and SubMask menu settings have no effect on the product. Maverick MK2 Spot User Manual Rev. 4 -13-...

  • Page 17: Personality

    If using the buttons instead of the touchscreen, press <ENTER>. Control Mode The Maverick MK2 Spot can be set to respond to DMX, WDMX, Art-Net™ or sACN. The protocol configuration must be set for the product to respond correctly to the controller(s). See the Menu Map for more information.
  • Page 18 Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select NO (display will respond to touch) or YES (display will not respond to touch), or touch the display on the desired option. Press <ENTER>. Maverick MK2 Spot User Manual Rev. 4 -15-...
  • Page 19 Press <ENTER>. Loss of Data In case of an input signal being lost in any way, the Maverick MK2 Spot will respond in one of two ways. The product will either hold the last signal received, or black out all LED output.
  • Page 20 Press <ENTER>. Factory Reset To restore the Maverick MK2 Spot to factory default settings, do the following: Navigate to the Settings menu. Use <UP> or <DOWN> to select Factory Settings, or touch the display where it says Factory Settings.

  • Page 21: Test Mode

    Operation Test Mode Auto Test To perform an auto test of the Maverick MK2 Spot functions, follow the instructions below: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select Test, or touch the display where it says Test.

  • Page 22: Offset Mode

    FOCUS GOBO 2 1. Use <UP> or <DOWN> to select FOCUS GOBO 2. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. Maverick MK2 Spot User Manual Rev. 4 -19-...
  • Page 23 4. Press <ENTER>. MAC6 1. Use <UP> or <DOWN> to select MAC6. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. -20- Maverick MK2 Spot User Manual Rev. 4...

  • Page 24: Dmx Values

    Clockwise gobo scroll, fast to slow 192ó255 Counter-clockwise gobo scroll, slow to fast 000ó063 Rotating Gobo Index 064ó145 Clockwise rotating, fast to slow Gobo Rotating 1 146ó149 Stop 150ó231 Counter-clockwise rotating, slow to fast 232ó255 Bounce effect Maverick MK2 Spot User Manual Rev. 4 -21-...
  • Page 25 Slow zoom in, fast zoom out (slow to fast) 192ó255 Slow zoom out, fast zoom in (slow to fast) Frost 000ó255 0–100% 000ó009 No function CMY Macro 010ó255 CMY macro CMY Macro Speed 000ó255 fast to slow -22- Maverick MK2 Spot User Manual Rev. 4...

  • Page 26: 24Ch

    Random effect from slow to fast 216ó255 Open 000ó001 No function 002ó128 Virtual Shutter Shaking strobe, slow to fast Fade in/out, slow to fast 129ó255 Cyan 000ó255 0–100% Magenta 000ó255 0–100% Yellow 000ó255 0–100% 000ó255 0–100% Maverick MK2 Spot User Manual Rev. 4 -23-...
  • Page 27 Clockwise rotating, fast to slow Gobo Rotating 2 146ó149 Stop 150ó231 Counter-clockwise rotating, slow to fast 232ó255 Bounce effect Focus 000ó255 0–100% Zoom 000ó255 0–100% 000ó004 No function Prism 005ó255 Prism effect -24- Maverick MK2 Spot User Manual Rev. 4...
  • Page 28 Fan auto 216ó220 no function 221ó225 Iris Fast mode 226ó230 Iris Smooth mode 231ó235 XY swap on 236ó240 XY swap off 241ó245 no function 246ó250 XY smooth mode 251ó255 XY fast mode Maverick MK2 Spot User Manual Rev. 4 -25-...

  • Page 29: Gobo Designs

    Gobo Designs Circuits Ring of Rings Checker Vortex Triangle Star Field Lenticular Glass Spiral Dot Chiclets Splot Breakup Wavy Bar Shower Glass Lenticular Glass Color Wheel Yellow Magenta Blue Open Green Orange -26- Maverick MK2 Spot User Manual Rev. 4...

  • Page 30: Gobo Replacement

    Gobo Holder Gobo Replacement Diagrams Gobo Holder Gobo Retaining Spring Gobo Wheel 2: Gobo Wheel 2 can be accessed from below Gobo Wheel 1. Gobo Wheel 1 Remove the lower access panel. Maverick MK2 Spot User Manual Rev. 4 -27-...

  • Page 31: Firmware Update

    IRMWARE PDATE The following steps apply to the Windows® 7 operating system: Step 1 Connect the Maverick MK1 Hybrid to a computer with an ethernet cable. Verify the network with the Maverick MK1 Hybrid is connected to the computer. Step 2 Set the control protocol on the Maverick MK1 Hybrid to ArtNet in Single Control mode.
  • Page 32 Type 2.255.0.0 into the IP address bar. Press <Tab> on your keyboard. The Subnet mask bar should automatically populate as 255.0.0.0. If not, then enter it manually. Ignore the Default gateway bar. Maverick MK2 Spot User Manual Rev. 4 -29-...
  • Page 33 Sys Info (System Information) and checking that the version number matches the name of the file on the computer. Step 15 Disconnect the Maverick MK1 Hybrid from the computer. The firmware update is complete. The examples shown are for illustrative purposes. -30-...

  • Page 34: Technical Information

    Base fan 2 error detected MAGENTA Magenta error detected YELLOW Yellow error detected CTO error detected X_cm1 Pan magnetic sensor 1 error detected X_cm2 Pan magnetic sensor 2 error detected X_op Pan optocoupler error Maverick MK2 Spot User Manual Rev. 4 -31-...

  • Page 35: Technical Specifications

    Channel Range etherCON® 24 or 32 Thermal Max. External Temperature Cooling System 113 °F (45 °C) Fan-Assisted Convection Ordering Product Name Item Name Item Code UPC Number Maverick MK2 Spot MAVERICKMK2SPOT 08011154 781462215026 -32- Maverick MK2 Spot User Manual Rev. 4...

  • Page 36: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Maverick MK2 Spot User Manual Rev. 4 -33-...

  • Page 37: Contact Us

    Voice: +52 (728) 285-5000 Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Maverick MK2 Spot User Manual Rev. 4...
