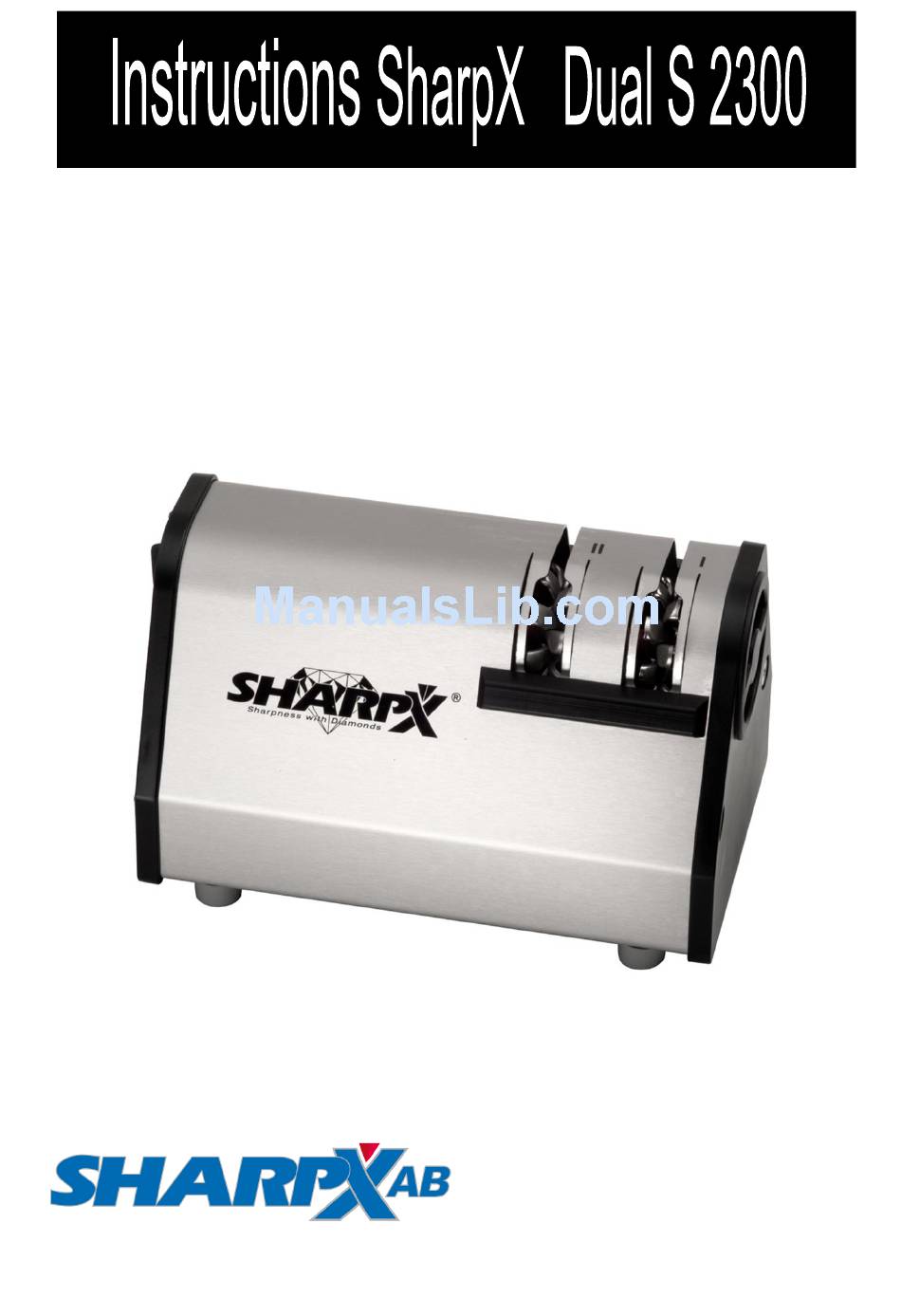

- Page 1 Patent Machine No.: Keep for future use! Issue date: SharpX Dual S 2300 Manufacturer: ® SHARPX AB Box 287. S 59123 Motala SWEDEN Phone / Fax: +46 (0) 141 57929 Email: info@sharpx.se www.sharpx.se USM 635 en...
-
Page 2: Table Of Contents
Chapter Page 1 ..General ........3 ..Notes regarding warranty and damage prevention ......... 3 ..Intended use ........3 ..Description and characteristics ..4 ..Safety guidelines ....... 5 ..Overview ........... 7 ..Technical data and dimensions ..8 2 .. -
Page 3: General
This machine is solely intended for sharpening Result of action of clean knives. Any other use of the SharpX This symbol stands for a requirement could constitute a hazard and is prohibited. or result of an action. -
Page 4: Description And Characteristics
Description and characteristics Device description Table version according to the latest findings ― in modern and efficient sharpening of tools. Design based on international accident pre- ― vention regulations. High-performance drive with optimal speed ― for grinding. Grinding wheels quick and easy to replace. ―... -
Page 5: Safety Guidelines
8. Wear appropriate clothing Safety guidelines Do not wear loose fitting clothes or jewelry ― Safety guidelines according to EN 61029-1:2010 which may get caught by moving parts. 1. Keep your work area in good order Do not use gloves. ―... - Page 6 15. Avoid accidental start-up Make sure that the machine is switched off 18. Attention ― before connecting plug to power outlet. Only use replacement parts recommended ― 16. Pay attention by the manufacturer. Pay attention to what you are doing. Work The use of other inserts and accessories ―...
-
Page 7: Overview
Overview ON/OFF Knife handle Grinding Grinding switch support Diamond wheel fine Diamond wheel coarse Grinding shaft handle Electric motor (25 W) Rubber belt Type SharpX Dual S 2300 190 mm 180 mm 315 mm USM 635 en... -
Page 8: Technical Data And Dimensions
Technical data and dimensions Type SharpX DUAL S 2300 Power supply 230 V, 50 Hz AC Special voltage 110 V, 60 Hz, 25 W Rated power 25 W Current 0,45A Fuse max.10 A delay fuse Protection class IP 55 Rpm drive 1550 r/min Rpm grinding wheel No.1... -
Page 9: Getting Started
Declaration of conformity water! ― Installation See info 5.1 Changing of diamond and The SharpX may only be operated in a dry wheels. working area separated from food. Please make sure that: Color spots may appear on the grinding parts. -
Page 10: Operation
Grinding wheels and other tools not specified by us for this machine must not be used. Safety guidelines Before using the SharpX, please follow the following safety guidelines: Concentrate on your work ― Do not talk to other persons ―... -
Page 11: Tips For Sharpening
In order to make a knife sharp and to keep it sharp for as long as possible, the edge must be sharpened to a convex form and to the correct angle. When you sharpen with the SharpX Dual sharpener equipped with one coarse sharpening station (step... -
Page 12: Sharpening Coarse
SHARPENING COARSE 4.2.1 The knife must be clean before sharpening. Sharpening is easier if you hold the knife with one hand and help steer the blade with the other hand. It is im- portant that the knife is not held at an angle, but is steered vertically into the slot. Sharpen the knife until there is a wire edge. -
Page 13: Sharpening Fine
The knife edge now has a centred, ultimate, convex form and the knife is ready to use. RE-SHARPENING When the SharpX system is used regularly on a knife, sharpening will be easier as it will take shorter time to achieve the wired edge, mentioned above. -
Page 14: Maintenance / Replacement Of Diamond Grinding Wheels
Maintenance / replacement of diamond grinding wheels. Separate SharpX from electrical power supply system before start- ing any maintenance work! 5.1 Changing of diamond wheels. Turn the handle anti-clockwise until it stops. Carefully remove complete wheels with hand- Remove lock washer on grinding wheel. Cau- tion: it may jump out. -
Page 15: Wear Parts
The owner has the obliga- tion to dispose of these in accord- 2300-40 ance with the legal regulations in a proper and environmentally friendly 2016-04-01 manner at his own cost. DUAL S 2300. 50Hz USM 635 en... -
Page 16: Ec Declaration Of Conformity
Manufacturer: SHARPX AB Box 287. S 59123 Motala SWEDEN Phone / Fax: +46 (0) 141 57929 Email: info@sharpx.se www.sharpx.se EC declaration of conformity in accordance with EC Machinery Directive 2006/42/EC, attachment II A We hereby declare that, due to its design and type as well as the version placed on the market by us, the machine described below is conform with corresponding essential safety and health requirements of the relevant EC directives.
