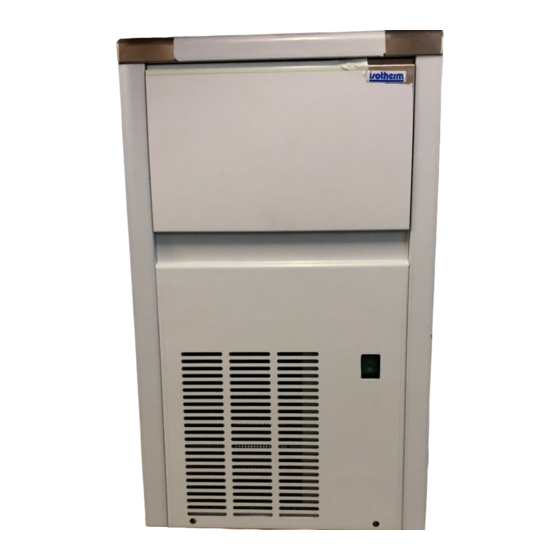

- Page 1 Ice maker Clear installation and first usage...
- Page 2 Like all Indel Webasto Marine products the most important thing is: VENTILATION Producing ice requires a higher heat removal so ventilation must be more than adequate. The ice-maker gets fresh air off the front grid and blows it off the back much hotter.
- Page 3 The ice-maker gets fresh air off the front grid and blows it out off the back...
- Page 4 Connection to boat main water system On the back of the ice-maker there are all the necessary connections to connect it on the boat main water system. The ice-maker is supplied with a water inlet hose (blue) and a water outlet hose (grey). The package also inlcudes: •...
- Page 5 Water inlet – connect included blue hose Water outlet – connect included grey hose Attention: water falls by gravitu, keep the water outlet hose lower than the exit. Avoid loops.
- Page 6 It is important also to prime the ice-maker manually before first usage. Lift up the ice-maker lid and lift up the flappers. Pour 3 liters of potable or mineral water into the water bin. Indel Weabsto Marine ice-maker is especially built to work with potable or mineral water only.
- Page 7 Connect the ice-maker to the main power supply system. Press the button in front of the ice-maker to turn it on.
- Page 8 The ice-maker has been correctly installed, it has been correctly connected and has been manually primed: it’s now ready to produce ice. Once on the ice-maker takes 30-40 minutes for the first ice cycle. This is because the ice-maker has to cool all the water inside the water bin as well as all the cooling system.
- Page 9 Beneath the vent grid Ice-bin thermostat. This thermostat regulates the quantity of ice to be stored in the ice bin before turning the ice- maker off automatically. Evaporator thermostat. This thermostat regulates the temperature of the evaporator and the «thickness» of the ice.
- Page 10 Defrost cycle. While the timer is in this position the ice-maker refills automatically and ice falls into the ice bin. Pump isn’t working Ice formation cycle. In this phase the pump is sprays water onto the evaporator and starts creating ice cubes. Thermostats setting Evaporator thermostat and ice bin thermostat are both set between 4 and 5 on a scale from 1 to 7;...
- Page 11 It’s also possible to use the ice-maker with a water-kit (sold separately) to make ice out of mineral water.. Water kit 230V 50-60Hz spare part number SGG00001LA Water kit 115V 60Hz spare part number SGG00002MA On the back of the ice-maker there are all the connections needed to make ice out of mineral water.
- Page 12 Terminal for the water- kit pump connection Indel Webasto Marine made modification for water inlet – connect the 9 mm hose included in the water kit package Water outlet – connect the 18 mm hose included in the water-kit package...
- Page 13 To connect the water-kit pump to the ice-maker check the sticker applied to the back of the ice maker. See the small wiring diagram Whether the water-kit is 115V or 230V one of the pump wiring has writings on it. This wiring has to be connected on«L»...
- Page 14 It is important also to prime the ice-maker manually before first usage. Lift up the ice-maker lid and lift up the flappers. Pour 3 liters of potable or mineral water into the water bin. Indel Weabsto Marine ice-maker is especially built to work with potable or mineral water only.
- Page 15 Loading the water-kit First it’s necessary to clean accurately the water-kit to remove eventaul impurities. The lid on top of the water-kit is removable. Once cleaned up it’s now possible to tight the lid. Now it’s possible to fill the water-kit up which can store up to 15 liters of potable or mineral water.
- Page 16 • Indel Webasto Marine Clear ice maker produces18kg per day • The ice bin is not refrigerated • In case of long time shutdown it’s necessary to do maintenance on the ice- maker as reported at the beginning of the included installation manual.
