Zakład elektroniczny TATAREK Jerzy Tatarek

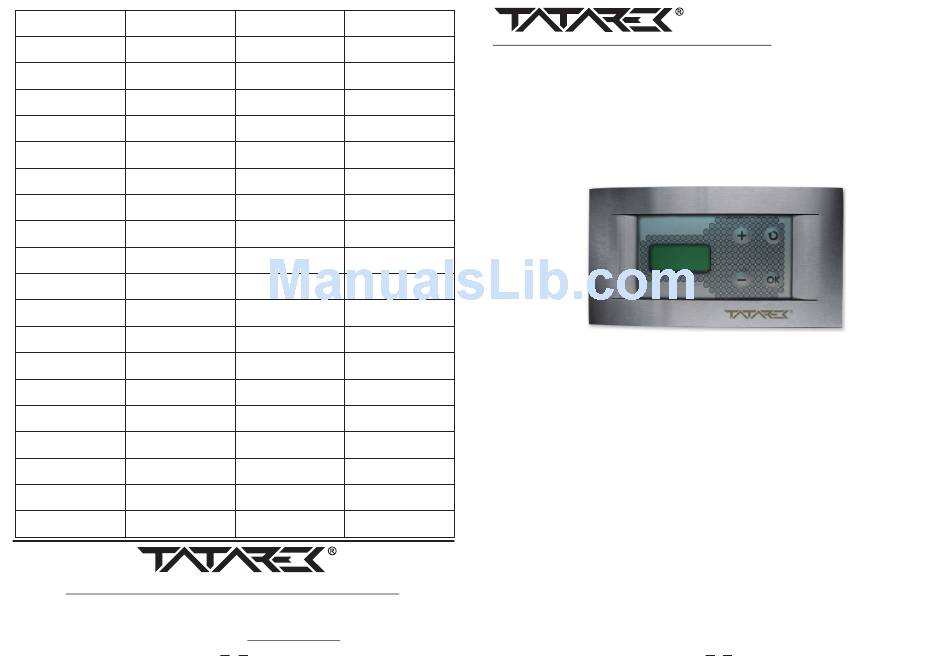

USER MANUAL
REGULATOR
HEATING SYSTEM WITH FIREPLACE
The regulator controls heating system based on a water jacket fireplace which is a heat source. The
heat receivers are: applicable warm water accumulator (CWU) and central heating system (CO).
1.Basic technical parameters:
Power
Power consumption without load
Max connection power
Operation conditions
Housing protection class
Fuse
Number of outputs to control pumps
Number of nonvoltage outputs
Number of water temperature sensors
Temp. measurement precision
Temp. measurement resolution
Number of time zones
RT08K/2008/TITANIUM/ANG
RT-08K
OF
230V/50Hz
5W
750W
o
0 50 C, humidity 10 90%
÷
(No condensation)
IP41
6,3A/250V
3 * 250W/230V/50Hz
1
3 * KTY81 (0...+100 C )
o
2 C
o
0,5 C
4
1
÷
o
