INTRODUCTION TO THE HGM300/RDM800 YOKOGAWA REFRIGERANT
                                                 MONITOR SYSTEM


Welcome ñ This is an introduction the Yokogawa HGM300/RDM800 refrigerant monitor system. As you open the
shipping carton locate the following items;
HGM300 ñ Manufactured to your order specifications, that is, number of zones, type of air sample fittings and dual
4-20ma DC option (if ordered)
RDM800 ñ Remote Display Module (if ordered).
Charcoal filter with ì Tî  bolt bracket; line end filter assembly (quantity dependant on number of zones ordered ñ for
4  zones  ñ  5  filters,  for  8  zones,  9  filters,  12  zones  13  filters  and  16  zones  17  filters.  Do  not  use  a  filter  on  the
exhaust line).
Operations manual
Optional  items  ñ  Audio/Visual  alarms,  visual  alarm,  audio  alarm,  air  sample  tubing,  etc.  as  ordered.



Proper mounting of HGM300 and RDM800 -


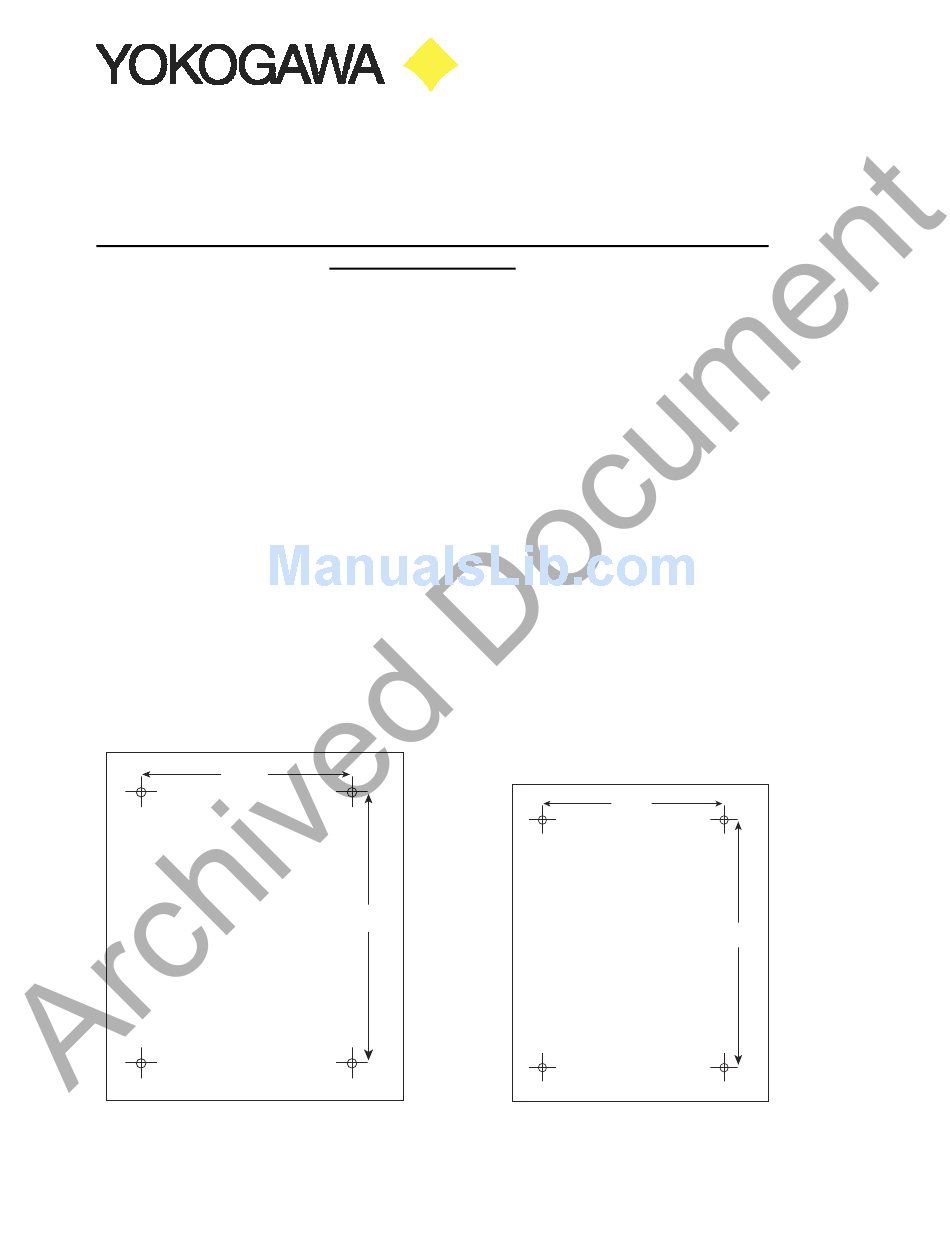

HGM300 Mounting Specs




7.0"




Rev. 10/22/01












RDM800 Mounting Specs

14.0"











7.0"
HGM300/RDM800 mini manual.doc

9.0"

1


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HGM300 and is the answer not in the manual?

Questions and answers

Summary of Contents for YOKOGAWA HGM300

  • Page 1             INTRODUCTION TO THE HGM300/RDM800 YOKOGAWA REFRIGERANT                                                    MONITOR SYSTEM               Welcome ñ This is an introduction the Yokogawa HGM300/RDM800 refrigerant monitor system. As you open the  shipping carton locate the following items;  HGM300 ñ Manufactured to your order specifications, that is, number of zones, type of air sample fittings and dual  4-20ma DC option (if ordered)     RDM800 ñ Remote Display Module (if ordered).  Charcoal filter with ì Tî  bolt bracket; line end filter assembly (quantity dependant on number of zones ordered ñ for  4  zones  ñ  5  filters,  for  8  zones,  9  filters,  12  zones  13  filters  and  16  zones  17  filters.  Do  not  use  a  filter  on  the ...
  • Page 2 The  HGM300  should  be  centrally  located  in  the  mechanical  room  and  be  readily  accessible  for  easy  visual  monitoring  and  servicing.  Air  sample  tubing  may  be  run  in  lengths  up  to  500í.  The  fresh  air  purge  line  should  draw from an area that does not contain any refrigerant gas and cannot exceed 300í in length. The exhaust  line should run to an out side location if possible. The length of the exhaust line cannot exceed 100í.    Ideally, two to three pick up points spaced around each chiller will provide sufficient coverage. It may be necessary ...
  • Page 3 WIRING THE HGM300    AC Power (In / Out) -- RS485 -- 4-20 mAdc              Node Address    Switch       Dual 4-20 mAdc    Outputs  On/Off Power    Switch         RS485  Main 120Volt Power          Auxiliary Power 120Volt    (Used to supply power for audio/visual alarms)             ...
  • Page 4 WIRING THE RDM800          Building  RDM800  HGM300 RS485  Automation  relays  Connector  Main Power  System RS485  Connector  Terminator for  Terminator for  HGM300 RS485  Building Automation  Connector  RS485 Connector  Rev. 10/22/01      HGM300/RDM800 mini manual.doc...
  • Page 5 HGM300 Relay Wiring                LEAK               SPILL          EVACUATE       FAULT              1                2                  3              4       Relay Relay Relay Relay   Horn  Strobe            Aux. Power        Main Power    Jumper the ë Neutralí of the auxiliary power connector to the ë Commoní on the relay block.    Connect one end of strobe or horn to the ë NOí of whichever level of alarm is appropriate for application.  The other end of strobe or horn is connected to a 120VAC power source, or to the ë Lineí of the auxiliary  power connector (Max 5AAC).                   ...
  • Page 6 Power up the monitor system. (Warm up time is 15 minutes)    Start up checkpoints      a)  All buttons on RDM800 ì chirpî  when pressed. (Contact the factory if the do not ì chirpî . See last page for  whom to call)  b)  Communication connection between HGM300 and RDM800  c)  Checking node address for HGM300ís (multiple HGM300î s also)  d)  Terminator positions    Multiple HGMís  TERMINATOR            ì INî     MULTIPLE HGM300íS WITH RDM800    NOTE ñ THE LAST HGM300 OR RDM800 ON EITHER END OF THE NETWORK  MUST HAVE THE TERMINATOR IN THE ì INî  POSITION AND ALL OTHER  RMD800  UNITSMUST HAVE THEIR TERMINATORS IN THE ì OUTî  POSITION.    NOTE ñ TOTAL LENGTH OF RS-485 CABLE CANNOT EXCEED 1500m.  (Use  instrument cable 20 gage multistrand shielded and twisted pair ñ similar or equal to  Beldon cable #8762.)             RS-485 ...
  • Page 7 MULTIPLE HGM300ís CONNECTED TO A BUILDING AUTOMATION SYSTEM  DAISEY CHAIN FASHION      BUILDING    AUTOMATION          SYSTEM      RS-485          TERMINATOR                                                                      TERMINATOR ì INî       HGM300  HGM300  HGM300  HGM300    UNIT 1  UNIT 2  UNIT 3  UNIT 4    NODE 1  NODE 2  NODE 3  NODE 4      TERMINATOR      TERMINATOR    ...
  • Page 8 6)  Use the left/right and up/down keys to change the temperature and the ì ENTERî  key to complete the action.    7)  ì CURRENT PPMî  This function cannot be accessed.    8)  Press the ì LOG INTERVALî  button only if the interval is to be reduced from the 1440-minute (once every 24  hours) factory setting to a lower setting. (At the 1440 minute setting the HGM300 will record the observed PPM  level once every 24 hours. This can be reset to lower numbers to trend a problem in a given zone.)    9)  Press ì MOREî  This takes you to the second zone set up screen.    SETUP SCREEN # 2          Press ì LEAK LEVELî  button. Use left/right keys to move across and up/down keys to readjust leak alarm PPM  level to desired PPM level.    10)  Press ì SPILL LEVELî  button. Repeat as in step 8.    11)  Press ì EVACUATE LEVELî  Button. Repeat as in step 8. ...
  • Page 9  Connect RS232 interface cable to PC and RS232 port on the HGM300 after both the HGM300 and PC has fully  powered up.    Open the HGM300 software using Windows Explorer.  Upon start up, the program will immediately attempt to  download data from the HGM300.  Several beeps can be heard as the program communicates with the HGM300.       Note:  To move through the screen use the ARROW keys to move up, down, left and right.    Use the ENTER key to select options and the ESCAPE key to back out of a selection.    Using the arrow keys go to EDIT ñ press Enter key ñ the EDIT Menu DROPS DOWN ñ select SYSTEM ñ press  ENTER key.  The HGM ì LOCATIONî  becomes highlighted.  Press ENTER key to move to the HGM TAG area,  use the BACKSPACE key to remove the existing tag, then enter in a new tag.  Press ENTER and you are returned to  ì LOCATION.î   Use the ARROW key to select the next item to be addressed.  You CANNOT change the ì SNî  or  ì FIRMWAREî  items.  Press the ESCAPE key to return to the menu bar.    Go to EDIT ñ press ENTER, select ì ZONESî  and press ENTER key.  You may now select a specific zone to  identify and set parameters.  When "REFRIGERANTî  is selected use the ARROW keys to move up and down  through the gas library to locate the gas type for that zone ñ HIGHLIGHT the gas type and press ENTER.    To set the ALARMS ñ select EVAC LEVEL first, press ENTER use the BACKSPACE key to clear previous setting  and type in the new PPM level.  Use the same method to set the SPILL LEVEL and LEAK LEVEL.      To close or bypass a zone, set the DISTANCE to 0 feet.     Saving the program to a disk or C drive   ...
  • Page 10: Responding To Alarms

            Alarm Summary Screen          The ALARM SUMMARY SCREEN displays a list of all alarm conditions across the network. Each box represents  a single alarm. If there are more then eight alarms additional screens can be displayed by pressing the MORE button.    Each active alarm is indicated by a blinking box, as an alarm is acknowledged the box stops blinking.    To acknowledge an alarm, press the button adjacent to the first alarm box. This will take you to the ALARM  DETAIL SCREEN. The ALARM DETAIL SCREEN displays the following information;  • Complete location information  • Refrigerant type and current PPM level  • Peak PPM and peak time  • Type of alarm, alarm time and date                          Rev. 10/22/01      HGM300/RDM800 mini manual.doc...
  • Page 11     Alarm Detail Screen          The ALARM DETAIL SCREEN allows access to three buttons on the bottom of the screen:  QUIT ñ Returns you to the ALARM SUMMARY SCREEN  ACK ñ Acknowledges the alarm  SETUP ñ Returns you to the ZONE SETUP SCREEN (From the ZONE SETUP SCREEN you can access  the TREND SCREEN for that zone.)    To acknowledge the alarm press the button below ACK. You will be returned to the ALARM SUMMARY  SCREEN and the box associated with that alarm will no longer be blinking, indicating that the alarm has been  acknowledged. Repeat this procedure for each active alarm. When all alarms are acknowledged the red alarm light  will go out on the HGM300 and the alarm relays will de-activate. All pending alarms across the entire network must  be acknowledged before the RDM800 returns to normal operation. Once this occurs, the RDM800 red alarm light  will go out and its relays will de-activate.  NOTE ñ If there is still sufficient refrigerant gas present the system will go back into alarm!    LOG INTERVAL AND TREND SCREEN  The HGM300 retains a data log of 100 measurements per zone, starting on the left and moving to the right. The log  interval is the number of minutes from 0 to 1440 (1440 minutes is once every 24 hours) between each log point.  This parameter can be changed from the ZONE SETUP SCREEN for each zone. (When 0 minutes are set the trend  is recorded every time the zone is sampled.)    Zone Setup Screen #1          The LOG INTERVAL setting is a useful tool to determine what is occurring in a mechanical room over time.            Rev. 10/22/01   ...
  • Page 12: Critical Faults

        Trend Screen        From the ZONE SCREEN press the button adjacent to the zone that you wish to work with to go to the ZONE  SETUP SCREEN, press the button below TREND to get to the TREND screen for that zone.  The trend graph opens to the most current data point. Use the left/right keypad keys to move the cursor across the  screen. As you move across the screen the date and time of the reading and the PPM level will be displayed. Use the  ZOOM IN and ZOOM OUT buttons to adjust the vertical scale.  Trend data is first in, first out basis. After 100 trend values have been stored the 101  value will replace the first  stored value.     1)   - Working with the fault screens  WORKING WITH THE FAULT SCREENS          A.  From the ì SYSTEMî  screen press the button adjacent to ì FAULTî . This takes you to the FAULT SCREEN.  The information displayed on this screen is broken onto two categories ñ CRITICAL FAULTS and NON  CRITICAL FAULTS.    Rev. 10/22/01      HGM300/RDM800 mini manual.doc...
  • Page 13: Fault Screen

    FAULT SCREEN      CRITICAL FAULTS    1)  NO FLOW ON ZONE ñ Go to SYSTEM SCREEN, the to ZONES. The zone screen will display a ì NO  FLOWî  message in each individual zone affected. Check for a blockage in the air sample line or at the line end  filter. Once the blockage has been cleared, the HGM300 will return to normal operation after the zone has been  sampled. Note - This can take some several minutes since it is dependent upon how many zones there are and  their lengths. The HGM300 will clear the fault the next time it polls the effected zone and the RDM800 will  return to normal operation the next time that it polls the HGM300.  2)  NO FLOW ON PURGE ñ Check the purge line for a blockage. Verify that the length of the purge line and  exhaust line do not exceed 100 feet in length.  3)  NO FLOW DETECTED ñ Check for proper pump operation. Check the water trap ñ drain if necessary.  4)  CLIPPING FAULT ñ The detector voltage may be out of tolerance. Check the DIAGNOSTIC SCREEN for the  DET voltage, AVE voltage and ZERO voltage. Call the factory with this information at 1-800-888-6400 Ext.  5182, 5169 or 5403 for farther instructions.  5)  REZERO VOLT TOL ñ The detector output voltage is out of tolerance. Check the DIAGNOSTIC SCREEN as  in item 4 and contact the factory for assistance.  6)  TRIGGER FAULT ñ No trigger from IR source pulser. Contact factory with all information from the  DIAGNOSTIC SCREEN for farther instructions.      DIAGNOSTIC SCREEN     To get to the DIAGNOSTIC SCREEN ñ From the SYSTEM SCREEN press the button adjacent to the HGM300  that you wish to view, this takes you to the HGM SETUP SCREEN, from there press the button adjacent DIAG.      NON CRITICAL FAULTS   ...
  • Page 14: Fault Log Screen

    Check the installation to verify that the monitor is not being subjected to extreme temperatures. Check the  DIAGNOSTIC SCREEN for the ZERO temperature, BNCH temperature and BOX temperature. Call the  factory with this information at 1-800-888-6400 Ext. 5182, 5169 or 5403 for farther instructions.      3)  PRESSURE SENSOR ñ Manifold pressure is outside normal operating range (or sensor has failed).  Check the DIAGNOSTIC SCREEN record ALL data and call the factory with this information at  1-800-888-6400 Ext. 5182, 5169 or 5403 for farther instructions.    4)  LOOP FAULT ñ This would only be displayed if the dual 4-20mAdc option was installed and one or both  current loops are open.  Check the wiring to load/monitoring circuit on both 4-20mA loops.    5)  CONFIG FAULT ñ There is an error in the ZONE SETUP SCREEN, Number of zones field. Check to  verify that the actual number of zones installed in the monitor is equal to the number indicated in the Zone  Setup Screen. Check to insure that the manifold solenoid cable connector is securely fastened to its terminal  connector. Check for illegal parameter. Reset to factory default settings.      Reset to factory default settings - Hold down the left most button inside the HGM300 ñ cycle the power  off then on while holding that button down ñ listen for five beeps then release the button. Reprogram the  HGM300.  Note ñ Performing this function wipes out all program parameters, alarms, faults, trends and log  files.   Resetting the RDM800 to factory default settings ñ Occasionally it will be necessary to rest the  RDM800 to factory default settings. From the System Screen, press and hold the button adjacent to the  ì ALARMî  function, cycle power off then on, listen for five beeps.    FAULT LOG SCREEN ñ From the FAULT SCREEN press the button under LOG. This screen lists the  last 20 fault conditions recorded by the system.  Using the left/right keys on the keypad you can move  across the screen to view the time and date of the fault.          FAULT LOG SCREEN   ...
  • Page 15  Working with the diagnostic screen  Overview  The Diagnostic Screen displays reference values for use by repair technicians. From the top level Zone  Screen press the SYSTEM key to go to the System Screen. Press the Diagnostic key to view the  reference values.        Diagnostic Screen Overview  The diagnostic screen contains sensor data and status information useful for trouble shooting various  fault conditions.  An explanation of each line is given below along with normal operating ranges.  LINE 1: Detector Voltage ñ This is the peak to peak output of the IR sensor, in the absence of refrigerant this  value can range from 3.900V to 4.500V.  LINE 2: Average Detector Voltage ñ This is simply a running average of the values displayed in line 1.  LINE 3: Zero Voltage ñ This is the IR sensor output that was stored during the last purge cycle and has the  same range as line 1.  LINE 4: Noise ñ This is a 16 point running average of the noise portion of IR bench output.  This reading is  valuable mainly when refrigerant is NOT present.  LINE 5: Average Absorbency ñ This is the optical absorbency computed from the values in lines 2 and 3. In the  absence of refrigerant the absorbency is approximately 0.000AU.  When sampling refrigerants, itsí value varies  proportionally with the refrigerant concentration.  LINE 6: uMoles/L ñ This is the absolute concentration in micromoles per liter of refrigerant base on line 4 and  the internal calibration.  There are 2 figures given.  The first (which is annotated by a B) is the actual  measurement at the IR bench.  The second is the calculated value corrected to ambient conditions (temperature  + pressure).    LINE 7: PPM ñ Parts Per Million is the volume concentration referenced to standard temperature and pressure  and is computed from lines 5, 8 and 12.  There are 2 figures given.  The first (annotated by a B) is the actual  PPM at the IR branch.  The second is a PPM reading normalized to standard temperature and pressure.  LINE 8: Zero Temperature ñ This line contains the sensor and enclosure temperature measured and stored  during the last purge cycle in degrees C.  LINE 9: Bench Temperature ñ This is the current IR sensor temperature in degrees C as well as the raw  voltage coming from the temperature sensor itself.  This value can range from ambient to ambient +15 degrees  C.  Rev. 10/22/01      HGM300/RDM800 mini manual.doc...
  • Page 16                                                                         Rev. 10/22/01      HGM300/RDM800 mini manual.doc...
  • Page 17   SHIPPING ADDRESS:    YOKOGAWA CORP. OF AMERICA      2 DART ROAD      NEWNAN, GA 30265    WARRANTY HIGHLIGHTS    ! PLEASE REVIEW COMPLETE WARRANTY CONDITIONS.  ! PARTS: 2 YEARS AFTER SHIPMENT FROM FACTORY UNLESS  OTHERWISE NEGOTIATED.    ! LABOR: 90 DAYS AFTER SHIPMENT.  ! DRILLING INTO THE TOP OF THE HGM300 OR RDM800 CASE VOIDS  WARRANTY.    ! ANY WATER FOUND IN THE INFRARED DETECTING BENCH VOIDS  WARRANTY.    ! ANY OBVIOUS DAMAGE VOIDS WARRANTY.  ! CALL ANYONE LISTED ABOVE FOR WARRANTY QUESTIONS OR  CLAIMS.  J:/EDP/HGM300/WHOM TO CALL AT THE  FACTORY.DOC    Rev. 10/22/01      HGM300/RDM800 mini manual.doc...
