Owner's Manual • Truck Bed Tent
Important! For safe and proper assembly, use, and care, read and follow all
instructions. Everyone who uses this tent should first read this manual.
32017
www.KodiakCanvas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Truck Bed Tent and is the answer not in the manual?

Questions and answers

Summary of Contents for Kodiak Truck Bed Tent

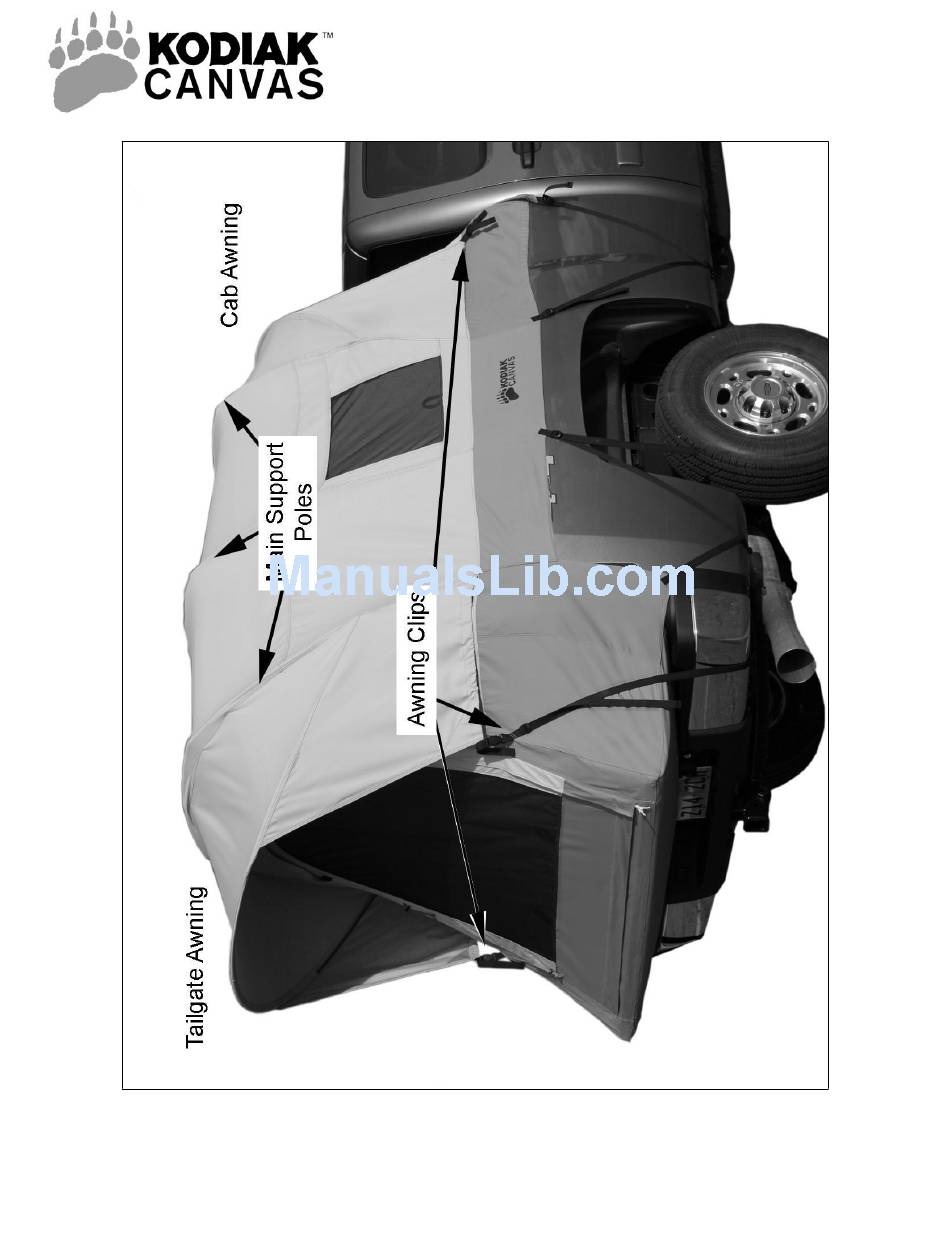

  • Page 1 Owner’s Manual • Truck Bed Tent Important! For safe and proper assembly, use, and care, read and follow all instructions. Everyone who uses this tent should first read this manual. 32017 www.KodiakCanvas.com...
  • Page 2 No Fire This tent is flammable. Keep all flame and heat sources away from the tent fabric. Never place a stove, campfire, or any other flame source in or near your tent. Never use, light, or refuel a stove, lantern, heater, or any other heat source inside your tent. Death by carbon monoxide poisoning and/or serious burns are possible.
  • Page 3 Component Checklist ● Identify all components and make sure they are in good condition and working order. Item Tent Body Mounting Rails C-Clamps Poles Main Support Pole—Cab Awning (shorter pole) Pole—Tailgate Awning (longer pole) Pole Bag Tent Bag Before You Set Out ●...
  • Page 4 The ideal location for the mounting rails will vary for different trucks. Start about 6” from the back (A in the image below represents 6”). Adjust the position of the mounting rails so the locking pins will align with the tent seams.
  • Page 5 3) Attach the side hooks to the bottom of the truck as shown below. Leave a couple inches of play in the side straps. STEP 4: Raising Tent 1) Join the Awning Poles. NOTE: The tailgate awning pole is longer than the cab awning pole. 2) Slide the Cab Awning Pole through the front awning sleeve.
  • Page 6 5) Repeat #4 for the Middle Support Pole, and then the Back Support Pole. Tip: Complete in order, starting at the front (towards the truck cab), and then work back (towards the tailgate). 6) Secure the poles in place with the Velcro tabs located on the tent ceiling and walls. 7) Insert the tips of the Tailgate and Cab Awning Poles into the grommet holes just below the awning (See photo on top of page 7).
  • Page 7 8) Connect Awning Clips in the front and back. (See photo on page 1) 9) Connect the Back Straps by clipping them underneath the rear bumper. 10) Adjust and tighten all the straps to a snug and even fit. This tent is designed to fit a number of different truck models.
  • Page 8 Camp Dry® by Kiwi®. Other treatments will clog the tiny holes in the canvas eliminating its breathability. ● Winter camping can be an enjoyable experience in a Kodiak Canvas tent. However, it is not designed for heavy snow accumulations.
