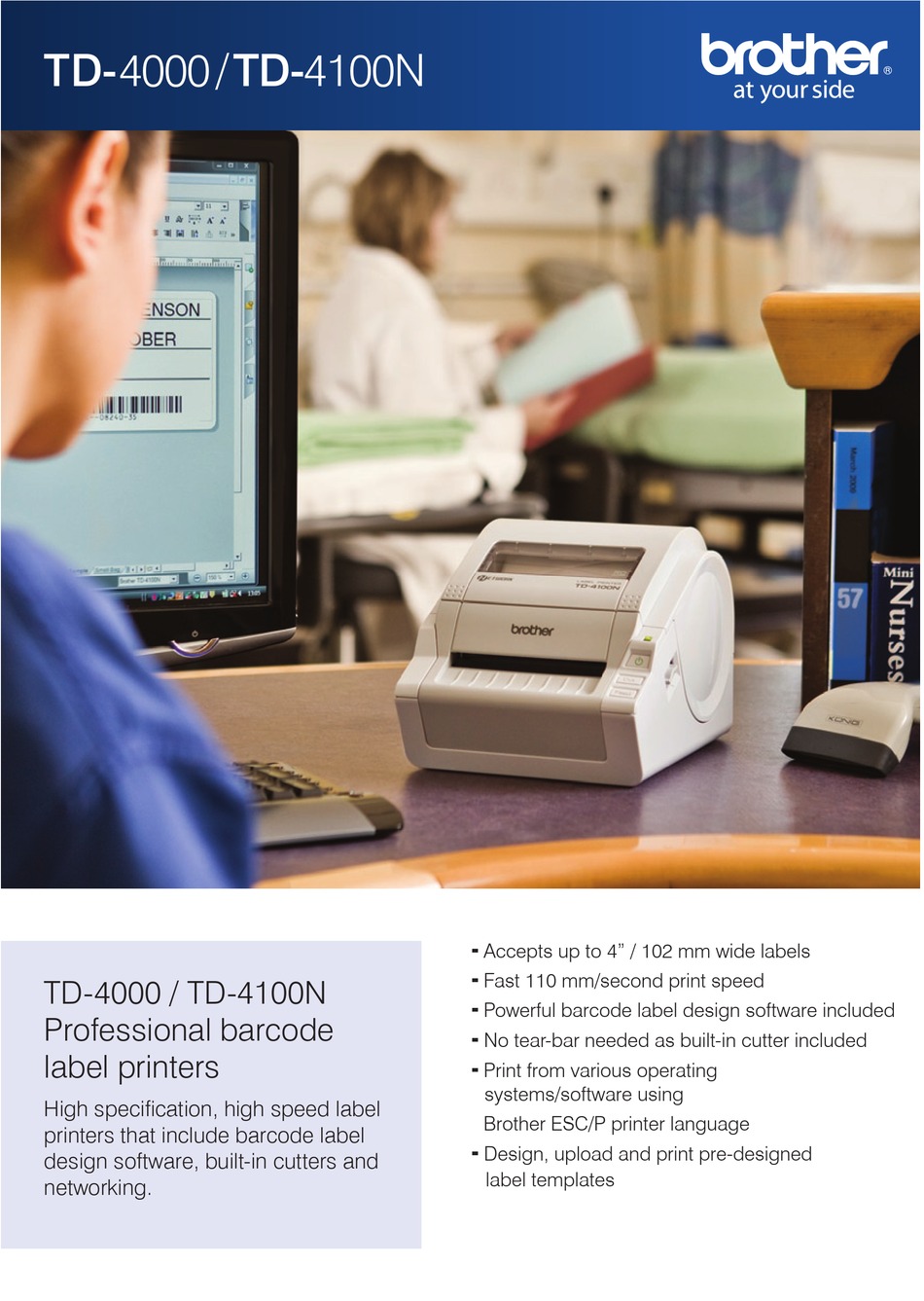

TD-4000 / TD-4100N
TD-4000 / TD-4100N
Professional barcode
label printers
High specification, high speed label
printers that include barcode label
design software, built-in cutters and
networking.
Accepts up to 4" / 102 mm wide labels
Fast 110 mm/second print speed
Powerful barcode label design software included
No tear-bar needed as built-in cutter included
Print from various operating
systems/software using
Brother ESC/P printer language
Design, upload and print pre-designed
label templates
Advertisement
Related Manuals for Brother TD-4000
Summary of Contents for Brother TD-4000
- Page 1 TD-4000 / TD-4100N Accepts up to 4” / 102 mm wide labels Fast 110 mm/second print speed TD-4000 / TD-4100N Powerful barcode label design software included Professional barcode No tear-bar needed as built-in cutter included label printers ...
- Page 2 Brother has been developing label printing technology for more than twenty years, and the TD-4000 and TD-4100N both offer the ability to print high quality labels on demand, whatever the label requirement. Printing labels up to 4”/102 mm in width, and at a speed of up to 110 mm/second, these two fully featured machines also offer a built-in cutter as standard to avoid the need of a cumbersome tear-bar.
- Page 3 Excel and MSDE/SQL databases onto your labels. Brother can also supply an SDK (Software Development Kit) to give you an easy method of incorporating label printing directly from within your own software programs, or you can use the printer’s built-in ESC/P and template modes to print from non-windows...
-
Page 4: Built-In Networking
With an advanced 10/100 base TX network port as standard, the TD-4100N label printer can be placed anywhere that labels are required Built-in networking The professional and reliable method of connecting label printers is typically via a network, and the TD-4100N incorporates a 10/100 Base TX network port as standard. By giving the opportunity to locate the label printer away from the PC, you have the advantage of being able to place the label printer wherever your labels are required. - Page 5 BR Admin The TD-4100N is also fully compatible with the Brother BR Admin software. This powerful software is a professional management tool that can manage your Brother network-connected products. It can also be used to view the status of other SNMP compliant network printing devices.
- Page 7 TD-4100N, and the ability to create custom sized labels using the built-in cutter, there are many uses for these models in the warehouse. Brother RD label rolls are made of high quality materials, ensuring the printed text and barcodes stay readable on the label while items are being shipped.
- Page 9 The Brother TD-4100N, with its integrated 10/100 Base TX network port gives the chance to place the machine away from the PC, wherever the labels are needed.
- Page 11 The 300dpi print resolution and high quality RD label rolls used in the TD-4000 and TD-4100N ensures that every label printed looks professional, offering sharp text, logos and barcodes with a high contrast to ensure faultless scanning at the checkout.
- Page 12 Professional software solutions P-touch Editor 5 Supplied as standard, you can create your own custom labels with pixel precision by using this powerful software solution. With features such as support for over 15 barcode protocols, advanced image dithering to print high quality greyscale images, and the ability to link to data contained in Excel spreadsheets for batch printing of labels, any label design is possible.
- Page 13 • Issue the print command from your program. • The b-PAC SDK will then create and print the label containing your information. More details can be found at http://www.brother.com/bpac Brother ESC/P printing Connect to non-windows devices using the RS-232 serial port. By sending simple text commands containing the label format and the text/barcode to be printed, the labelling machine will print the label required.
- Page 15 Brother RD labels also contain no Bisphenol-A, a common chemical used in the manufacture of inferior labels. As such, Brother RD labels are safe to use in the food industry, and also pose no hazard to the health of infants and young children...
- Page 16 TD-4000 / TD-4100N Specifications Hardware: TD-4000 and TD-4100N 173 mm (W) x 229 mm (D) x 158 mm (H) Dimensions Weight TD-4000: 1.81 kg / TD-4100N: 1.83 kg Roll compatibility RD rolls (die-cut and continuous) Print technology Direct thermal Maximum label width...
- Page 17 Software: P-touch Editor 5 All installed truetype fonts / 17 Font support / fonts supplied Font styles 11 styles: Normal, Bold, Italic, Outline, Shadow, Shadow Light, Horizontal, Surround, Frame Out, Inverted Text, Underline Number of frames Image file formats support BMP , JPG, JPEG, PNG, TIF, GIF, DIB, WMF, EMF, ICO Screen capture Min.
- Page 18 TD-4000 / TD-4100N Specifications Firmware: TD-4000 and TD-4100N Maximum print width 98.6 mm Min. / max. label length 25 mm - 1 metre Number of copies 1-999 (ESC/P P-touch Template) Built-in barcode protocols CODE39, CODE128, UCC/EAN-128 (GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13...
- Page 19 System requirements ® Microsoft Windows XP Operating systems ® Windows Vista 32 bit & 64 bit ® Windows 7 32 bit & 64 bit ® Windows Server 2003 x86 (TD-4100N only) ® Windows Server 2008 / 2008 R2 (TD-4100N only) Interfaces USB (ver 2.0 full speed) RS-232C serial (9 pin)
- Page 20 Brother International Corporation (Ireland) Ltd Boeing Rd, Airways Industrial Estate, Santry, Dublin 17 Tel:+353(0)1-241 1900 Fax:+353(0)1-842 4666 Web-site: www.brother.ie...
