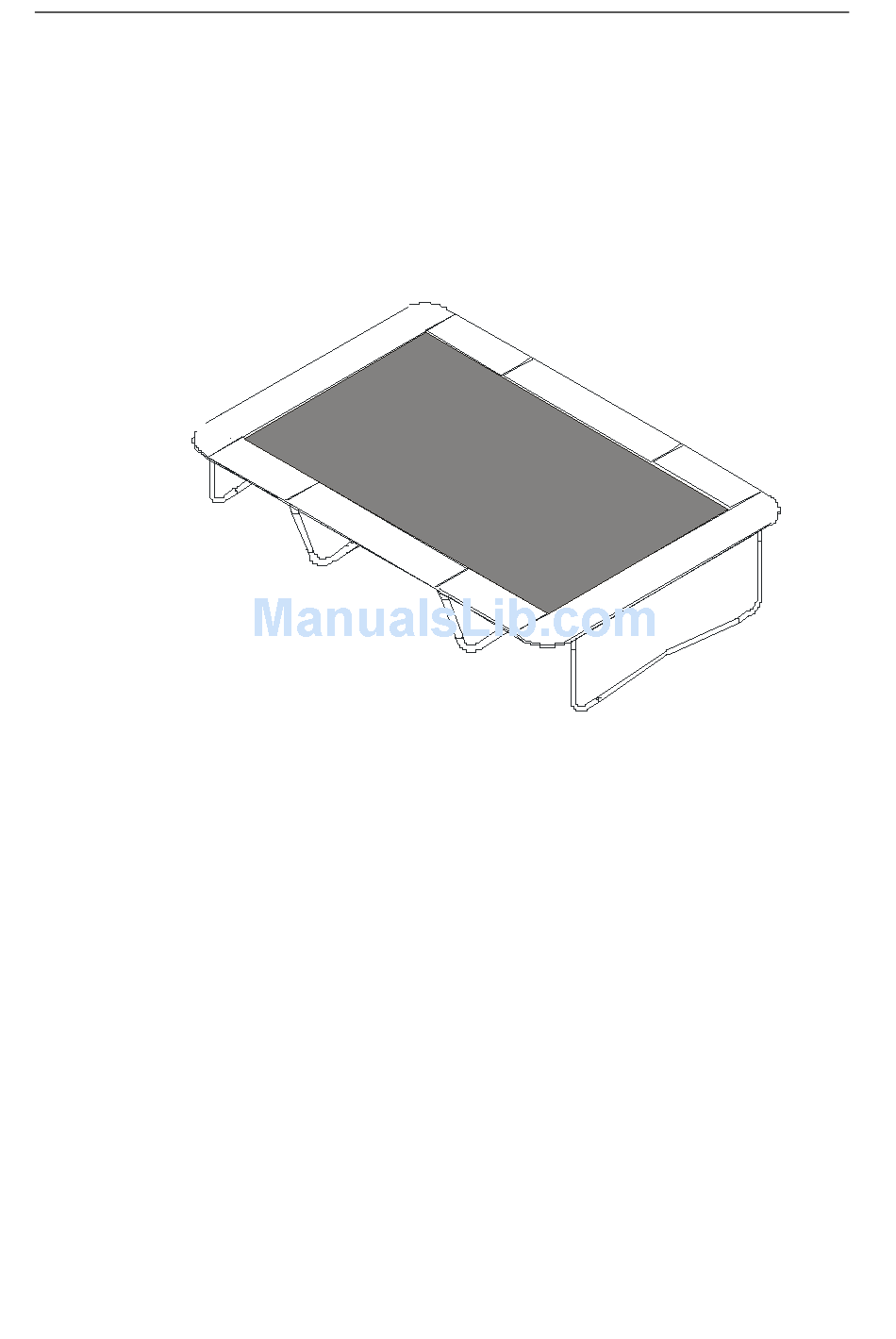

- Page 1 User’s Manual for Trampolines Trampoline Specifications: □ 10ft x 15ft □ 10ft x 17ft (TATR-1015) (TATR-1017) Springs: □ 92 □ 104...
- Page 2 INTRODUCTION Before you begin use of this trampoline, be sure to carefully read all the information Provided to you in this manual. Just like any other type of physical recreational activity, Participants can be injured. To reduce the risk of injury, be sure to follow appropriate safety rules and tips.
- Page 3 INFORMATION ON USE OF THE TRAMPOLINE Initially, you should get accustomed to the feel and bounce of the trampoline. The focus must be on the fundamentals of your body position and you should practice each bounce (the basic bounces) until you can do each skill with ease and control. To brake a bounce, all you need to do is flex your knees sharply before they come in contact with the mat of the trampoline.
- Page 4 ACCIDENT CLASSIFICATION Mounting and Dismounting: Be very careful when getting on and off the trampoline. DO NOT mount the trampoline by grabbing the frame pad, stepping onto the springs, or by jumping onto the mat of the trampoline from any object (i.e. a deck, roof, or ladder). This will increase your chances of getting injured! DO NOT dismount by jumping off the trampoline and landing on the ground regardless of the makeup of the ground.
- Page 5 Weather Conditions: Please be aware of the weather conditions when using the trampoline. If the mat of the trampoline is wet, the jumper could slip and injure him or herself. If it is to windy, jumpers could lose control. Limiting Access: When the trampoline is not in use, always store the access ladder in a secure place so that unsupervised children cannot play on the trampoline.
- Page 6 TRAMPOLINE SAFETY INSTRUCTIONS JUMPERS: Do not use trampoline if you have consumed alcohol or any drugs Remove all hard sharp objects from person before using trampoline You should climb on and off in a controlled and careful manner. Never jump on or off the trampoline and never use the trampoline as a device to bounce onto or into another object.
- Page 7 TRAMPOLINE PLACEMENT The minimum overhead clearance required is 24 feet (7.3 meters). In terms of horizontal clear- ance, please ensure that no hazardous objects are near the trampoline such as tree limbs, other recreational objects (i.e. swing sets, swimming pools), electrical power wiring, walls, fences, etc. For safe use of the trampoline, please be aware of the following when selecting a place for your trampoline: ...
- Page 8 LESSON PLAN The following lessons are suggested in order to learn basic steps and bounces before moving onto more difficult, complicated bounces. Before actually getting on and using the trampoline, you should read and understand all safety instructions. A complete discussion and demonstration of body mechanics and trampoline guidelines should occur between the supervisor and student as well.
- Page 9 B. Knee Bounce-Demonstration and practice. Learn the basic down to knee and back up before trying half twist to left and right C. Seat Bounce -Demonstration and practice. Learn basic seat bounce then add a knee bounce, hands and knees; repeat Lesson 3 A.
- Page 10 KNEE BOUNCE 1. Start with basic bounce and keep it low 2. Land on knees keeping back straight, body erect and use your arms to maintain balance 3. Bounce back to basic bounce position by swinging arms up SEAT BOUNCE 1.
- Page 11 PARTS LIST Please select your trampoline size. 10ft x 15ft (TATR-1015) This model rectangular trampoline without support steel plates under the Middle Legs. 10ft x 17ft (TATR-1017) This model rectangular trampoline have 2 support steel plates under the Middle Legs. Q’TY...
-
Page 12: Table Of Contents
ITEM DESCRIPTION TATR-1015 TATR-1017 L Shape Leg for Middle Bar Connect Bar for Middle Leg Support Steel Plate Leg Extension for Middle Leg Side Bar L Shape Corner Bar A L Shape Corner Bar B End bar Leg Extension for End Leg... - Page 13 REMEMBER TO USE GLOVES DURING ASSEMBLY TO AVOID PINCHING and IT WILL TAKE AT LEAST TWO PEOPLE TO ASSEMBLE THE TRAMPOLINE Assembly for TATR-1015, TATR-1017 Note: We recommend at least 2 people participate in assembling the trampoline. 1. Attach the “L” Shape Leg for Middle Leg (1) to Connect Bar for Middle Leg (2), and connect them by M8x80mm Socket Button Head Screw (H1).
-
Page 14: Leg Extension For Middle Leg
2. Attach the Leg Extension for Middle Leg (4) to “L” Shape Leg for Middle Leg (1), and connect them by M8x80mm Socket Button Head Screw (H1). 3. Attach Connect Support Steel Plate (3) to “L” Shape Leg for Middle Leg (1), and connect these3 parts by M8x85 Socket Button Head Screw assembly (H5, H2,H3 &H4) * This step just for 10ft X 17ft rectangular trampoline assembling. -
Page 15: End Bar
As s emb ly and Ins tallatio n Ins tr uc tio ns Thi s p art in Left Thi s Par t in Ri ght Finis hed View 5. Attach 2 L Shape Corner Bars (6,7) to the End Bar (8) both side, and tighten by M8x80 Socket Button Head Screw Assembly (including H1, H2, H3&H4). -
Page 16: Leg Extension For End Leg
6. Repeat step 5 for another side. Please refer the picture as shown. Finis hed View 7. Insert Leg Extension for End Leg (9) swage side into the both end of the Connect Bar for End Leg (10), and tighten by M8x60 Socket Button Head Screw (H6) Assembly (H6, H2, H3&H4) 8. -
Page 17: Jumping Mat
9. Connect Jumping Mat (11) to trampoline frame by attaches a spring to the two V-rings closest to each corner. Warning label on mat must face up. 11 Mat Note: For easy spring installation, use a Special spring tool to hook onto the one you are installing. -
Page 18: Short Pad For End Bar
10. Line up pads so they completely cover all springs and rail pieces, on all sides of the trampoline. Connect each pad section together using Velcro pieces at each end of pad. Velcro on each long pad piece will connect to bottom of each short pad piece.
