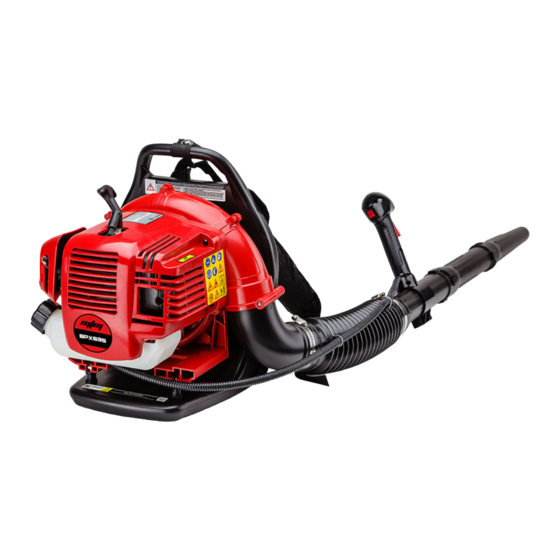

Petrol Powered Backpack Blower
User Manual
[Revision 5.0 March 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
Advertisement
Table of Contents
Related Manuals for MFM blwhndmtma6nk
Summary of Contents for MFM blwhndmtma6nk
- Page 1 Petrol Powered Backpack Blower User Manual [Revision 5.0 March 2017] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Safety
Petrol Powered Backpack Blower Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or You CAN be KILLED or You CAN be INJURED if you do SERIOUSLY INJURED if you do... - Page 3 Petrol Powered Backpack Blower General Fuel Safety General Service Information • Petrol/fuel/gasoline is extremely Have the equipment serviced or flammable – keep clear of repaired at authorized service centres naked flames or other ignition by qualified personnel only. sources. • Replacement parts must be original •...
-
Page 4: Table Of Contents
Petrol Powered Backpack Blower Table of Contents Safety ..............................2 Included Items ............................ 5 BLWHNDMTMA6NK ..........................5 BLWHNDMTMA6WK ..........................5 Assembly ............................6 Adjusting the Backpack Harness and Control Handle ................. 7 Fuel and Lubrication .......................... 7 Operation ............................8 Starting the Engine............................. -
Page 5: Included Items
Petrol Powered Backpack Blower Included Items BLWHNDMTMA6NK BLWHNDMTMA6WK Extension Tube Standard Nozzle Extension Tubes Narrow Nozzle Curved Nozzle Standard Nozzle Narrow Nozzle E&OE ©2017 MTM... -
Page 6: Assembly
Petrol Powered Backpack Blower Assembly Note: Place the hose clamps over the flexible tube before connecting it. • Place the unit on a flat surface during assembly. 1. Slide the flexible tube (B) over the fan outlet tube (A) and secure it using a hose clamp (C). Firmly tighten the clamp. -
Page 7: Adjusting The Backpack Harness And Control Handle
Petrol Powered Backpack Blower Adjusting the Backpack Harness and Control Handle 1. Place the blower on your back by slipping arms through the shoulder straps as if you were putting on a jacket. 2. Once adjustments have been made to the straps for user comfort, remove the blower from your back and place on a level ground in an upright position. -
Page 8: Operation
Petrol Powered Backpack Blower Operation Video Tutorial: Starting 2-Stroke Engines Starting the Engine Always pull the starter cord straight out. Pulling it at an angle will cause it to rub against the machine, which may damage it and wear it more quickly. • Allow the starter cord to retract slowly – do not let it "snap"... -
Page 9: Operating The Blower
Petrol Powered Backpack Blower Operating the Blower Always wear a face shield when operating the machine. • Maintain a distance of at least 20m (60') between the operator and any bystanders, animals etc. • Never blow debris in the direction of bystanders. -
Page 10: Maintenance
Petrol Powered Backpack Blower Maintenance Checking, Cleaning or Replacing the Air Filter Operating the machine without a functional air filter may cause severe engine damage and will void any warranty. • A dirty or oil saturated air filter will restrict air flow, which can be mistaken as fuel system problems. -
Page 11: Spark Plug
Petrol Powered Backpack Blower Spark Plug If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc), replace it. • Always use spark plugs of the same type as originally supplied. The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one end and an electrical terminal on the other. -
Page 12: Storage
Petrol Powered Backpack Blower Storage Failure to follow these steps may cause varnish to form in the carburettor. If this happens then the carburettor will have difficulty starting. 1. Perform all the general maintenance recommended in the maintenance section of your user manual. 2. -
Page 13: Troubleshooting
Petrol Powered Backpack Blower Troubleshooting Problem Probable Cause Corrective Action Engine does not start, or Incorrect starting procedures Follow instructions in the user manual starts but will not run Incorrect carburettor mixture Have carburettor adjusted by an authorised service centre Fouled spark plug Clean/gap or replace plug Empty fuel tank... -
Page 14: Specifications
Petrol Powered Backpack Blower Specifications Engine Type Single cylinder 2-stroke Displacement 30cc Idle Speed 3500RPM Maximum Engine Speed 9000RPM Ignition Type Maximum Air Velocity Approximately 450 km/h Air Volume Approximately 13m /min Fuel Type Non-ethanol unleaded Fuel Capacity 500ml Fuel Ration 40:1 (40 parts fuel to 1 part 2- stroke oil) E&OE ©2017 MTM... - Page 15 Petrol Powered Backpack Blower Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety ...
