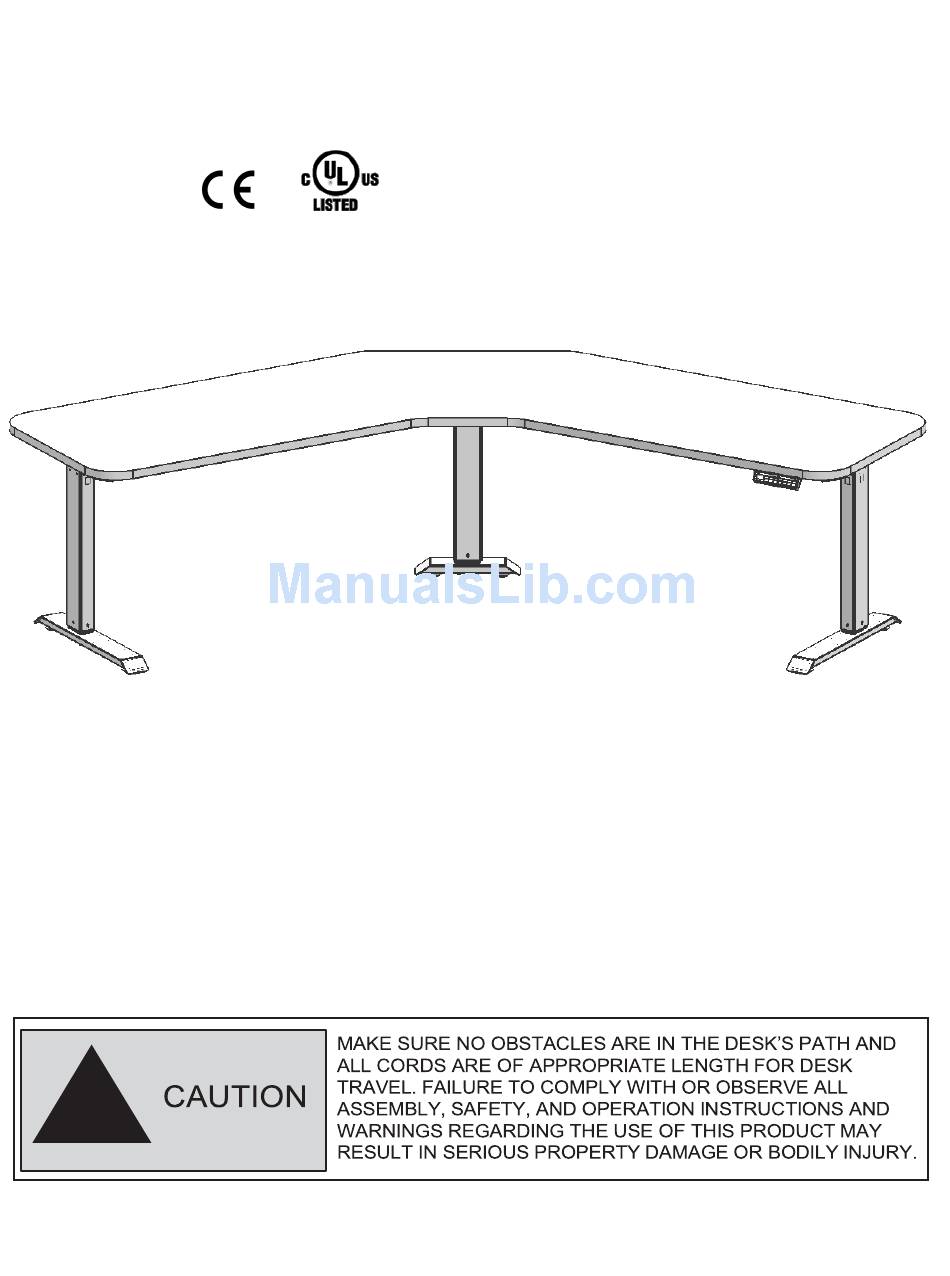

- Page 1 RUISHI PRODUCTS RS300 - ADJUSTABLE HEIGHT DESK UL Number: E485560 MANUAL FOR ASSEMBLY AND USE...
- Page 2 IMPORTANT: Any user or installer of desk base must study this manual carefully. If this desk is sold, please provide the manual to the buyer. TABLE OF CONTENTS PAGE SAFETY AND WARNINGS USAGE SETUP AND INSTALLATION PARTS LIST ASSEMBLY INSTRUCTIONS 4 to 11 TECHNICAL SPECIFICATIONS TROUBLESHOOTING GUIDE...
- Page 3 PARTS LIST Components...
- Page 4 Please count all pieces before disposing of any carton or packing material. Use a padded or carpeted area for assembly to avoid damage. For ease and safety, we recommend two people for assembly NO. Description Qty NO. Description Qty 16.
- Page 5 ASSEMBLY INSTRUCTIONS out 1 pc of part #4, #6, #7, and #8. Then slide Part#7, Take #8 into Part#4 and #6. Let us call this assembled part as Same as step A ,Take out 1 pc of part #5, #6, #7, and #8. Then slide Part#7, #8 into Part #5 and #6.
- Page 6 Take out 1 pc of Part #1, #9, #10, and #13. Use M6*15 screw (the shorter version) to fix Part #9, and Part #10. At the 2 sides of the motor house of Part#1 Lifting Column, Tighten Part #13 at the other end of the motor box.
- Page 7 Take out the last 2 lifting columns Part #1, use M6*15 screws to fix the lifting column at the 2 ends of the frame. Do not tighten machine screws yet, only rotate each 3 times. You will get Part EE. ...
- Page 8 Turn the half assembled desk frame upside down, in order to put the feet on. Use M6*45 screws (the longer ones) to fix the 2 feet Part #2 on 2 sides legs. 1 Foot Part #3 in on the middle leg. Then spin the leveling studs in the feet ...
- Page 9 Place the base where you want it. Some will want the frame to be all the way to the edge of the desk. We recommend leaving at least 1/2” of desktop width (on each side) protruding beyond the frame width. Center the frame by using the desktop edge as a reference.
- Page 10 IN THIS FOLLOWING STEP, DO NOT OVERTIGHTEN SCREWS. OVER TIGHTENING MAY CAUSE THE PLASTIC ON THE COMPONENTS TO BREAK. Never use countersunk screws to fasten We recommend you pre-drill any holes into the desktop. This will cause much needed for fasteners connecting the Control box to the top.
- Page 11 Connect the Wires as per the diagram below. Use the adhesive-backed Cable Clips to secure the Connecting Wires, so they don’t sag. Turn the assembled desk right-side-up. WITH THREE PEOPLE, grab the desk by the base (not the desk- top) and turn the desk right-side up. Adjust the Leveling Studs on the Feet (Part #2) as needed.
- Page 12 Height Range 23.4” – 48.6” (without desktop) Adjustable frame 47.2” min – 70.9” max Travel Speed 1.5” per second Weight Capacity 225 lbs. Duty Cycle 10%, Max. 2 mins on, 18 mins off Function 4 Memory position in the handset 0.1W standby power ecofriendly Anti-collision technology to prevent damage Adjustable desk frame...
