Ruishi Products RS400 Assembly And Use Manual

Adjustable height desk

Advertisement

Quick Links

RUISHI PRODUCTS
RS400 - ADJUSTABLE HEIGHT DESK
UL Number: E485560
MANUAL FOR ASSEMBLY AND USE
!
IMPORTANT:
Any user or installer of desk base must study this manual carefully.
If this desk is sold, please provide the manual to the buyer.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RS400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruishi Products RS400

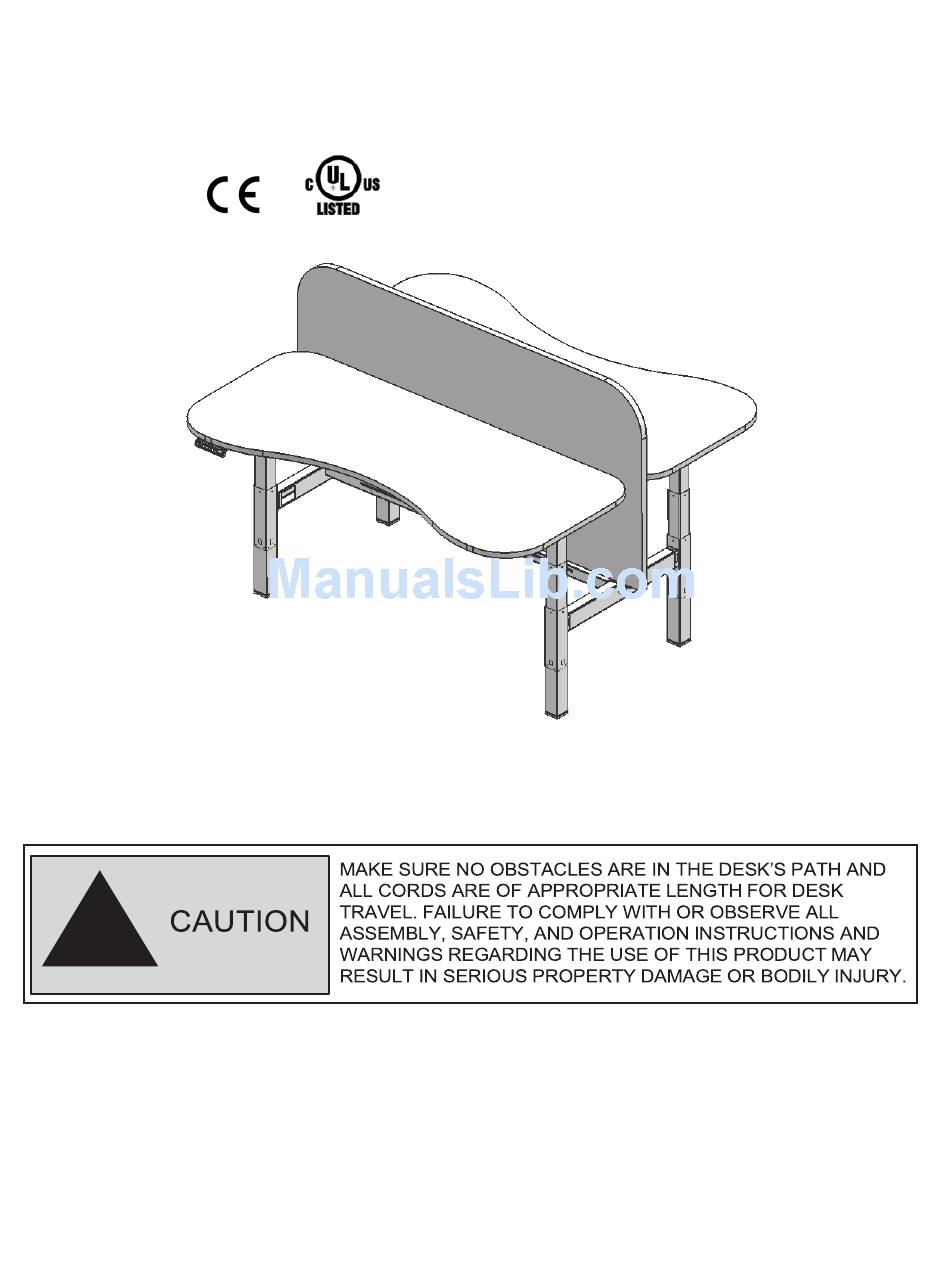

  • Page 1 RUISHI PRODUCTS RS400 - ADJUSTABLE HEIGHT DESK UL Number: E485560 MANUAL FOR ASSEMBLY AND USE IMPORTANT: Any user or installer of desk base must study this manual carefully. If this desk is sold, please provide the manual to the buyer.
  • Page 2 TABLE OF CONTENTS PAGE SAFETY AND WARNINGS USAGE SETUP AND INSTALLATION PARTS LIST ASSEMBLY INSTRUCTIONS 4 to11 TECHNICAL SPECIFICATIONS TROUBLESHOOTING GUIDE SAFETY AND WARNINGS USAGE This height adjustable desk has an electric motor and is designed for use in dry work areas only. The desk height is adjustable so that it can be positioned at the most ergonomically suitable height.
  • Page 3 PARTS LIST Components Qty 4 Lifting Column Qty 8 Crossbar end(4left, 4right) Qty 4 Crossbar center Rails Qty4 Side Brackets Qty 2 control box Qty 2 Keypad Qty 2 power cord Qty 8 Leveling Studs Qty 1 Middle Cross Bar Center Rails Qty 2 Middle Cross Bar end (left/right) Qty 2 Connecting Bar (left/right) Hardware...
  • Page 4 ASSEMBLY INSTRUCTIONS First, Lay out all components and hardware to ensure that you have all the parts listed on the compo- nents list. Then Slide Crossbar Center Rails (Part #3) out of Crossbar Ends (Part #2). Line up the holes on each Leg (Part #1) with the holes on each Crossbar End (Part #2).
  • Page 5 Insert qty 4 Machine Screws (Part #12) through the 4 holes of each Crossbar End (Part #2) going into the Leg (Part #1). Using the Allen Wrench, rotate each screw ONLY 3 times. Line up the 2 holes on the Side Brackets (Part #4) with the Crossbar End and Leg assembly from the previous step.
  • Page 6 Repeat Step A-D, and set up the second desk. Then take out the middle cross bar (Part #9, Part #10) Put the 2 desks parallel, use Connection bar (Part #11) to connect the 2 desk legs, and tighten the screws. ...
  • Page 7 Use screws to fix assembled parts in Step F (Part #9, Part #10), on Step G (Part #11). ...
  • Page 8 Carefully place the upside down desk base on the under underside of your desktop. Place the base where you want it. Some will want the frame to be all the way to the edge of the desk. We recommend leaving at least 1/2” of desktop width (on each side) protruding beyond the frame width. Then slide the Center Rails to ensure the tape mark (step D) is centered between the Top Mount Frame Ends.
  • Page 9 Never use countersunk screws to fasten We recommend you pre-drill any holes into the desktop. This will cause much needed for fasteners connecting the Control box to the top. This will make greater stress on the desktop. Ensure it easier to attach the screws and will greatly any screw used will not puncture through the desktop surface or otherwise damage lessen the stress caused by driving a screw...
  • Page 10 Turn the assembled desk right-side-up (2 person operation), Tighten the screen on the connecting bar.
  • Page 11 Connect the Wires as per the diagram below. Use the adhesive-backed Cable Clips (Part #18) to secure the Connecting Wires, so they don’t sag. Turn the assembled desk right-side-up. With two people, grab the desk by the base (not the desk- top) and turn the desk right-side up.
  • Page 12 TECHNICAL SPECIFICATIONS Height Range 23.4” – 48.6” (without desktop) Adjustable frame 47.2” min – 70.9” max Travel Speed 1.5” per second Weight Capacity 225 lbs. Duty Cycle 10%, Max. 2 mins on, 18 mins off Function 4 Memory position in the handset 0.1W standby power ecofriendly Anti-collision technology to prevent damage Adjustable desk frame...
