Summary of Contents for EasyWater Toxin Shield+ TS+1000

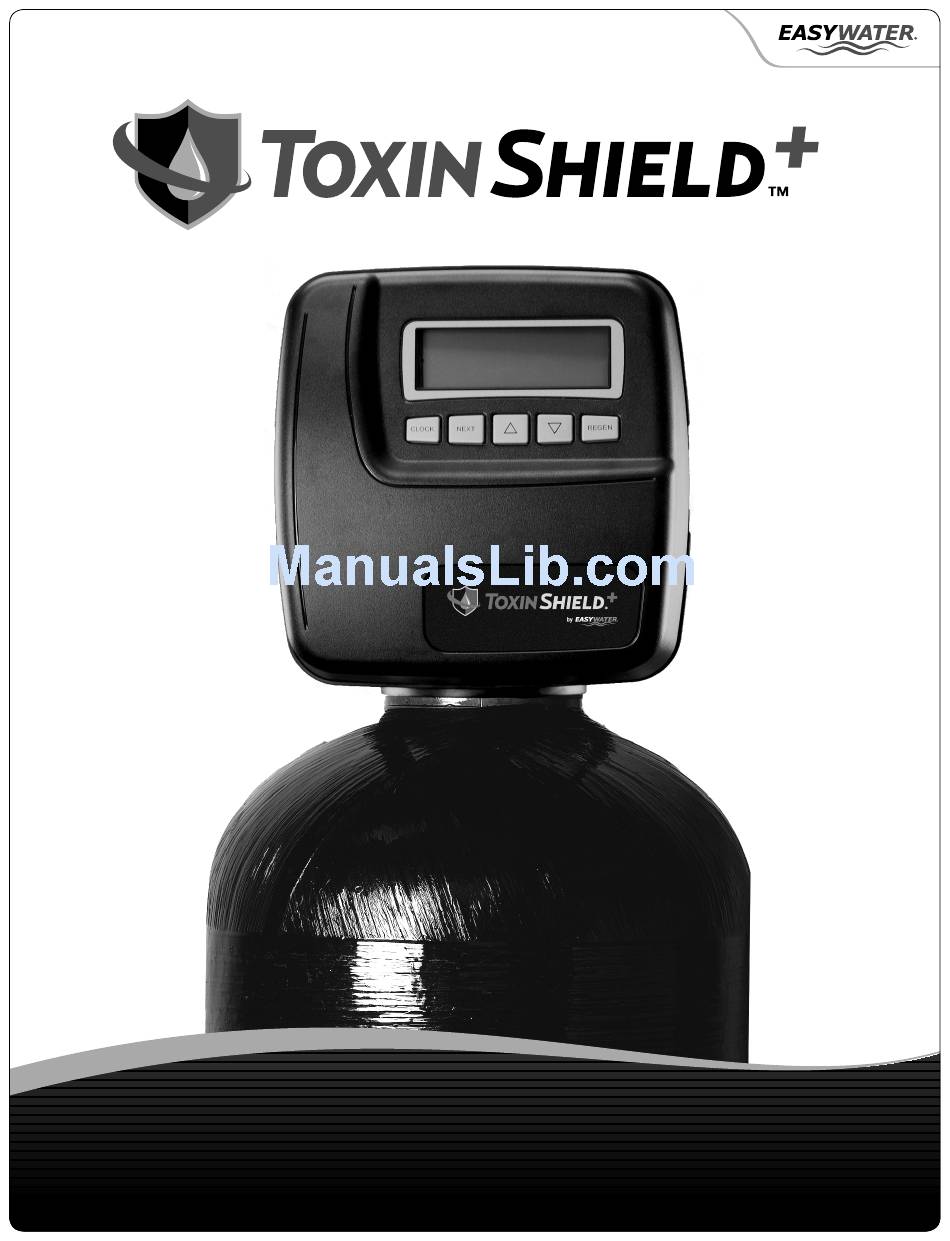

- Page 1 Installation & Service Manual...
-
Page 2: Table Of Contents
Table of Contents Unpacking & Inspection ................................Basic Guidelines .. -
Page 3: Unpacking & Inspection
Be sure to inspect the entire shipment immediately upon receipt for any shipping damage or parts loss. Also note any damage to the shipping carton. Contact the transportation company for all damages and loss claims. EasyWater is not responsible for damages in transit. Basic Guidelines »... -
Page 4: Specifications
Specifications Optimal Max Service Min Backwash Model Tank Size Flow Rate Flow Rate Flow Rate Pressure TS+ 1000 10” x 54” < 7 gpm 20 gpm 5 gpm 120 psi TS+ 2000 13” x 54” < 12 gpm 20 gpm 10 gpm 120 psi 6.5”... -
Page 5: Before Starting Installation
Before Starting Installation WHERE TO INSTALL THE FILTER » Place the filter as close to the incoming water line as possible. On municipal applications, this would be as close to the water meter as possible. If you desire to bypass outdoor faucets, install or plumb as necessary (this will also conserve water and filter capacity). -
Page 6: Plan How You Will Install The Filter
Before Starting Installation (Cont’d) PLAN HOW YOU WILL INSTALL THE FILTER » You must first decide how to run in and out pipes to the filter. Look at the house main water pipe at the point where you will connect the filter. Is the pipe soldered copper, glued plastic or threaded brass/galvanized? What is the pipe size? »... -
Page 7: Setting The Controller
Setting the Controller The EasyWater Toxin Shield+ uses an electronic controller to manage the valve head, regeneration and backwash processes. When the unit is in the “Service” position (the unit is providing treated water) the display will alternate showing the current time of day and the days between regeneration. The regeneration cycle is preset to occur at 12:30 AM every seventh day. - Page 8 NOTE: If you use water during the 61-81 minute regeneration period the water will be untreated by the EasyWater Toxin Shield+. a. Press and hold the REGEN button for three seconds. Open two faucets inside the home.
-
Page 9: System Start-Up
System Start-Up (After installation is complete) Open two faucets inside the home. Turn the bypass valve into the service position. Fill the filter with water by turning on the water service valve SLOWLY. Close the two open faucets inside the home. Check installation for leaks. -
Page 10: Troubleshooting
Troubleshooting Problem Possible Cause Solution System Does Not No power Ensure unit is plugged in and receiving Backwash power Ensure system is not on a switch that gets turned off Power failure Reset time of day and check settings Defective motor Replace motor System is Not Drain line is kinked... -
Page 11: Limited Warranty
EasyWater Authorized Partner Dealer, contact EasyWater, Inc., at (888) 766-7258 or via email at info@easywater.com. We will repair or replace the part at no cost if our repair department determines it to be defective under the terms of the warranty.
