- Page 1 8 Port PRI Card- Quick Installation Guide www.allo.com Version 2.1...
- Page 2 Information in this document is subject to change without notice and should not be construed as a commitment on the part of allo.com. And does not assume any responsibility or make any warranty against errors. It may appear in this document and disclaims any implied warranty of merchantability or fitness for a particular purpose.
-
Page 3: About This Manual
Text in paragraphs without numbering represents ordinary information. o The Courier font indicates a command sequence, file type, URL, Folder/File name e.g. www.allo.com Support Information Every effort has been made to ensure the accuracy of the document. If you have comments, questions, or ideas regarding the document contact online support: http://support.allo.com... -
Page 4: Table Of Contents
4.1.1 Installation of LibPRI package ..................12 4.2 Installation of Dahdi Driver ....................13 4.3 Installation of Asterisk ...................... 14 4.4 Enable/Disable Hardware Echo Canceller ................ 15 5. Software Configurations ......................16 6. Appendix- PIN Assignments ....................18 www.allo.com Version 2.1... -
Page 5: Introduction
The Allo 2aCP8e (8 ports PRI Card) series cards equipped with Asterisk is to perform software- based echo cancellation. Asterisk maintains a number of open source echo cancellers. These open source echo cancellers provide a moderate level of echo cancellation, but not capable of dealing with higher levels or more advanced echoes. www.allo.com Version 2.1... -
Page 6: Identifying Ports

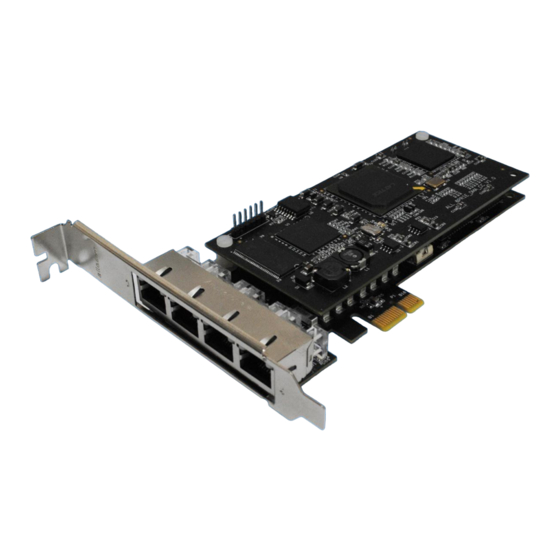

T1, E1, or J1 cables via Y-adapter dongles. The 2aCP8eL series cards can be used without Y-adaptor dongles, but only spans 1 through 4 will be accessible. Ports (1-4) PCIe Connector 8 Port PRI PCIe card with LEC (2aCP8eL) www.allo.com Version 2.1... -
Page 7: Y-Adopter Dongle
8 port PRI Card- Span Status LEDs 2.3 Y-adopter Dongle The Y-adopter dongles are provided for accessing all 8 spans on the 2aCP8eL series cards. The following figure helps to identify a dongle and its split end ports. Y-Adapter Dongle www.allo.com Version 2.1... -
Page 8: Dongle Split End
8 Port PRI Card- Quick Installation Guide 2.4 Dongle Split End Split A Split B Dongle Split End Connection Diagram www.allo.com Version 2.1... -
Page 9: Slot Compatibility
PCI Express 16-lane (x16) Slot Motherboard slots The 2aCP8e series cards work PCIe x1 slot including lane lengths x4, x8, x16 The 2aCP8eL PRI card will fit into above motherboard slots (PCI Express), but cannot fit into any of the other slots. -
Page 10: Software Configuration
Add “allo4xxp” at the end of /etc/dahdi/modules, so that while starting dahdi driver Allo card modules will load automatically. T1 Mode To configure the PRI card in T1 signaling mode, please add the following line in the relevant files, www.allo.com Version 2.1... -
Page 11: Hardware Setup
If the card has been recognized, it will be displayed in the output information. root voiptest ~]# lspci #04:00.0 Non-VGA unclassified device: Device 1d21:1280(rev 01) Device PRI Id Type of PRI Card 1280 8 ports PRI Card www.allo.com Version 2.1... -
Page 12: Software Installation Steps
Go to /usr/src directory and Download LibPRI by running the following command [root@localhostsrc]# wget http://downloads.asterisk.org/pub/telephony/libpri/libpri- 1.4.14.tar.gz After downloading LibPRI extract the LibPRI tar file by the command [root@localhost src]# tar -xvzf libpri-1.4.14.tar.gz Install the LibPRI by following the commands www.allo.com Version 2.1... -
Page 13: Installation Of Dahdi Driver
# make clean # make # make install 4.2 Installation of Dahdi Driver Download latest ALLO Dahdi Drivers and available for download from: http://www.allo.com/firmware/pri-card-second-gen/dahdi/dahdi-linux-complete- 2.9.1.1+2.9.1.tar.gz You can download the respective dahdi driver from http://allo.com/pri-eight-port-card.html under “Guides & Drivers”. Download the respective dahdi driver executing the following command #wget http://www.allo.com/firmware/pri-card-second-gen/dahdi/dahdi-linux-complete-... -
Page 14: Installation Of Asterisk
Download the latest version of asterisk. Asterisk is available for download from: http://downloads.asterisk.org/pub/telephony/asterisk/after downloading asterisk, extract the asterisk tar file by giving following command. #wget http://downloads.asterisk.org/pub/telephony/asterisk/asterisk-11-current.tar.gz Go to asterisk folder and compile the packages as shown in the screenshot www.allo.com Version 2.1... -
Page 15: Enable/Disable Hardware Echo Canceller
By default, it is set to "yes, “We have to set these option as “no”. For example: echocancel = no Echocancelwhenbridge=no If Hardware Echo canceller module present and “echocanceller” for all spans in /etc/dahdi/system.conf is set to yes, might cause the bad voice quality. www.allo.com Version 2.1... -
Page 16: Software Configurations
# echo "#include dahdi-channels.conf" >> /etc/asterisk/chan_dahdi.conf Execute the following command: # dahdi_cfg –vvvvv This command is used for reading and loading parameters in the configuration file system.conf and writing to the hardware. Start the Asterisk by executing www.allo.com Version 2.1... - Page 17 PRI span status CLI>pri show spans PRI Span Status (8 Port PRI Card) If you face any issues, please contact the reseller from whom you have purchased the ALLO product or submit a support ticket http://support.allo.com/ www.allo.com Version 2.1...
-
Page 18: Appendix- Pin Assignments
8 Port PRI Card- Quick Installation Guide 6. Appendix- PIN Assignments All four ports on the 2aCP8e Series card bracket are 8-pin RJ45 ports. The pin assignments are identified in the following table. 2aCP8e Series RJ45 Telco Port Connector Dongle Split A RJ45 Telco Port Connector www.allo.com... - Page 19 8 Port PRI Card- Quick Installation Guide Dongle Split B RJ45 Telco Port Connector www.allo.com Version 2.1...
- Page 20 8 Port PRI Card- Quick Installation Guide www.allo.com Version 2.1...
