Page 2: Quick Installation Guide

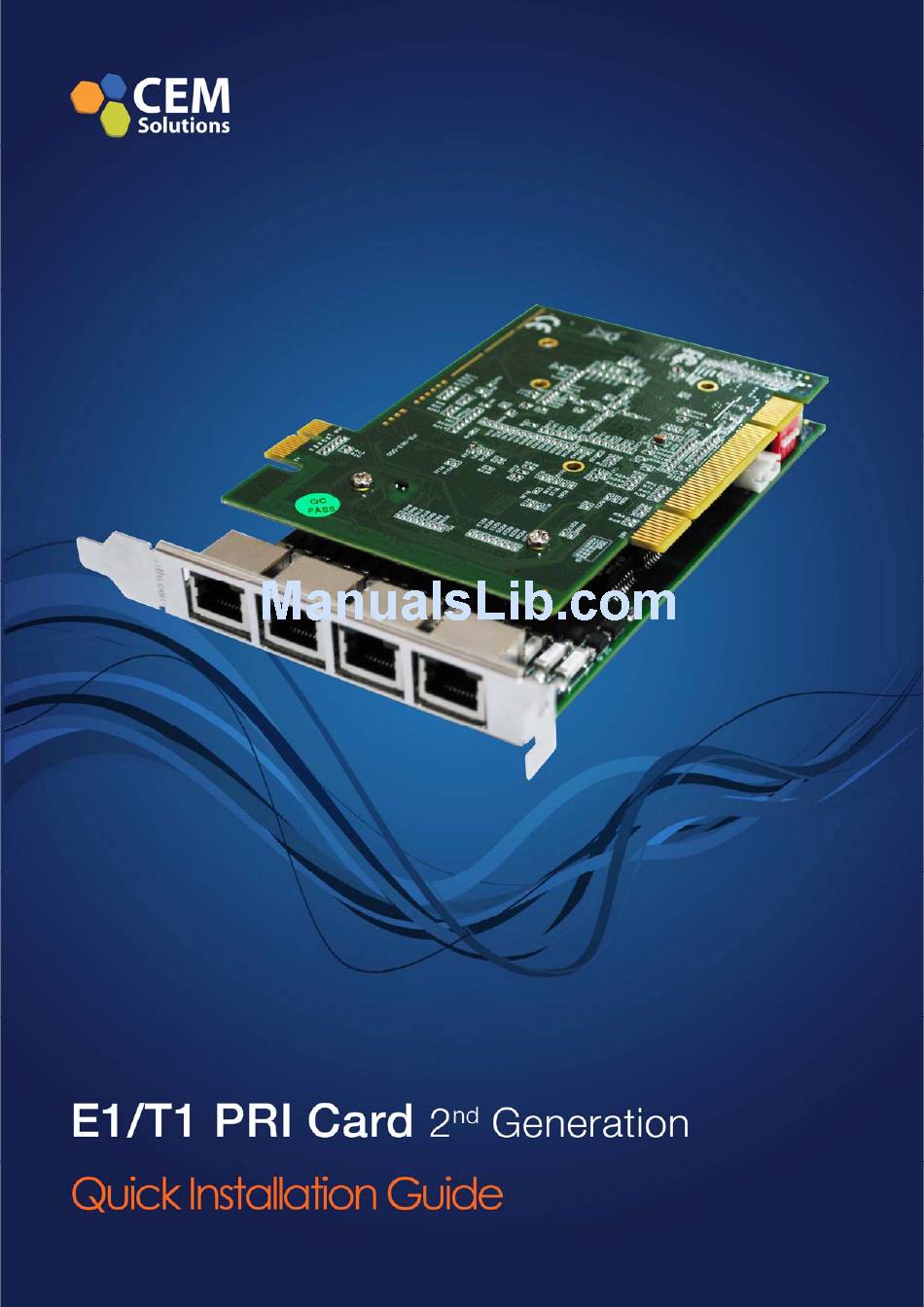

Generation E1/T1 PRI Card Installation E1/T1/J1 PRI Card Second Generation Quick Installation Guide Version 1.0 Quick Installation Guide v1.0 www.cem-solution.net... - Page 3 Generation E1/T1 PRI Card Installation Table of Contents Hardware Setup: ...................... 4 Software Installation Steps: ..................5 Software Configurations: ..................7 Quick Installation Guide v1.0 www.cem-solution.net...
-
Page 4: Hardware Setup
Generation E1/T1 PRI Card Installation Hardware Setup 1) Customization of the Second gen PRI card to use in PCI / PCIe server slot. 2) Insert the Second Gen 4 port PRI (PCI/PCIe) card in the corresponding PCI/PCIe slot of the Server. 3) Check if the installed PRI card is detected using the below command # lspci If the card has been recognized, it will be displayed in the output information. - Page 5 Generation E1/T1 PRI Card Installation Software Installation Steps: Test Environment Libpri-1.4.14 dahdi-linux-complete-2.7.0 asterisk-11.4.0 centos 6.2 (kernel version: 2.6.32) Installation of Pre requistic packages: Install all of Asterisk’s dependencies that are required to compile asterisk. Run the followings commands to install the required packages needed for compiling drivers from source.
- Page 6 Generation E1/T1 PRI Card Installation Use the following commands to install DAHDI drivers # cd dahdi-linux-complete-2.7.0+2.7.0 #make #make install #make config Successful Dahdi Driver installation shows the similar output & list the detected Dahdi devices Installation of Asterisk: Download the latest version of asterisk. Asterisk is available for download from: http://downloads.asterisk.org/pub/telephony/asterisk/ After downloading asterisk, extract the asterisk tar file by giving following command.
- Page 7 Generation E1/T1 PRI Card Installation If this is your first Asterisk Install, you should install the sample configuration files, to do this run: # make samples Software Configurations: After compiling and installing DAHDI and Asterisk, load the Dahdi driver by running: # /etc/init.d/dahdi start # dahdi_genconf –vvv If there is any error, please trace the cause.
- Page 8 Generation E1/T1 PRI Card Installation If you face any issues, please contact the reseller from whom you have purchased the CEM product or submit a support ticket http://support.allo.com/ Thank You for choosing CEM Solutions! Quick Installation Guide v1.0 www.cem-solution.net...
