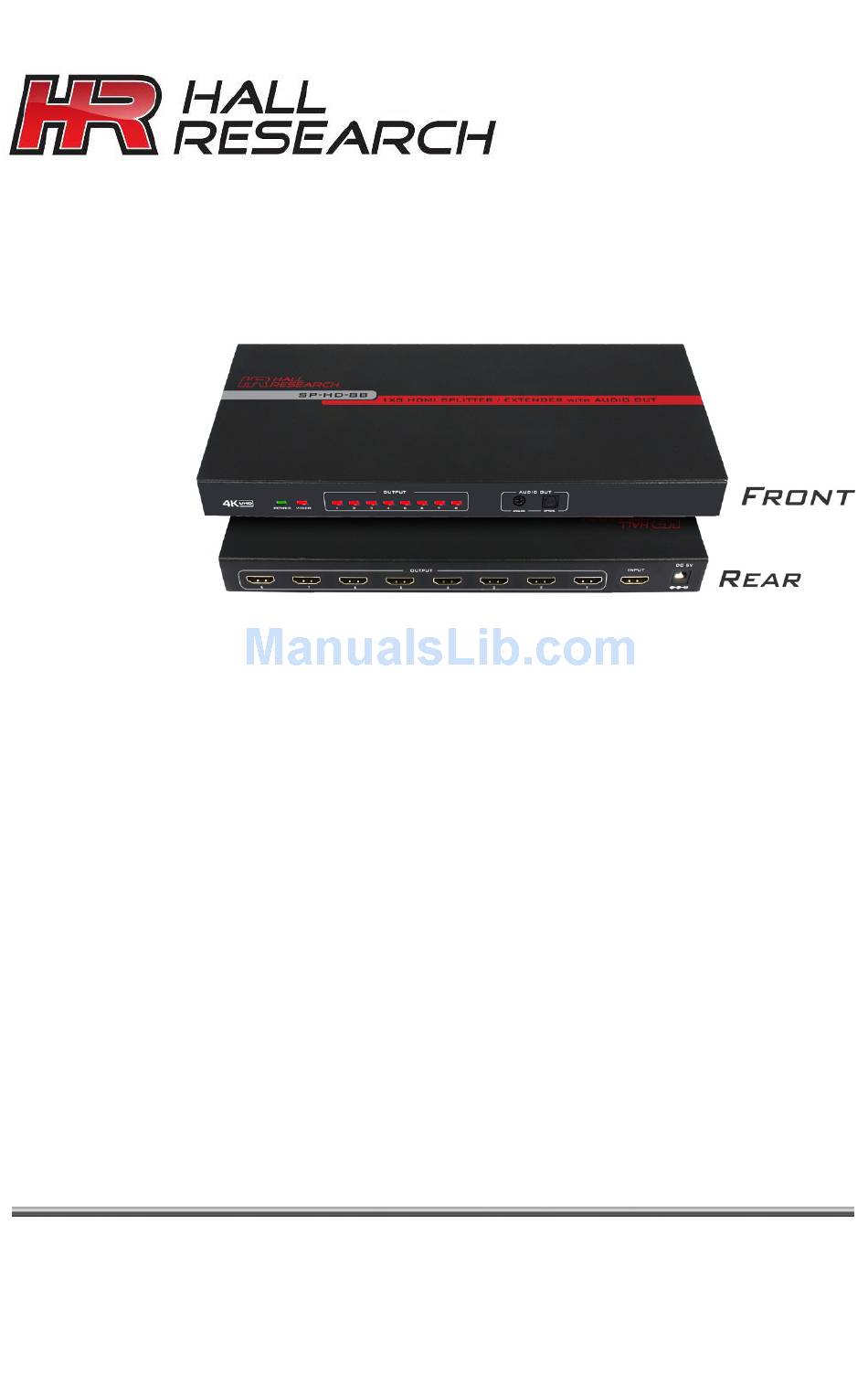

Hall Research Technologies SP-HD-8B User Manual

1x8 hdmi video splitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Provides Analog and Digital Audio Outputs
CUSTOMER
SUPPORT
INFORMATION
SP-HD-8B
1x8 HDMI Video splitter
Supports 4K UHD
Smart EDID Management
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
User's Manual
UMA1257 Rev. N/C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-HD-8B and is the answer not in the manual?

Questions and answers

Related Manuals for Hall Research Technologies SP-HD-8B

Summary of Contents for Hall Research Technologies SP-HD-8B

  • Page 1 User’s Manual SP-HD-8B 1x8 HDMI Video splitter Supports 4K UHD Provides Analog and Digital Audio Outputs Smart EDID Management Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...

  • Page 2: Table Of Contents

    SP-HD-8B Contents 1.1 General ....................... 3 1. Introduction ...................... 3 1.2 Features ......................3 2. Package Contents..................... 3 3. Controls, Functions and Indicators ............4 4. Installation ......................5 5. Smart EDID Management ................5 6.1 Contacting Hall Research ................6 6.

  • Page 3: Features

    1.1 General 1. Introduction Thank you for purchasing the SP-HD-8B, 8-channel HDMI Splitter from Hall Research. This Splitter can distribute one (1) DVI or HDMI audio/video source to eight (8) identical outputs simultaneously without any loss. It is compliant to HDCP 1.4 and supports 4K UHD resolutions up to 4K@30Hz (4:4:4), HDR and 3D.

  • Page 4: Controls, Functions And Indicators

    SP-HD-8B 3. Controls, Functions and Indicators Front Panel Input Power Indicator LED lights when power is applied to the unit. HDMI Source Indicator LED lights when HDMI source signal is connected HDMI Output Indicator 1- 8 LEDs light when HDMI display is connected Audio Output Audio Extraction (analog audio L/R and SPDIF).

  • Page 5: Installation

    EDID for the source based on connected displays. If no displays are connected, the splitter uses an internal "default" HR EDID so the source sends signal. The SP-HD-8B maintains the audio extraction feature even if there are no active displays connected to it, this is done by passing a custom HR EDID to the source.

  • Page 6: Shipping And Packaging

    SP-HD-8B 6. Cascading (Daisy Chaining) You can use any output to connect the splitter to another SP-HD-8B to expand the # of outputs. This can be done to a maximum of three (3) levels deep. Daisy Chaining 6.1 Contacting Hall Research 6.

  • Page 7: Specifications

    UHD HDMI Video Splitter, 8-Channel 7. Specifications Video Standards HDMI 1.4, HDCP 1.4 Input Port 1 x HDMI Type A [19-pin female] Output Port 8 x HDMI Type A [19-pin female] Video Resolutions Up to 4K-2K @30Hz (4:4:4 3840x2160 @30) 3D Format 1080P @60Hz.
  • Page 8 © Copyright 2017. Hall Research, Inc. All rights reserved. CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
