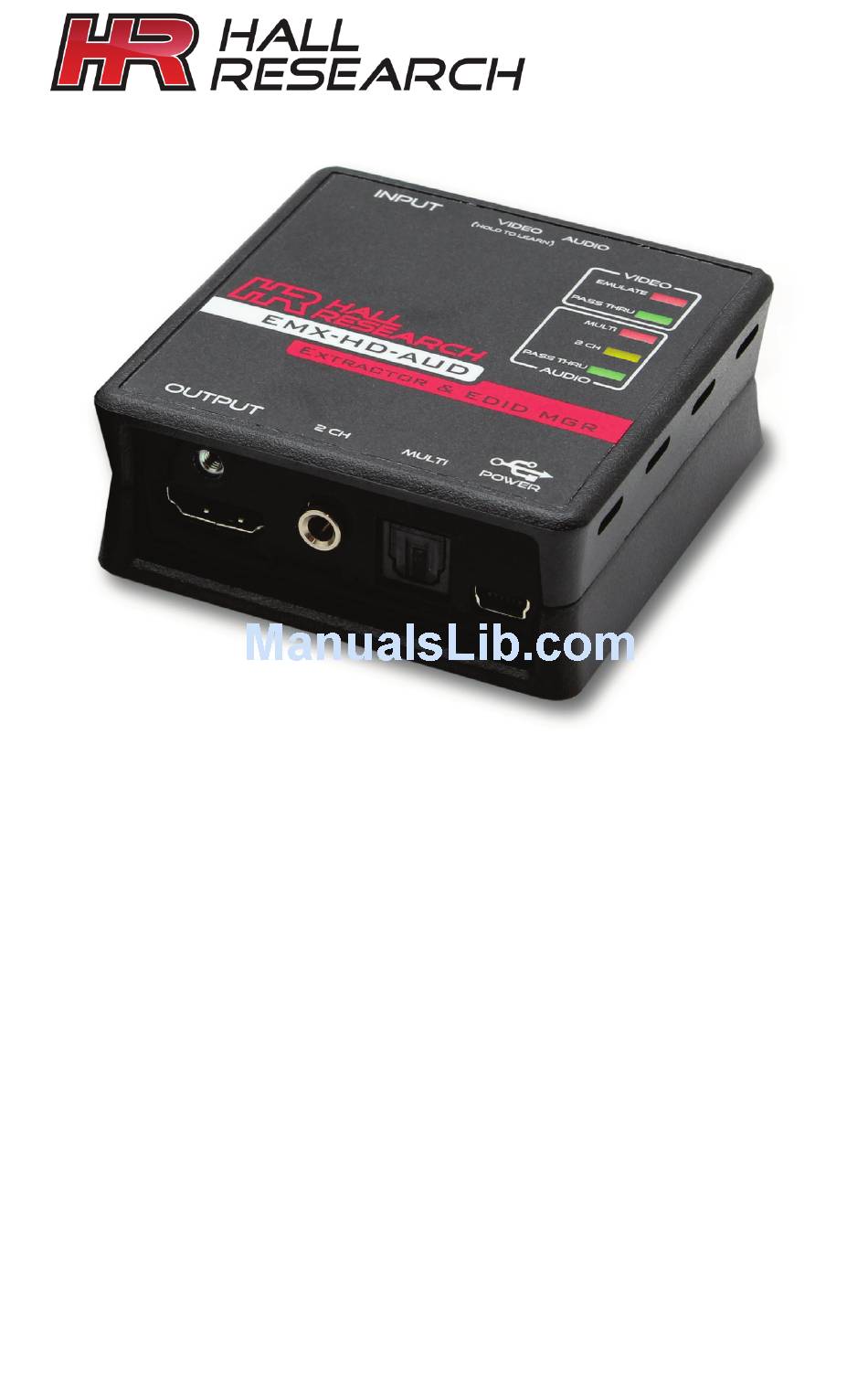

HDMI Audio Extractor w/ EDID Management
Functions as a pass-through HDMI extender
Extracts audio from the HDMI video
Provides both digital and analog audio outputs
Can learn and Emulate EDID from any display
USB port for device management with included software
Supports HDCP, HDMI deep-color and 3D
CUSTOMER
Order toll-free in the U.S. 800-959-6439
SUPPORT
FREE technical support, Call 714-641-6607 or fax 7641-6698
INFORMATION
Mail order: Hall Research, 1163 Warner Ave., Tustin, CA 92780
Web site: www.hallresearch.com
EMX-HD-AUD
User's Manual
E-mail: info@ hallresearch.com
UMA1201 Rev G
Advertisement
Table of Contents
Related Manuals for Hall Research Technologies EMX-HD-AUD
Summary of Contents for Hall Research Technologies EMX-HD-AUD
- Page 1 User’s Manual EMX-HD-AUD HDMI Audio Extractor w/ EDID Management Functions as a pass-through HDMI extender Extracts audio from the HDMI video Provides both digital and analog audio outputs Can learn and Emulate EDID from any display USB port for device management with included software...
- Page 3 EDID data can be learned from any connected display by using the buttons on the box. EDID data can also be uploaded to the EMX-HD-AUD from a PC via the USB port. The device maintains HDCP compliance regardless of the EDID routing mode, so HDCP protected content passes through the system with protection intact even when the EDID is emulated from internal memory.
- Page 4 EMX-HD-AUD The EMX-HD-AUD is HDMI 1.3 and 1.4 (deep-color and 3D) compatible, and automatically compensates for the signal degradation caused by long cables of up to 50 ft (15 m) on its input and can drive HDMI cables on its output to 30 ft (10 m).
-
Page 5: Installation
Though designed to drive long cables on its output, when used as an extender, it is best to place the EMX-HD-AUD at the end of the long cable. In that way, its automatic equalizer can clean the output signal and open the TMDS “eye”. - Page 6 (x = 1.5, 3, 6, 10, 15, 25, 35 or 50 ft) 4.0 Default EMULATION resolutions The following is a list of supported resolutions in the internal EDID of the EMX-HD-AUD as shipped from the factory – the native resolution is highlighted in grey. When the user “learns”...
-
Page 7: Power Requirements
PC’s USB port), or from Pin 18 (+5 V) of the HDMI connector. To power the EMX-HD-AUD from the HDMI or DVI input, the source must be able to supply a minimum of 100 mA (@ 5 vDC). Using a video source with insufficient power capabilities will result in erratic operation and loss of video. - Page 8 After restoring factory defaults, ALL LEDs will illuminate one at a time in a circular pattern 5 times. 7.0 Free Windows Software GUI The EMX-HD-AUD is controllable via a free Windows™ based GUI available on the Hall Research website at http://www.hallresearch.com. © Copyright 2014 Hall Research, Inc.
-
Page 9: Troubleshooting
EDID Not Learned Correctly......Ensure VIDEO & AUDIO modes not changed When an EDID is learned, the EMX-HD-AUD will be in Pass-Thru modes for both Video and Audio. In these modes, the EDID will remain un-touched and can be exported, if desired. -
Page 10: Returning Unit For Repair
If you need to transport or ship your unit: Package it carefully. We recommend that you use the original container. The EMX-HD-AUD has no user serviceable parts. Opening the unit will void the warranty. Before you ship the units back to Hall Research for repair or return, contact us to get a Return Authorization (RMA) number. - Page 12 © Copyright 2014. Hall Research, Inc. All rights reserved.
