RED LED
(LOCKED)
KEY BUTTON
BLUE LED
(ACTIVITY)
Introduction

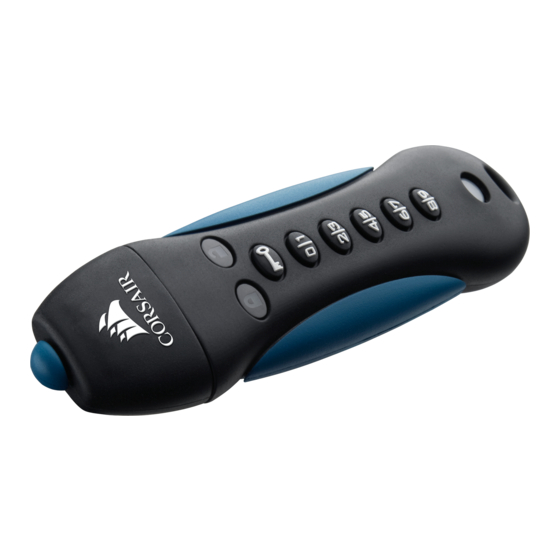

Thank you for purchasing the Corsair Flash Padlock 3. Your new Flash Padlock 3 is
a AES 256-bit hardware encrypted USB Flash Drive suited for security-minded consumers
and professionals. Your own custom personal identification number (PIN) is the key to
unlocking the information stored on your Flash Padlock. Accidentally losing your flash
drive now doesn't mean anybody can access your sensitive information; the information is
protected on the Flash Padlock.
Your new Flash Padlock 3 is initially unlocked and will work like any other USB Flash
Drive (UFD) out of the box. To secure and protect your data, we recommend you first set
a User PIN.
GREEN LED
(UNLOCKED)
PIN KEYS
ENGLISH
FLASH
FLASH
USB 3.0
User
Manual
Advertisement
Table of Contents
Related Manuals for Corsair FlashPadlock3
Summary of Contents for Corsair FlashPadlock3
- Page 1 BLUE LED (ACTIVITY) Introduction Thank you for purchasing the Corsair Flash Padlock 3. Your new Flash Padlock 3 is a AES 256-bit hardware encrypted USB Flash Drive suited for security-minded consumers USB 3.0 and professionals. Your own custom personal identification number (PIN) is the key to unlocking the information stored on your Flash Padlock.
-
Page 2: Led Indicators
LED Indicators Your Flash Padlock 3 comes with three LED indicators on the top side of the unit. Each LED indicator, whether it’s solid or flashing or appears with another LED indicator, provides feedback to you on the current state of the Flash Padlock 3. - Page 3 3 seconds. The Padlock will response by lighting the red LED and then fading it out. Note your Padlock will automatically lock itself upon removal from the USB port. Change User PIN Corsair recommends regularly changing your User PIN in order to prevent unauthorized access to your Flash Padlock 3. DIRECTIONS EXPLANATION 1.
- Page 4 5. Reenter the new admin password. 6. Press KEY button twice to end confirmation of the admin password. The red LED will remain light while the password is saved. Green LED will light. When complete, the green LED will light. Note once Admin PIN is created, it cannot be cleared under normal usage.
- Page 5 Setting User Read-only Mode DIRECTIONS EXPLANATION 1. Unlock the drive as the user. Green LED will light. 2. Press KEY button three times. Blue and green LEDs will blink. 3. Enter the sequence 7 5. 4. Press KEY button to make the setting. Green LED will light.
-
Page 6: Troubleshooting
Troubleshooting Below are directions on how to proceed in typical troubleshooting scenarios. Dead Battery Flash Padlock 3 has an internal battery. If the internal battery is fully discharged, you may still continue using your Flash Padlock 3. DIRECTIONS EXPLANATION 1. Connect your Flash Padlock 3 to a USB port on any computer. 2. -
Page 7: For More Information
Visit corsair.com and click on “support.” © 2017 Corsair Components, Inc. All rights reserved. Corsair, the sails logo, and Flash Padlock 3 are registered trademarks in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured.
Need help?
Do you have a question about the FlashPadlock3 and is the answer not in the manual?
Questions and answers
My new padlock 3 will not accept the pin. I hit key twice but the blue light does not blink like the instruction says
The Corsair Flash Padlock 3 may not be accepting the PIN and the blue light may not be blinking due to the following reasons:
1. Incorrect PIN Attempts: If 20 unsuccessful User/Admin PIN entries have been made, the User and Admin PINs are cleared, and all data is permanently lost. The drive would be in an unlocked state but without any valid PINs.
2. Locked State: If multiple failed PIN attempts have occurred (e.g., after 15 total failed attempts), the drive locks for 2 minutes, indicated by a rapidly blinking red LED. During this time, no PINs will be accepted.
3. Dead Battery: If the internal battery is fully discharged, the drive may not function until it is connected to a USB port for charging. It is recommended to keep it connected for at least an hour to fully charge the battery.
If none of these apply, a factory reset may be required to regain access, but this will erase all data.
This answer is automatically generated
