Summary of Contents for Snuza PICO

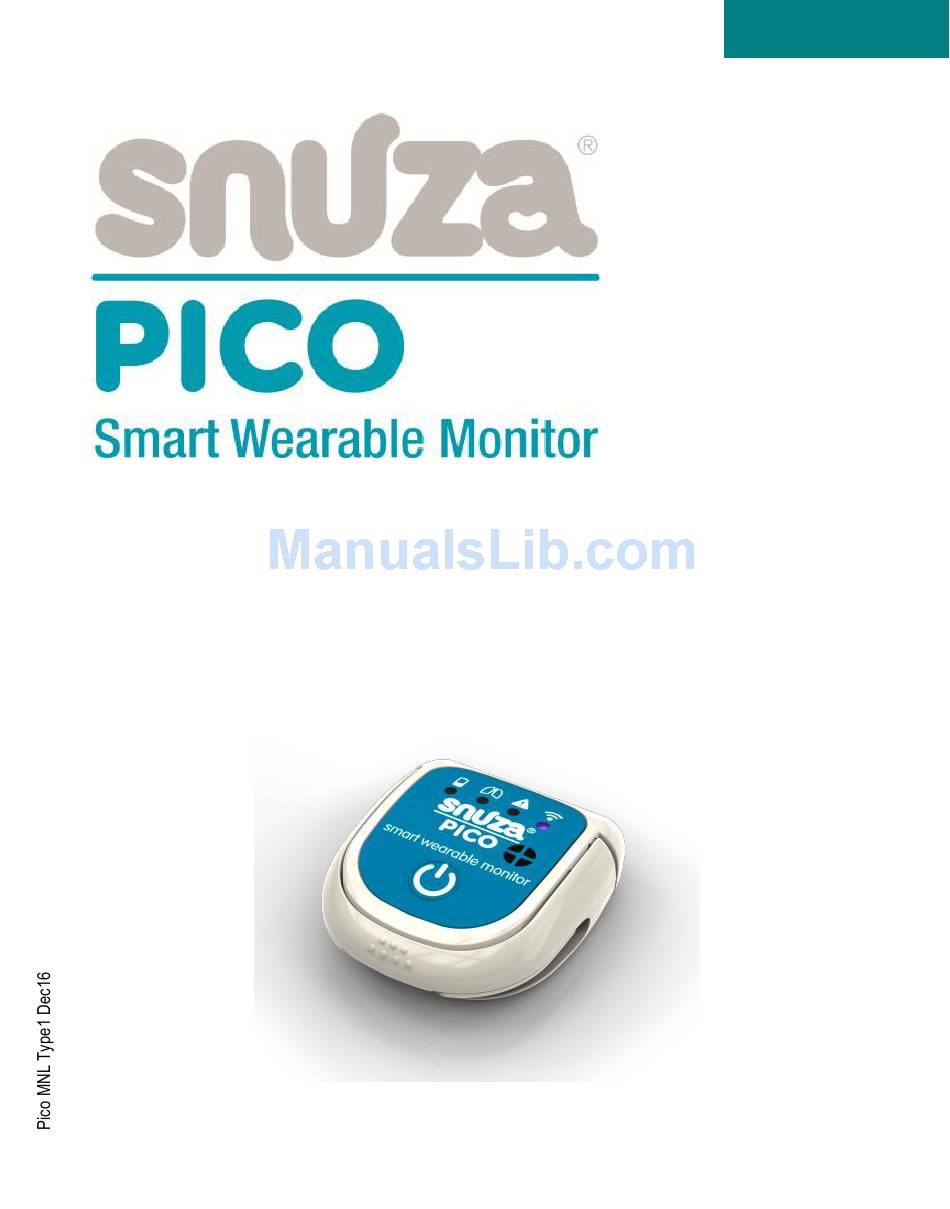

- Page 1 English INSTRUCTION MANUAL READ INSTRUCTIONS IN FULL BEFORE USE...
- Page 2 English IMPORTANT Snuza Pico is a baby-care aid, not a medical device. It is not intended for the diagnosis, prevention or monitoring of a disease, injury or handicap. Pico is also not suitable for co-seeping. SNUZA is a registered trademark of...
-
Page 3: Table Of Contents
3. Precautions and Contra-indications ............5 4. Parts Identification .................. 6 5. Quick Start Guide ................... 8 6. Diaper (Nappy) Fitment ............... 10 7. Fitting your Pico ................... 11 8. Operation ..................... 12 8.1 Clip onto diaper ................12 8.2 Switch on/off .................. 12 8.3 Pause ..................... - Page 4 English 12. Troubleshooting ..................20 13. Disclaimer ..................... 20 14. Guarantee ..................... 20 15. Regulatory information ................. 21 16. Technical Description ................23...
-
Page 5: Important - Read First

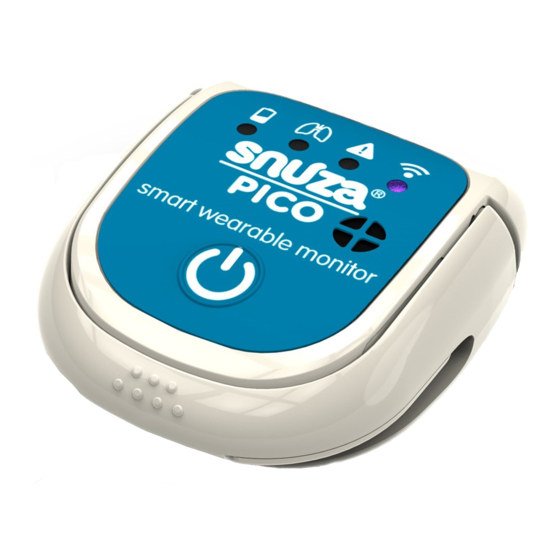

English 1. IMPORTANT – READ FIRST! Snuza Pico is designed to be attached to the diaper during sleep so that your baby's movement rate, body temperature and body position can be continuously monitored. This information is streamed to your smart device via Bluetooth low energy technology. - Page 6 English English device. Pico will sync with the App on the smart device and the data will be displayed on the dashboard. (Note: press the refresh button on your smart device if it doesn’t sync automatically). For accurate position information, please go to the settings page on the App and indicate where the Pico monitor is attached on the diaper.
-
Page 7: Introduction
Pico should be clipped onto your baby's diaper (nappy) for total portability. No cords, wires, sensor pads, or external power are required. Pico is not suitable for co-sleeping or bed sharing. - Page 8 Snuza Pico detects even the slightest abdominal movement and will alert you if your baby’s movement stops for a period of 20 seconds. Snuza Pico will first vibrate gently after 15 seconds in an attempt to rouse the baby. If the vibration succeeds in rousing the baby and breathing is detected after such an event the Pico will continue to monitor movement.
-
Page 9: Precautions And Contra-Indications
Obstructive Apnea. Movement from external sources such as being pushed in a pram or travelling in a vehicle or aircraft may be detected by Pico’s sensor. Snuza Pico should not be relied upon where external sources of movement are present. -
Page 10: Parts Identification
English 4. PARTS IDENTIFICATION... - Page 11 English...
-
Page 12: Quick Start Guide
Registration’ tab in the menu. Enter your device serial number and complete the required detail fields. The serial number can be found on the side of the Pico, or on the side of the Pico packaging. Step 4: Attach your Pico Fold over the top edge of your baby’s diaper and fit the diaper snugly. - Page 13 BASIC PICO FUNCTIONALITIES The Movement Indicator Light flashes green on each movement. If no movement is detected for 15 seconds, your Pico will vibrate to rouse your baby. If no movement is detected for a further 5 seconds, your Pico will sound an audible alarm.
-
Page 14: Diaper/Nappy Fitment
6. DIAPER/NAPPY FITMENT Important: Correct diaper fitment is essential for the operation of Pico. The thin flap of material at the top of the diaper must be folded over the thicker part before the diaper is closed (this is the... -
Page 15: Fitting Your Pico
Close the clip and click the locking lever closed as shown:- Make sure that the Pico is close to the baby’s tummy around the belly button area, although closer to the sides may suit different sleeping positions. -
Page 16: Operation
Place on tummy for back sleepers. Place on side of tummy for belly sleepers. Snuza Pico has a built in alarm to indicate if the clip has been opened while in use. Before the alarm occurs, the Snuza Pico will beep slowly for 7 seconds to warn you to switch it off or activate the pause function. -
Page 17: Pause
The pause function can be activated directly from the App by tapping the Pause button. Charging Pico's carry case (12) is a unique power charger which recharges the built in battery by simply placing the Pico in the carry case. -
Page 18: Indicator Lights
Startup and shutdown sequences Startup using power button When Snuza Pico is switched ON using the power button (6), the indicator lights (1, 2, 4, 5) will flash in sequence from left to right, followed by a startup tone. Immediately after the startup tone, the battery indicator light (2) will flash to indicate the state of the battery when it is switched on. -
Page 19: Movement Indicator Light
English Switch off using App When Snuza Pico is switched OFF using the App, no audible tone is heard, but the usual shutdown indicator light flash sequence occurs. 8.6 Movement indicator light The Movement Indicator Light (1) flashes when movement is... -
Page 20: Battery Indications
Freefall - Snuza Pico sounds an alarm and simultaneously flashes the alarm indicator light (4). The App also sounds an alarm. System fault - Snuza Pico sounds a lower frequency alarm on the device and the App. Clip (7) open alarm - Warning beeps for 10 seconds, and then a continuous 3 beep alarm sounds with the warning indicator light flashing and an alarm sounding on the App. -
Page 21: Clothing
Snuza Pico is being charged or not. It only indicates if power is applied to the charger. To determine if Snuza Pico is charging when it is on the charging cradle, refer to the previous section. 8.11 Clothing ... -
Page 22: Rouse Warning
Note: If the Smartphone is connected, all warnings and alarms, as well as all real time data are visible on the App. During monitoring, if no breathing movement is detected for 15 seconds, Snuza Pico vibrates gently in an attempt to rouse the baby. If abdominal movement resumes within the... -
Page 23: Charging The Battery
English 10.2 Charging the battery Pico's carry case is a unique power charger which recharges the built in battery by simply placing Pico in the carry case. 11. MAINTENANCE 11.1 Disposal The device, and packaging material must be disposed of in accordance with your country’s laws governing the disposal and... -
Page 24: Troubleshooting
English 12. TROUBLESHOOTING 12.1 Check incorrect fitment and placing of Pico on baby’s diaper (see Section 5 Diaper/Nappy Fitment and Section 7 Fitting your Snuza Pico). 12.2 Battery failure. The Battery Indicator Light (1) will show red. Please visit our website www.snuza.com... -
Page 25: Regulatory Information
15. REGULATORY INFORMATION FCC compliance statement for Pico and charging cradle:- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference;... - Page 26 (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES-3 (B)/NMB-3(B) This device complies with the safety requirements for RF exposure in accordance with RSS-102 Issue 5 for portable use conditions. Cet appareil conforme avec les règlements et exigences des radiofréquences en conformité...
-
Page 27: Technical Description
English 16. TECHNICAL DESCRIPTION Type BF applied part CE marking according to CE 1999/5/EC, 2001/95/EC, 89/336/EEC (TV Rheinland) FCC marking according to Federal Communications Commission – USA FCC ID: 2AI3601 IC: 21736-01 This device complies with Industry Canada licence-exempt RSS standard(s) IP52 The enclosure of the monitor is... - Page 28 See the Disposal section for proper disposal of the monitor Typical service life Pico has an expected service life of 5 years from the date of manufacture Environmental Conditions Permissible environmental operating conditions: · Temperature: 5 ºC to 40 ºC.
- Page 29 English Contact Us: For assistance with using or maintaining Snuza Pico or to report unexpected operation or events, contact us via: Internet: www.snuza.com/contact.php Email: support@snuza.com Tel: +27 (0)21 461 8530 Address: Unit 11 Roeland Square, Roeland Street, Cape Town 8001,...
