GJD Elite GJD022 Manual

Elite

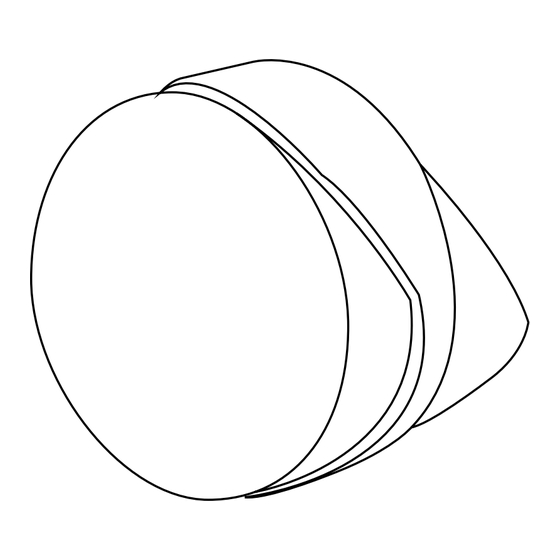

GJD022 /GJD023 35m External PIR
An independent passive infrared detector that simultaneously
or individually controls cameras, VCR's, DVR's and all low
voltage switching requirements.
The Elite offers a high level of adaptability, there are seven
different modes of operation giving various permutations of
normally open and normally closed arrangements for the
two pairs of volt-free relays, plus a selection of timing and
functional options for the relay changeover contacts.
Other programmable parameters include the duration of
timed changeover, a pulse count feature and a choice of
detection ranges from 10 to 35 metres.
In addition there are two switched negative outputs. The 'A'
output gives a single 400ms trigger every time the detector
activates and is generally used in conjunction with the GJD
lighting controllers to give 24 hour visual and audible alarm
indication. The 'S' output is the only photocell- controlled
output giving a fixed 60-second trigger on activation.
The flexibility of the four outputs and timers allows the Elite to
be used in multiple situations without the need for any further
customised equipment.
The integral dual axis title sensor allows 180º of pan and 90º
tilt. This increases the speed of the outdoor installation and
provides incredibly accurate aiming of the detection pattern.
The electronics module is acrylic coated for additional
component stability. It is encased in a vandal-resistant high
impact ABS housing with a UV stabilised translucent front
cover ensuring the sensor is impervious to and unaffected by
weather conditions.
The Elites effective design gives a neat appearance with no
visible indication of the orientation of the detector head, and
totally hides the wiring.

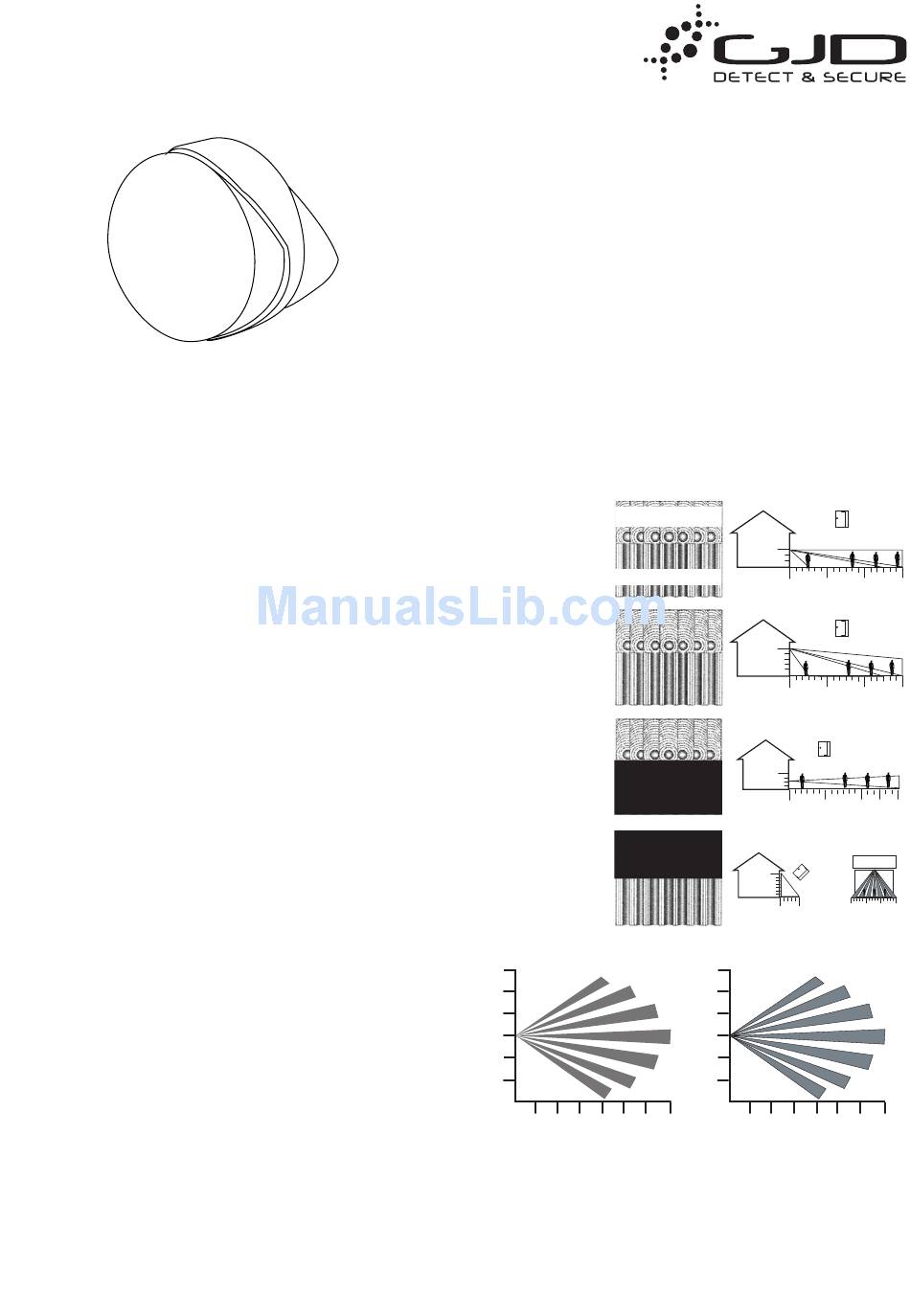

Multi Beam Lens Data

The GJD multifunction lens fitted to the GJD Elite detector
produces 9 long range beams and 9 medium to short range
curtain beams. Movement across the beams produces the
best response and range, whilst movement towards the
detector will be less responsive.
When mounting higher than boundary fences rotate the
module and mask off any beams, either vertically or
horizontally, that fall outside the area being covered. Use
portions of the self-adhesive silver mask supplied to the rear,
smooth side, of the lens and always replace the correct way
up as shown to obtain the exact beam pattern coverage.
LONG RANGE 30
METRE SECTION
MULTI-BEAM OPTIMUM
HEIGHT 3 METRES
RANGE MAXIMUM
MODULE TILT 0 DEGREE
10 TO 20 METRE SECTION
MULTI-BEAM OPTIMUM
HEIGHT 6 METRES
RANGE MAXIMUM
MODULE TILT 9 DEGREE
PET IMMUNITY
HEIGHT 1.5 METRES
RANGE MAXIMUM
MASK OFF FOR PET
MODULE TILT -2 DEGREE
ALLEY APPLICATIONS
UP TO 35 METRES
MASK OFF FOR
CURTAIN COVERAGE
CURTAIN COVERAGE
APPLICATIONS
HEIGHT 6 METRES
RANGE MAXIMUM
MODULE TILT 45 DEGREE
15
10
5
0
5
10
15
0
5 10 15 20 25 30
Beam Pattern set to maximum
range. Masking top section of lens
will reduce range to 20 metres
3
0 10
6
0 10
1.5
0 10
6
45
deg
0 5
6
4
2
0
2
4
6
0
35 2 4 6 8 10 12
Beam Pattern set to maximum
range. Masking top section of lens
will reduce range to 6 metres
0 deg
20 30 35
9 deg
20 30 35
-2 deg
20 30 35
0 5 10 15
14
