Summary of Contents for G&D DevCon-Center

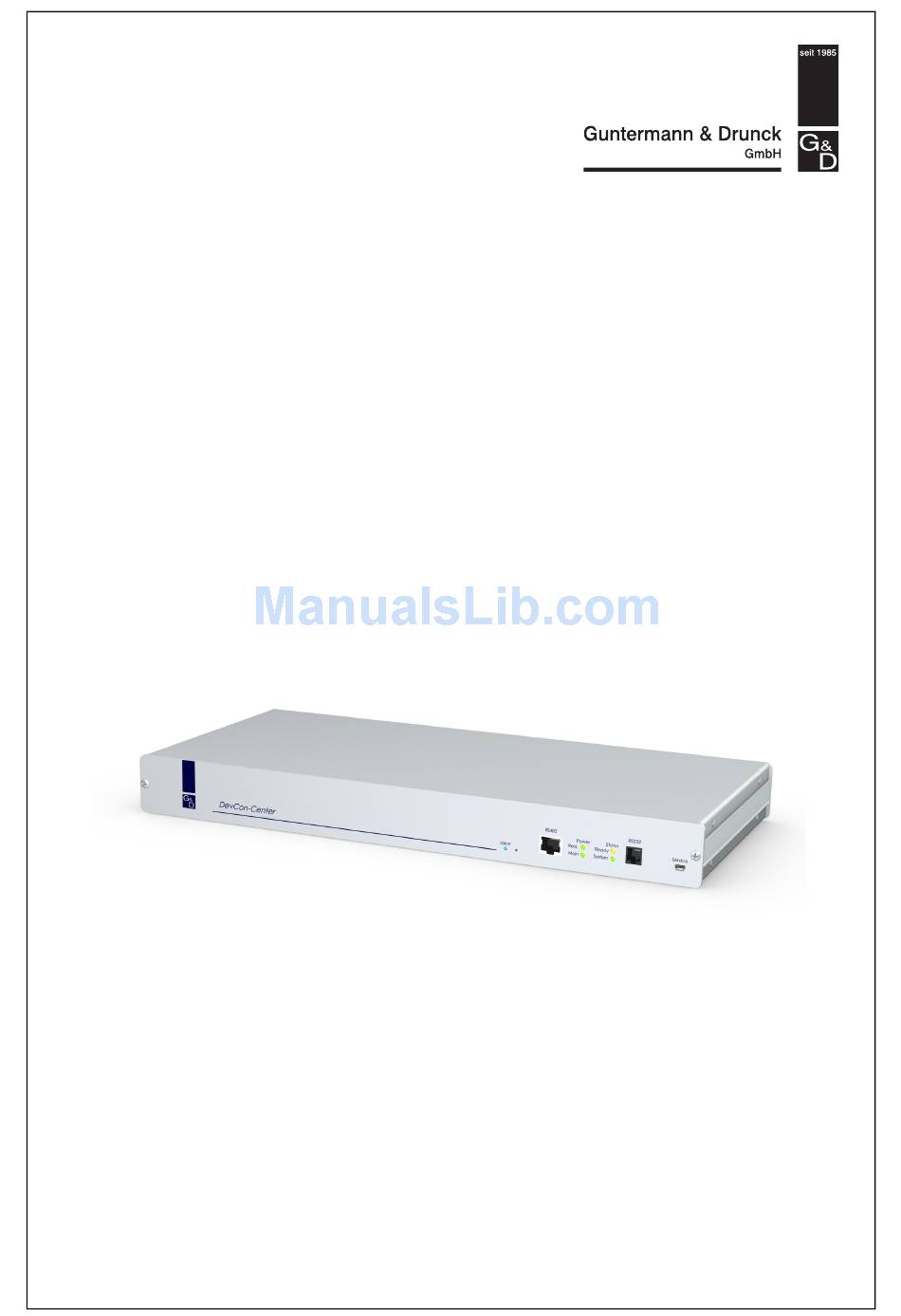

- Page 1 G&D DevCon-Center Installation Guide...
- Page 2 Impressum © Guntermann & Drunck GmbH 2010. All rights reserved. Version 1.10 – 15/04/2010 Firmware: 1.2.000 (00182) Guntermann & Drunck GmbH Dortmunder Str. 4a 57234 Wilnsdorf Germany Phone +49 2739 8901-100 +49 2739 8901-120 http://www.GDsys.de sales@GDsys.de i · G&D DevCon-Center...
-
Page 3: Table Of Contents
Contents Contents Safety guidelines ....................1 The »DevCon-Center« appliance ..............2 Scope of delivery ....................2 Installation ....................... 3 Initiation ......................3 Initial configuration of the network settings ............. 4 Adjusting a common database for all devices ............ 6 Using the Reset button ..................7 Resetting the default settings ................ -
Page 4: Safety Guidelines
Operate this device with the provided G&D power pack or with the power packs listed in the operating manual. , Operate the device only in the intended area of application This device has been designed for indoor use. Do not expose it to extreme cold, heat or humidity. 1 · G&D DevCon-Center... -
Page 5: The »Devcon-Center« Appliance
The Config Panel web application is integrated into various G&D devices. It provides the graphical user interface to configure and monitor the devices. Adding an DevCon-Center appliance to the existing G&D devices (with integrated web application) adds up to a KVM system which enables you to centrally configure and monitor the single devices. -
Page 6: Installation
After the initial configuration (see page 4), the cable is connected to the local network. Network B: If you want to integrate the DevCon-Center appliance into another network, insert the category 5 (or better) cable into this interface. Connect the other end of the cable to the local network. -
Page 7: Initial Configuration Of The Network Settings
Initial configuration of the network settings In order to access the web application, the network settings of the DevCon-Center appliance on which the web application is operated are to be configured. The following table lists the default settings of the Network A network interface:... - Page 8 11.Click the Logout symbol (see figure on the right) to end the active session of the web application. 12.Remove the twisted pair cable connection between computer and the appliance. 13.Integrate the appliance into the local network. 5 · G&D DevCon-Center...
-
Page 9: Adjusting A Common Database For All Devices
Adjusting a common database for all devices In order to being able to use the web application of the DevCon-Center appliance to administer, configure and monitor all devices of the KVM system, the databse set- tings of the different devices need to be configured. -
Page 10: Using The Reset Button
3. Keep the button pressed and switch on the device. 4. Release the button as soon as the green System LED is blinking. NOTE: It is also possible to use the Config Panel web application to reset the default settings (see separate manual). 7 · G&D DevCon-Center... -
Page 11: Temporarily Deactivating The Netfilter Rules
Using the Reset button Temporarily deactivating the netfilter rules In the default status of the DevCon-Center appliance, all network computers have access to the extender’s IP address (open system access). The web application enables you to create netfilter rules to control the access to the appliance. -
Page 12: Status Displays
Status displays Status displays Various status LEDs enable you to control the DevCon-Center’s current operating status. The following table lists all possible operating states and the respective LED displays: Range Status Meaning Ident. Ident. Lights up as soon as the LED has been activated via the web application. -
Page 13: Technical Data
14,8W@240VAC; 14,2W@100VAC Casing Material: anodised aluminium Dimensions (W × H × D): 435 mm × 44 mm × 286 mm Weight: approx. 2,8 kg Operating environment Temperature: +5 to +45 °C Air humidity: < 80%, non-condensing G&D DevCon-Center · 10... - Page 14 Notes 11 · G&D DevCon-Center...
- Page 15 Notes G&D DevCon-Center · 12...
- Page 16 Guntermann & Drunck GmbH Dortmunder Str. 4a 57234 Wilnsdorf Germany Phone +49 2739 8901-100 +49 2739 8901-120 http://www.GDsys.de sales@GDsys.de...
