KBA12030 X4 User Guide
X4
USER GUIDE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kaiser Baas X4

Summary of Contents for Kaiser Baas X4

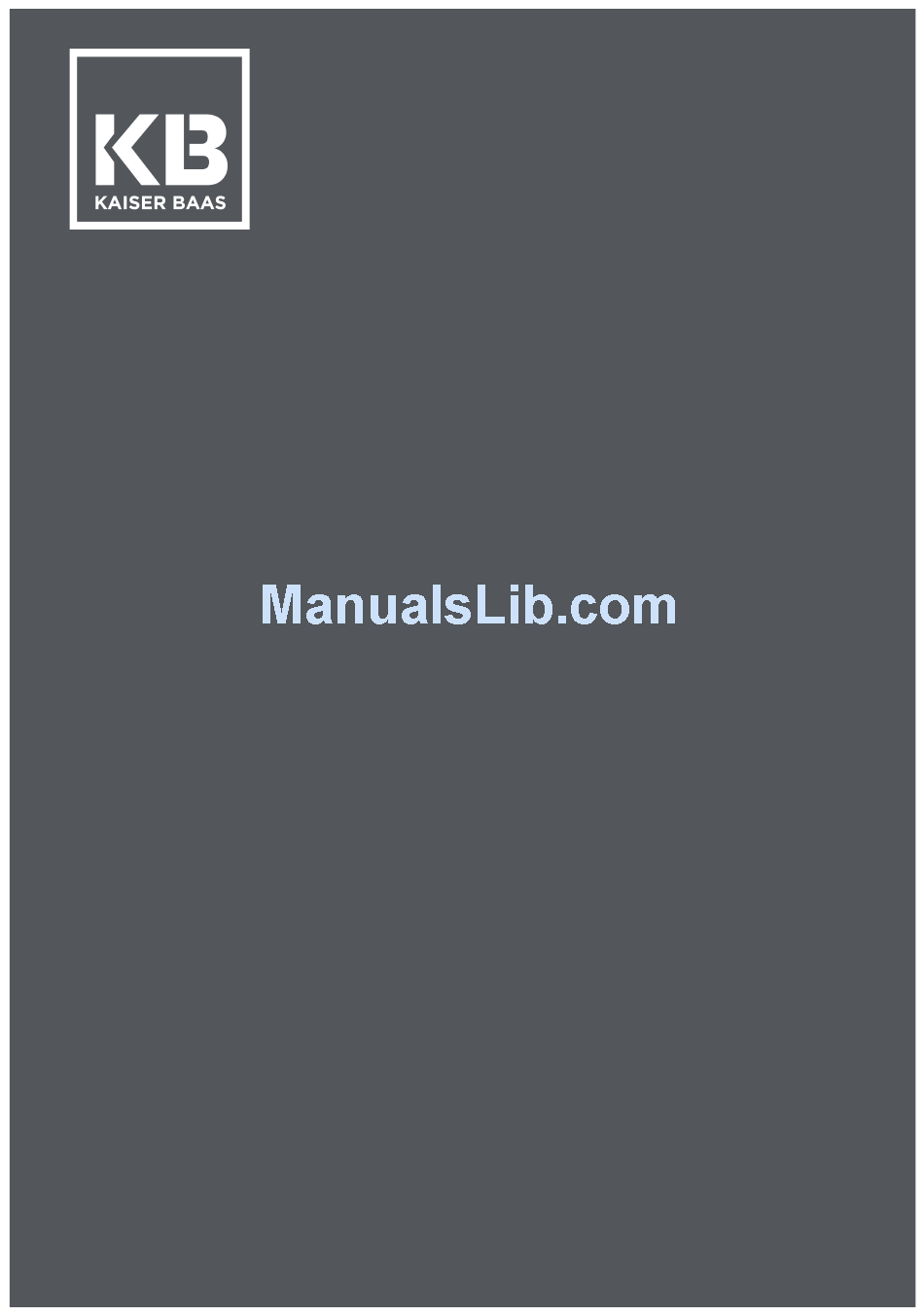

  • Page 1 KBA12030 X4 User Guide USER GUIDE...
  • Page 2 KBA12030 X4 User Guide...

  • Page 3: Table Of Contents

    KBA12030 X4 User Guide Table of Contents Important Safety and Operating Guidelines Camera Features Camera Front Diagram Camera Rear Diagram Waterproof Case Mounting Error! Bookmark not defined. Getting Started Battery Charging MicroSD Card Compatibility Firmware Update Power On/Off Navigation Capture Videos and Photos...

  • Page 4: Important Safety And Operating Guidelines

    DO NOT attempt to open the camera or modify it in any way. If the camera has been opened the warranty will be void. Maintenance and repairs should only be performed by Kaiser Baas. • DO NOT handle or charge the camera without its waterproof case using wet hands.

  • Page 5: Camera Features

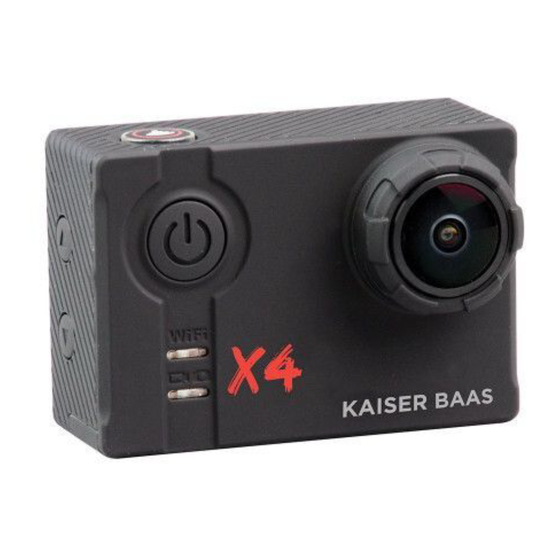

    KBA12030 X4 User Guide Camera Features Camera Front Diagram Power/Mode Button REC/Confirm/WiFi Button WiFi LED Microphone Record LED +/Up Button Lens -/Down Button...

  • Page 6: Camera Rear Diagram

    KBA12030 X4 User Guide Camera Rear Diagram Status LED LCD Screen Status LED MicroSD Card Slot ¼” Screw Mount Micro USB Port Battery Door Micro HDMI Port Battery Slot...

  • Page 7: Waterproof Case

    KBA12030 X4 User Guide Waterproof Case 1. Case Latch 5. Power/Mode Button 2. Record/Confirm Button 6. Waterproof Case Lens 3. +/Up Button 4. -/Down Button...
  • Page 8 KBA12030 X4 User Guide 7. Case Latch 8. LCD Backdoor 9. Accessory Mount...

  • Page 9: Getting Started

    MicroSD Card Compatibility Your camera requires a MicroSD Card (not included). Kaiser Baas recommends the use of a brand name Class UHS-1 or higher MicroSD Card. Any content recording higher than 1080P@60FPS will require a Class UHS-1 or higher card.

  • Page 10: Power On/Off

    Power On/Off To power ON your camera 1. Insert the battery into the camera. 2. Hold the power/toggle button for 2 seconds until you see the Kaiser Baas logo appear. Navigation Navigate the menus and camera modes using the 4 buttons found on your camera.

  • Page 11: Capture Videos And Photos

    The default mode is Video Mode. Click the Record button to start recording. There are 3 Indicator lights on the X4 Camera. One on the Front, One on the Back and One on the bottom. Refer to the Camera Diagram for exact placement. When recording, these 3 status LEDs on the camera will flash continuously.
  • Page 12 KBA12030 X4 User Guide Resolution Aspect Ratio UHD 3840x2160 16:9 16:9 SuperView 2880x2160 2704x2028 2704x1520 16:9 SuperView 16:9 2560x1440 16:9 16:9 1920x1440 4:3 1920x1080 120 16:9 100 16:9 16:9 16:9 16:9 SuperView 16:9 SuperView 1280x960 120 4:3 4:3 4:3 1280x720 240 16:9 200 16:9 120...
  • Page 13 KBA12030 X4 User Guide Video Quality This setting features 3 options. S.Fine (Super Fine), Fine and Normal. This setting changes the Video Bitrate and quality of the video. The higher that setting (Super Fine) the larger the video size. Please ensure your Memory Card speed can handle the appropriate bitrate when recording in Super Fine mode.
  • Page 14 KBA12030 X4 User Guide It may be useful if using the camera for extended periods of time to connect it to a power source (e.g. power bank). Note: Whilst in this mode the camera will stop recording after no movement is detected.
  • Page 15 By default, audio recording is set to 100% On. Auto DVR Auto DVR or Car Mode lets you use the X4 camera like a Dash Camera and record in Loop Mode. When enabled the X4 will begin recording the moment a power input/source has been detected.

  • Page 16: Photo Mode

    KBA12030 X4 User Guide Photo Mode Settings To enter Photo Mode, click the Power/Toggle button once on the front of the camera. Click the Record/Confirm button to take a photo. When capturing a photo, the blue status LED on the front of the camera and the blue power LED on the back of the camera will flash once.
  • Page 17 KBA12030 X4 User Guide Photo Burst Mode Photo burst lets you capture photos in a rapid fast firing sequence. You can set the following intervals 3/5/10 P/S (photos/second) Note: Shooting in higher intervals requires some time to save the images to the memory card.

  • Page 18: System Settings

    KBA12030 X4 User Guide System Settings Tv Mode Select the output mode for your TV: NTSC/PAL Light Frequency (Light Source) Default setting is Auto. However, if you experience any light strobing in your footage you may manually select 50/60hz OSD – On Screen Display Toggle whether in Video/Photo Capture Mode the user interface is displayed.
  • Page 19 KBA12030 X4 User Guide AWB – Automatic White Balance Manually control the white balance. Camera is set to Auto by default. Options include Auto, Incandescent, D4000, D5000, Daylight, Cloudy, D9000, D10000, Flash, Fluorescent, Water, Outdoor. EV Value Manually control the exposure/amount of light the camera records.
  • Page 20 KBA12030 X4 User Guide English French German Spanish Italian Chinese Russian Portuguese Polish Swedish Dutch Bluetooth Pair This option is for an optional Bluetooth Remote. Note: This item is not included and sold separately. WiFi Switch ON/OFF the camera WiFi. For more information please refer to the WiFi Guide (page 21).

  • Page 21: Wifi Guide

    KBA12030 X4 User Guide WiFi Guide 1. Download the KB Action App from the AppleÒ App StoreÒ or Google PlayÔ Store. (Visit www.kaiserbaas.com/support for a direct link) 2. Switch on the WiFi from the Settings Menu (page 18). 3. Connect to the WiFi through your WiFi settings page on your smartphone.

  • Page 22: Battery Guide

    KBA12030 X4 User Guide Battery Guide Only use KB official batteries with this product. Never use any third party or unknown accessories or batteries. To charge the camera: 1. Insert the battery into the camera 2. Connect the USB Charging Cable to the Mini USB port located on the camera.

  • Page 23: Maintenance

    KBA12030 X4 User Guide Maintenance Adhere to these guidelines to ensure maximum performance and longevity. • Never use the camera in water without the waterproof case. The camera is not waterproof without the case. • If camera has been used in salt water ALWAYS rinse the waterproof case in fresh water to prevent corrosion.

  • Page 24: Faq

    KBA12030 X4 User Guide Camera What is the WiFi Password? The default password is: 1234567890 My camera has frozen Try to restart the camera by holding the power button or removing and reinserting the battery. Won’t read my MicroSD Card Make sure the MicroSD has been formatted.
  • Page 25 KBA12030 X4 User Guide Choppy Playback Choppy or slow playback is usually not a problem with the file. Check the following common solutions: • Your computer may not support the minimum requirements for HD playback. Try recording at a lower resolution and checking playback.

  • Page 26: Support

    KBA12030 X4 User Guide Support Having trouble with your camera? Don’t worry, our friendly support team can help. Please visit us at: www.kaiserbaas.com/support or send us an email at: helpdesk@kaiserbaas.com Regulatory Information To see the complete list of country compliance and certification, please visit...
