- Page 1 40” Built-in Electric Fireplace Operating and Installation Instructions This manual is for use with Furrion FF40S15A-BL 40” Built-in Electric Fireplace...

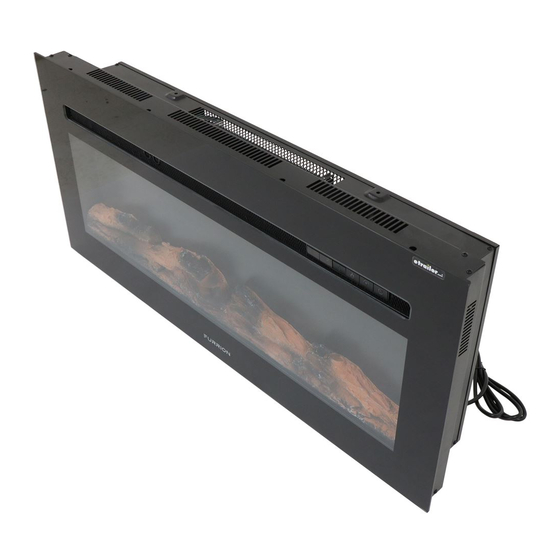

- Page 2 Welcome Furrion FF40S15A-BL 40” Built-in Electric Fireplace Thank you for purchasing a FF40S15A-BL 40” Built-in Electric Fireplace. SUITABLE FOR DOMESTIC HOUSEHOLD USE, RV’s & MODULAR HOMES Before installation and use, please read all instructions carefully. This will ensure safe use and reduce the risk of injury.
- Page 3 Contents IMPORTANT SAFETY INSTRUCTIONS ..........4-6 Installation ..................7-8 Operation ................... 9 Troubleshooting ................10 Care and maintenance & Warranty ..........11...
-
Page 4: Save These Instructions
IMPORTANT SAFETY INSTRUCTION PLEASE READ ALL OF THE INFORMATION IN THIS OPERATING MANUAL, INCLUDING ALL SAFETY, OPERATING, AND MAINTENANCE INFORMATION. TO AVOID THE POTENTIAL RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, USERS SHOULD FOLLOW THE DIRECTIONS AND WARNINGS IN THIS MANUAL. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS malfunctions or has been modify the plug provided dropped or damaged in any with the product. If it will not manner. Return the fireplace to fit the outlet, have a proper an authorized service facility outlet installed by a qualified for examination, electrical or electrician. -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 7 Installation First Time Use Remove the marketing sticker from the front glass. Marketing Sticker Installation 1. Remove the front glass assembly and place the unit into the cabinet. The height, width, and depth of the cabinet’s opening is outlined in the picture below.
-
Page 8: Installation
Installation 2. Secure the fireplace to the cabinet with the (4) supplied mounting screws. 3. Align the glass assemble into the grooves on the left and right sides of the unit and gently slide into place and secure the glass assembly to the fireplace body with the (4) supplied mounting screws. -
Page 9: Product Specifications
Operation Product Specifications Rating voltage 120Vac 60Hz AMPS 12.5A WATTS 1500W Control Panel Warning: This electric fireplace must be properly installed before it is used. Note: The element retains heat after shut down. There is a built-in cool down period of 30 seconds before the blower shuts off completely. Note: To operate correctly, the remote control must be pointed toward the control panel. -
Page 10: Operation
Operation & Troubleshooting Function Icon Description Pressing the button will cycle through the timer setting: Timer 30 minutes to 5 hours. Temperature Decrease the heat output (remote control only). down Temperature Increase the heat input (remote control only). Troubleshooting Problem Root cause Corrective action Unplug the fireplace and remove... -
Page 11: Troubleshooting
Troubleshooting & Care and Maintenance Problem Root cause Corrective action The slide out Overcurrent After the slide out stops, press moves and the protection has the power button to restart to the fireplace turns off been triggered. fireplace. automatically. Weak or defective Replace the remote batteries. - Page 12 FURRION.COM Furrion reserve the right to alter the information in this document without prior notice. Furrion shall not be liable for technical or editorial errors or omissions contained herein. IM- FF40S15A-BL REV.0...
