- Page 1 u HVI 1000 The fiber classification and analysis system Technical Data April 2015...

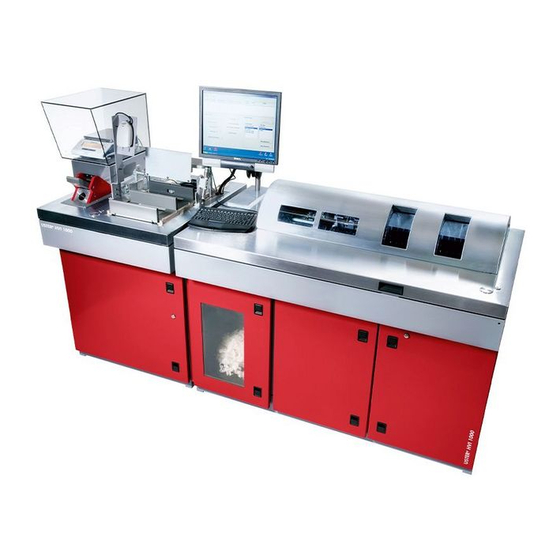

- Page 2 HVI 1000 measures the most important cotton fiber properties for cotton ® classing purposes, and high-throughput requirements for spinning mills. These are length, uniformity, short fiber index, micronaire, maturity index, strength, elongation, color and trash, and moisture content. Elements of the USTER HVI 1000 M 1000 installation ® Technical Data...
- Page 3 1 Length/Strength Module 2 Color Trash Module 3 Micronaire Module 4 Printer & printer table 5 Balance 6 Bar Code Reader (optional for USTER HVI 1000 M 700 ) ® 7 Length/strength cabinet 8 Micronaire, color and trash cabinet 9 Operating unit Optional Modules –...
-
Page 4: Basic Installation
– Length/Strength Module – Color Trash Module – Micronaire Module – Printer & printer table – Balance – Bar Code Reader (Optional for USTER HVI 1000 M 700 ) ® – Length/strength cabinet – Micronaire, color and trash cabinet – Application software –... -
Page 5: Minimal Configuration
( 8 ) Operating unit ( 9 ) Main Equipment: Length/strength cabinet, micronaire and color/trash cabinet Computer The USTER HVI 1000 software has a menu driven design that ® software: allows quick access and selection of testing, setup, calibration, and data management. -
Page 6: Optional Modules
USTER HVI 1000 ® The fiber classification and analysis system Optional Modules Bar Code Reader Functions: – Used for scanning the bar code identification, when (M 700 ) available, from bale tags which is used as bale identification in the data summary by the software... -
Page 7: Application Software
USTER HVI 1000 ® The fiber classification and analysis system Application software Reports Type of reports: – Individual and summary report – Histograms – Fibrogram curve – Stress/strain curve – Color chart – Calibration report Display and print- – Automatic reports out of the reports: –... -
Page 8: Application Range
USTER HVI 1000 ® The fiber classification and analysis system Backup: Data protection – A 2 nd hard disk (with identical storage capacity) is available for data and image backup purposes. – Backup software is provided for the user to create a backup image of the primary hard disk. - Page 9 USTER HVI 1000 ® The fiber classification and analysis system Calibration materials Naturally (white, cream) colored 100 % cotton samples in the form of bale or opened and cleaned material (card mat). Measurements – Micronaire – Maturity Index – UHML – Upper Half Mean Length –...
- Page 10 Uster Technologies recommends use of a de dicated conditioning system for the laboratory to achieve this condition. USTER does not recommend the use of any spray atomizers as they could result in damage to the instruments, variability in lab conditioning, and may cause inconsistent test results.
-
Page 11: Ups Requirements
UL listed for North America. – Run time of 10 minutes or greater. Entire system support (with vacuum blower) Uster Technologies does not offer the option to purchase a UPS to protect the entire USTER HVI 1000 system. -
Page 12: Compressed Air
Space required for The USTER HVI 1000 can be installed in an In-Line (straight) or an L-shaped configuration ® the Installation of and requires only one operator. The following is a breakdown of the individual cabinets... - Page 13 USTER HVI 1000 ® The fiber classification and analysis system M 1000 In-line 70 . 4 cm 134 . 9 cm 75 . 4 cm M 1000 L-shaped 134 . 9 cm 75 . 4 cm 70 . 4 cm 75 .
- Page 14 USTER HVI 1000 ® The fiber classification and analysis system M 700 In-line 70 . 4 cm 134 . 9 cm 75 . 4 cm M 700 L-shaped 134 . 9 cm 75 . 4 cm 70 . 4 cm 75 .
- Page 15 Uster Technologies has made all possible efforts to ensure that all information is accurate at the time of publication. Hereby it is declared that alterations to the product may be possible at any time. In these cases the information contained in this technical datasheet is subject to change without notice.
