Solstice SLS-ENVR2016 Series Quick Setup Manual

SLS-ENVR2016 Network Video Recorder V2.2.2 Quick Setup Guide
The SLS-ENVR2016 series NVR is an intelligent and compact appliance that provides a network interface
to monitor, record and playback video from up to 16 IP cameras. It is very easy to install and use.

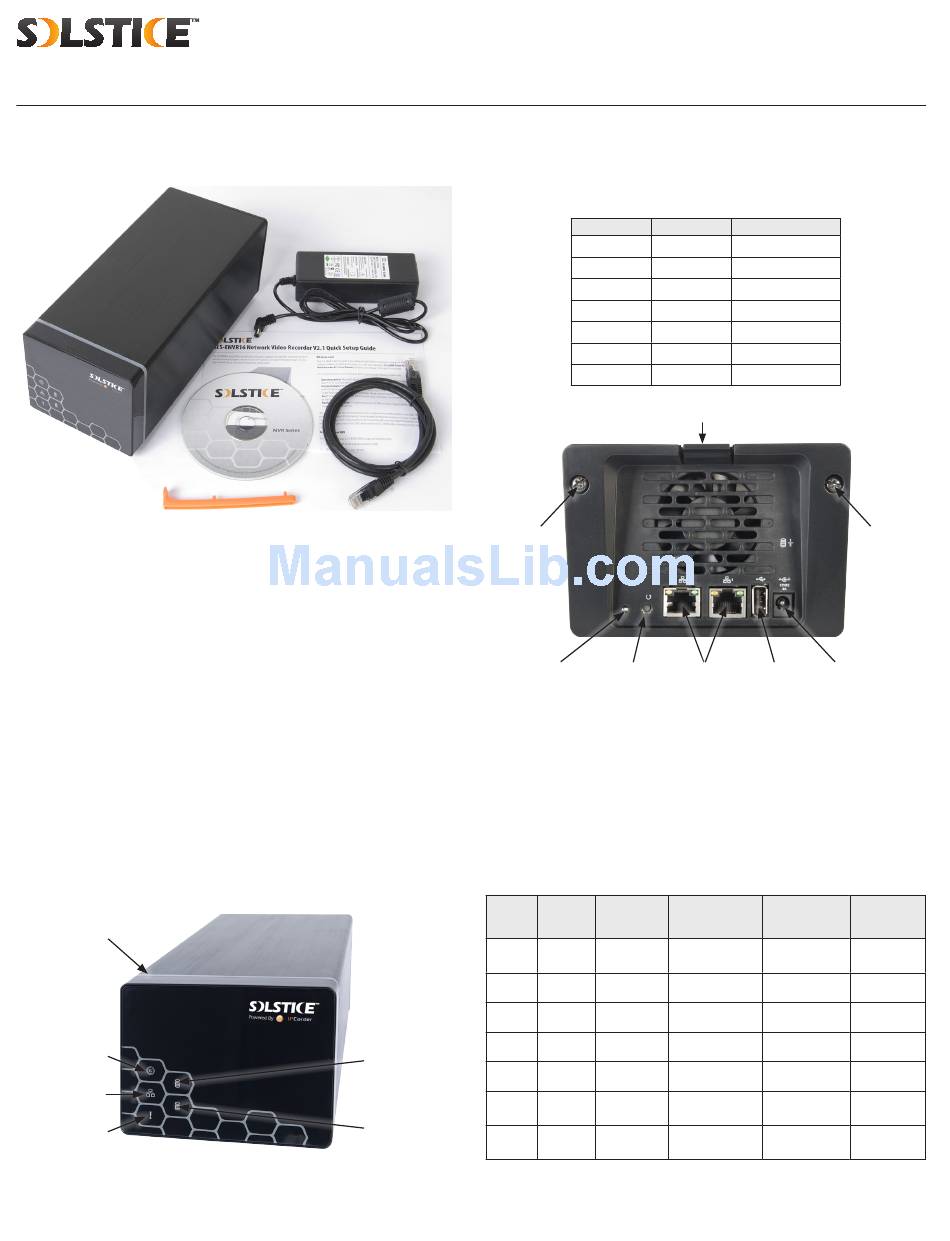

Your SLS-ENVR2016 product includes components shown in the picture below.
SLS-ENVR16 NVR
Software CD
HDD extractor
What you need
Your SLS-ENVR2016 NVR hardware is pre-configured with HDD(s). If you want to change the HDD or
configure it differently (RAID options, trays, etc.), refer to the document SLS-ENVR Series Network
Video Recorder V2.2.2 User Manual provided on the Software CD for specific instructions.
A PC is required to access and control your NVR. It must meet the following requirements:
Operating system: Microsoft® Windows® 2003, 2008, XP, Vista, 7 and 8 (32- and 64-bit versions);
•
Apple® OS X® 10.6, 10.7, 10.8; Linux with 2.6 kernel or newer (Oracle Java recommended)
Internet browser: Mozilla® Firefox® 17 ESR, 20 or newer; Internet Explorer® 8 (with performance
•
limitations, 32-bit version), 9, 10 (32-bit version); Google Chrome® 26 or newer; Apple Safari® 5.1 (on
Mac OS X only). JavaScript and cookies must be enabled.
Java™: Oracle® Java 6.0 or newer is required. The latest version of Oracle Java 7 is recommended.
•
MPEG4 and H.264 support for the viewer applet requires installation of native libraries to the client
•
computer. The libraries are automatically installed by the Java applet.
Client computer hardware configuration: Computer with 1GB RAM
•
The SLS-ENVR2016 allows the user to download videos and pictures from videos saved on a hard disk. The
pictures are in standard JPEG format and can be displayed in every standard picture browser. To play video,
install an FFDShow CODEC (download from http://www.freecodecs.com/download/FFDshow.htm) or similar
filter. Also, VLC player contains the CODEC necessary to play SLS-ENVR videos (download at http://www.
videolan.org).
NVR buttons and indicators
Light strip
Power LED
Network
activity LED
Information
LED
SLS-ENVR2016 front panel
1
Power adapter
with cable
Quick Setup
Guide
Ethernet
cable
Tray 1 HDD
active LED
Tray 2 HDD
active LED
Front panel LEDs indicate the following:
Network activity LED: Lights when the network cable is connected, blinks during network activity.
•
Tray 1, Tray 2 active LEDs: Blink when the HDD is accessed.
•
Power, Information LEDs: These LEDs function as a pair to indicate the status of the NVR. See the
•
table below.
Power LED Information LED
—
—
On
Off
Blinking
On
On
Retaining
screw
Control Control
button LED button
Use the connectors, indicators and switch on the back of the NVR as follows:
Control button LED: Indicates the usage state of the control button (see table below)
•
Control button: Pressing the Control button can affect the DVR in three different ways, depending
•
on how long the button is pressed. Pressing the button for less than 5 seconds signals a "short" press,
pressing the button for 5 ~ 10 seconds signals a "long" press, pressing the button for more than 15
seconds signals a "very long" press. The NVR reacts differently to these presses depending on the
status. See the table below.
Power Informa-
Status
LED tion LED
Power supply
— —
connect
— — Off
On Off Normal mode
Off On Rescue mode
Blinking Off Starting
Found by the
On Blinking
Discover utility
Fast Factory reset in
On
blinking progress
Status
— Power supply connect
— Off
Off Normal mode
On Rescue mode
Off Starting
Blinking Found by the Discover utility
Fast blinking Factory reset in progress
Tab latch
"2" "1"
Network USB Power
connectors (not used) connector
Back panel
Long press
Short press ( < 5 s)
(5 - 10s) (Control
(Control LED lights)
LED blinks)
Start Factory reset
Start Start
Rescue mode Shutdown
Normal mode Shutdown
SLS-ENVR2016-xT_2.2.2_RQ
Retaining
screw
Very long press
(> 15 s) (Control
LED blinks fast)
—
—
Hard shutdown
Hard shutdown
9/26/13
