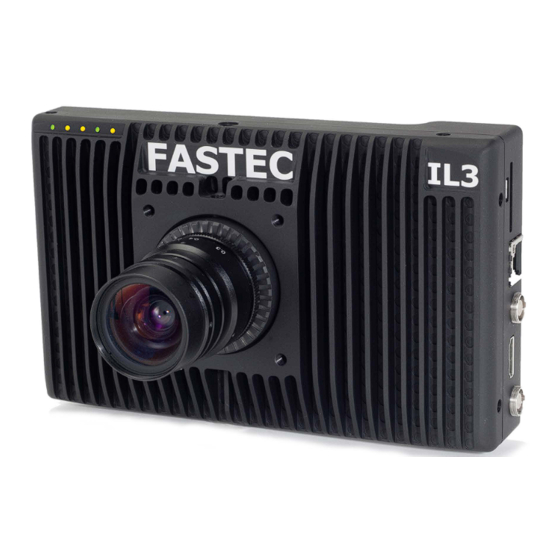

Fastec IL3 Quick Start Manual

Pc controlled digital high speed camera for slow motion

Hide thumbs Also See for IL3:

Table of Contents

Download this manual See also: Operator's Manual

Equipment

Unpack the camera and assemble the following:

1. IL3 / IL4 camera and power adapter with AC power cord

2. Lens: ILx ships with a C-Mount adapter installed unless otherwise specified

3. Software and documentation on USB Flash drive (included with camera)

4. CAT 5e or CAT 6 Ethernet cable

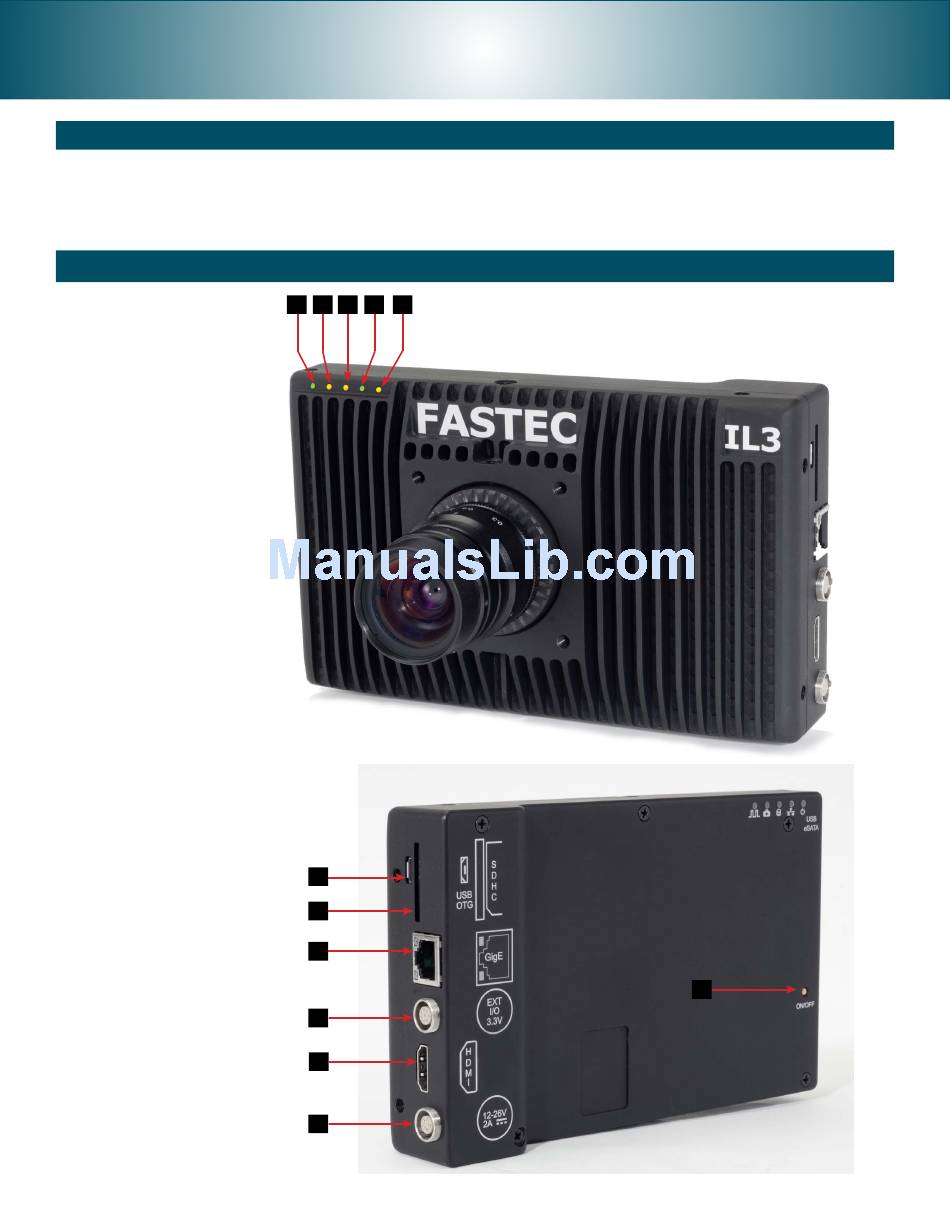

Figure 1: Camera Views

1. Power LED

2. Network Activity LED

3. Storage Activity LED

4. Camera Status LED

5. Sync Activity LED

1. USB OTG (Micro A/B)

2. SDHC (SD-Card slot)

3. GigE Port (RJ45)

4. Sync I/O, Trigger (Lemo)*

5. HDMI Port (Type A)

6. DC Power In (Lemo)**

7. On/Off button

*Warning: LVTTL 3.3v max

**10vdc to 26vdc

IL3 / IL4 Quick Start Guide

Table of Contents

Do you have a question about the IL3 and is the answer not in the manual?

Page 1 Equipment Unpack the camera and assemble the following: 1. IL3 / IL4 camera and power adapter with AC power cord 2. Lens: ILx ships with a C-Mount adapter installed unless otherwise specified 3. Software and documentation on USB Flash drive (included with camera) 4.
Page 2 FasMotion Camera Control Application Before you can begin setting up the ILx, you must first install the Fastec FasMotion Controller software on a Windows PC or Mac. The FasMotion software install program is available on the Fastec website, http://www.fastecimaging.com and is also copied onto the USB thumb drive that shipped with your ILx camera.
Page 3 Set Preferences: Long Recording Mode for IL4 The User Preferences dialog in FasMotion is used to set important camera functions: JPEG Quality, Default Gamma, Long Recording Mode, and Auto- download Metadata. To open User Preferences: 1. Connect to the ILx. (See instructions above.) 2.
Page 4 3. Select the “Save Type”--this would be AVI, DNG, BMP, JPEG, TIFF, or CAP file. 4. Click on “Save” to begin the transfer. Contact Information Fastec Imaging Corporation 17150 Via Del Campo, Ste. 301, San Diego, CA 92127 +1-858-592-2342 support@fastecimaging.com...
